| Product Name: | S-R ROTARY HYDRAULIC CYLINDER WITH SAFETY DEVICE | Material: | |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | Light/High Precision/Stable/High Quality |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | ROTARY HYDRAULIC CYLINDER WITH SAFETY DEVICE, S-R ROTARY HYDRAULIC CYLINDER |
||

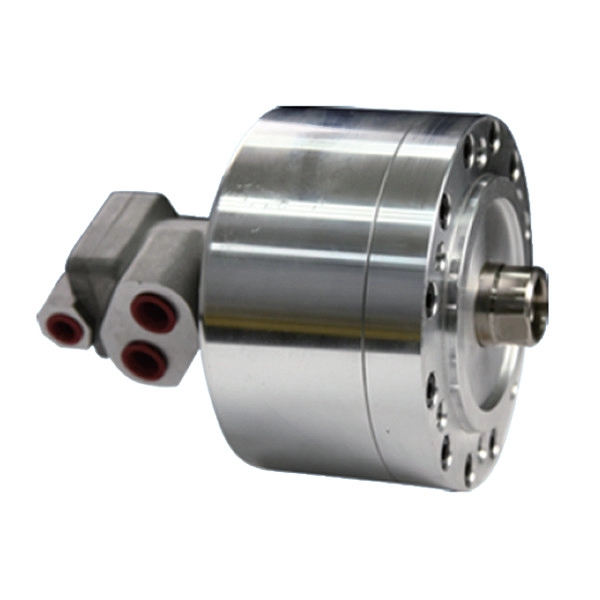

S-R ROTARY HYDRAULIC CYLINDER WITH SAFETY DEVICE
Brand:NTH
The rotary cylinder is the type of short form, light weight and high rotating speed.
The safety check valve and pressure relief valve are built in the cylinder.
The drain port should be independently connected to oil tank to avoid back pressure.
Production Catalogue Download:S-R ROTARY HYDRAULIC CYLINDER WITH SAFETY DEVICE.p...
(unit: mm)
Spec/ Model | Piston area cm2 | Piston area cm2 | Piston stroke | Max RPM | Max.Operating Pressure | Inertia moment | Weight kg |
| S-65R | 31 | 27.9 | 15 | 6000 | 3.5(35) | 0.01 | 2.9 |
| S-80R | 47.7 | 42.8 | 15 | 6000 | 3.5(35) | 0.01 | 3.4 |
| S-100R | 75.4 | 70.5 | 20 | 5500 | 3.5(35) | 0.04 | 4.9 |
| S-125R | 119.6 | 112.5 | 25 | 5500 | 3.5(35) | 0.08 | 6.8 |
| S-150R | 173.6 | 157.7 | 30 | 4000 | 4.0(40) | 0.18 | 11.5 |
| S-200R | 310 | 286.3 | 35 | 4000 | 4.0(40) | 0.38 | 20.4 |

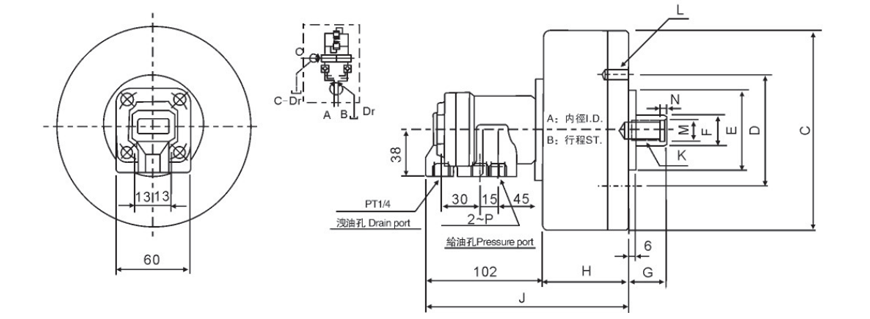

Spec/ Model | A | B | C | D | E H7 | F | G Max | G Min | H | J | K | L | M H8 | N | P |
| S-65R | 65 | 15 | 98 | 80 | 60 | 22 | 45 | 30 | 74 | 175 | M12×30 | 6~M8×16 | - | - | PT3/8 |
| S-80R | 80 | 15 | 112 | 90 | 65 | 25 | 45 | 30 | 74 | 175 | M16×30 | 6~M8×16 | - | - | PT3/8 |
| S-100R | 100 | 20 | 135 | 100 | 80 | 25 | 45 | 25 | 89 | 190 | M20×30 | 6~M10×20 | - | - | PT3/8 |
| S-125R | 125 | 25 | 160 | 130 | 110 | 30 | 50 | 25 | 96 | 197 | M24×44 | 6~M12×20 | - | - | PT3/8 |
| S-150R | 150 | 30 | 190 | 130 | 110 | 45 | 55 | 25 | 105 | 206 | M30×45 | 12~M12×24 | 31 | 5 | PT1/2 |
| S-200R | 200 | 35 | 245 | 145 | 120 | 55 | 70 | 35 | 130 | 231 | M36×60 | 12~M16×30 | 37 | 5 | PT1/2 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
