| Product Name: | S NON-THROUGH HOLE ROTARY HYDRAULIC CYLINDER | Material: | Driving Chucks Working |
|---|---|---|---|
| Function: | Light/High Precision/Stable/High Quality | Feature: | Refer To The Specification |
| Usage: | ODM/OEM Is Available | Service: | |
| Highlight: | NON-THROUGH HOLE ROTARY HYDRAULIC CYLINDER, S HOLE ROTARY HYDRAULIC CYLINDER |
||

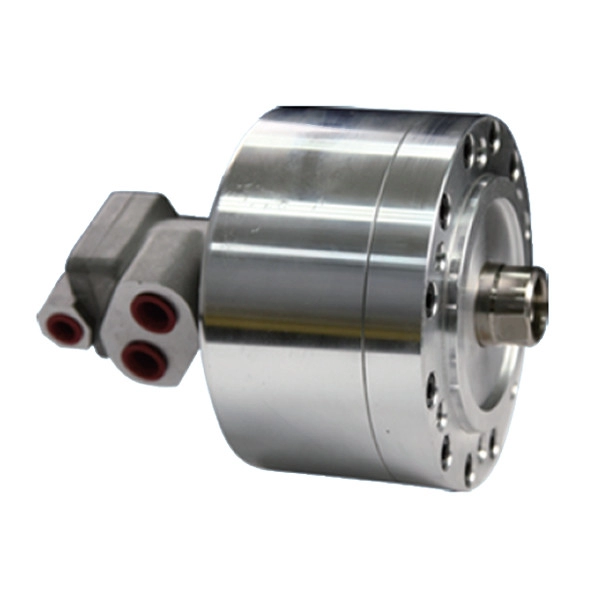

S NON-THROUGH HOLE ROTARY HYDRAULIC CYLINDER
Brand:NTH
The rotary valve and cylinder body, all made of light alloy, light weight.
The inside bearing of the rotary valve can be get lubricated and cooled sufficiently and endure high speed rotary for longer service life.
The drain port should be independently connected to oil tank to avoid back pressure.
Production Catalogue Download:S NON-THROUGH HOLE ROTARY HYDRAULIC CYLINDER.pdf
(unit: mm)
| Spec/Model | Piston area cm2 Extend | Piston area cm2 Retract |
stroke | Max RPM | Max.Operating Pressure Mpa(kgf/cm2) | Inertia moment kg*m2 | Weight kg |
| S-65 | 31 | 27.9 | 15 | 6000 | 3.5(35) | 0.01 | 2.9 |
| S-80 | 47.7 | 42.8 | 15 | 6000 | 3.5(35) | 0.01 | 3.4 |
| S-100 | 75.4 | 70.5 | 20 | 5500 | 3.5(35) | 0.04 | 4.9 |
| S-125 | 119.6 | 112.5 | 25 | 5500 | 3.5(35) | 0.08 | 6.8 |
| S-150 | 173.6 | 157.7 | 30 | 4000 | 4.0(40) | 0.18 | 11.5 |
| S-200 | 310 | 286.3 | 35 | 4000 | 4.0(40) | 0.38 | 20.4 |

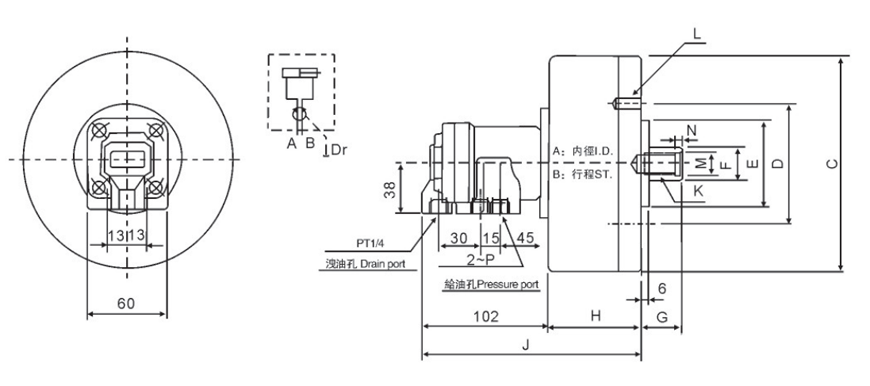

| Spec /Model | A | B | C | D | E H7 | F | G Max | G Min | H | J | K | L | M H8 | N | P |
| S-65 | 65 | 15 | 98 | 80 | 60 | 22 | 45 | 30 | 74 | 175 | M12×30 | 6~M8×16 | - | - | PT3/8 |
| S-80 | 80 | 15 | 112 | 90 | 65 | 25 | 45 | 30 | 74 | 175 | M16×30 | 6~M8×16 | - | - | PT3/8 |
| S-100 | 100 | 20 | 135 | 100 | 80 | 25 | 45 | 25 | 89 | 190 | M20×30 | 6~M10×20 | - | - | PT3/8 |
| S-125 | 125 | 25 | 160 | 130 | 110 | 30 | 50 | 25 | 96 | 197 | M24×44 | 6~M12×20 | - | - | PT3/8 |
| S-150 | 150 | 30 | 190 | 130 | 110 | 45 | 55 | 25 | 105 | 206 | M30×45 | 12~M12×24 | 31 | 5 | PT1/2 |
| S-200 | 200 | 35 | 245 | 145 | 120 | 55 | 70 | 35 | 130 | 231 | M36×60 | 12~M16×30 | 37 | 5 | PT1/2 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
