| Product Name: | Cast Steel N-200 3 Jaw Through Hole Power Chuck | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/High Quality | |
| Usage: | Gripping/Fixture | Service: | OEM/ODM Is Acceptable |
| Highlight: | 3 Jaw Power Chuck, Cast Steel Power Chuck, Through Hole Power Chuck |
||

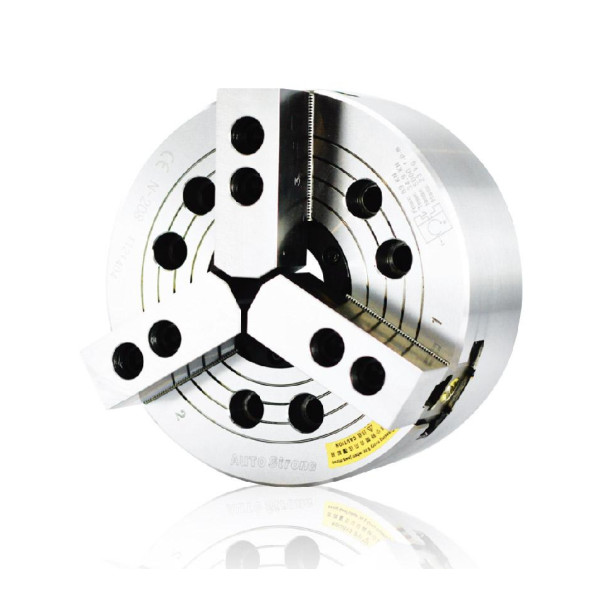

Cast Steel N-200 3 Jaw Through Hole Power Chuck
Brand:NTH
Easy to mount.
Suitable for long bore or special workpiece.
Can be equipped with automatic feeder to increase productivity.
Can be equipped with back gauge.
Replaceable for Japanese brands.
The draw nut is customizable.(consult with sales)
Standard product 6~10" made of high strength alloy steel SCM440 from Japan
Above 21 inches are made of FCD600.
Sliding surfaces, master jaws, and interior parts are hardening and grinding
Quick replace cover
(unit: mm)
| Model/size | Through
hole Dia. | Piston Stroke | Jaw stroke Dia | Max Pull Force | Max gripping force | Max Operating Hydraulic Pressure | Max. RPM (r.p.m.) |
| N-204 | Ø26 | 10 | 5.4 | 1428 | 2906 | 31.6 | 8000 |
| N-205 | Ø33 | 10 | 5.4 | 1784 | 3671 | 28.5 | 7000 |
| N-206 | Ø45 | 12 | 5.5 | 2243 | 5812 | 28.5 | 6000 |
| N-208 | Ø52 | 16 | 7.4 | 3558 | 9075 | 26.5 | 5000 |
| N-210 | Ø75 | 19 | 8.8 | 4385 | 11319 | 27.5 | 4200 |
| N-212 | Ø91 | 23 | 10.6 | 5812 | 14990 | 27.5 | 3300 |
| N-215 | Ø117.5 | 23 | 10.6 | 7240 | 18355 | 23.5 | 2500 |
| N-218 | Ø117.5 | 23 | 10.6 | 7240 | 18355 | 23.5 | 2000 |
| N-220 | Ø180 | 23 | 10.6 | 9177 | 23861 | 30.6 | 1800 |
| N-224 | Ø205 | 26 | 12 | 9177 | 23861 | 26.5 | 1400 |
| N-232 | Ø230 | 34 | 18 | 10197 | 24472 | 29.5 | 1200 |
| Model | Weight (kg) | Inertia I(kg‧m2) | Matched cylinder | Matched HJ | Matched SJ | Gripping Range O.D (mm) |
| N-204 | 4 | 0.007 | M0928 | HJ05 | HC04 | Ø4-Ø110 |
| N-205 | 7 | 0.018 | M1036 | HJ05 | HC05 | Ø6-Ø135 |
| N-206 | 13.5 | 0.057 | M1246 | HJ06 | HC06 | Ø15-Ø169 |
| N-208 | 23 | 0.17 | M1552 | HJ08 | HC08 | Ø20-Ø210 |
| N-210 | 35 | 0.315 | M1875 | HJ10 | HC10 | Ø25-Ø254 |
| N-212 | 56.5 | 0.737 | M2091 | HJ12 | HC12 | Ø30-Ø304 |
| N-215 | 111 | 2.27 | M2511 | HJ15 | HC15 | Ø50-Ø381 |
| N-218 | 131 | 3.55 | M2511 | HJ15 | HC15 | Ø50-Ø450 |
| N-220 | 190 | 6.5 | ML2816 | HJ24-1 | HC24-1 | Ø120-Ø510 |
| N-224 | 270 | 14.8 | ML3320 | HJ24-1 | HC-24-1 | Ø150-Ø610 |
| N-232 | 470 | 41 | ML3320 | HJ24-1 | HC24-1 | Ø210-Ø800 |

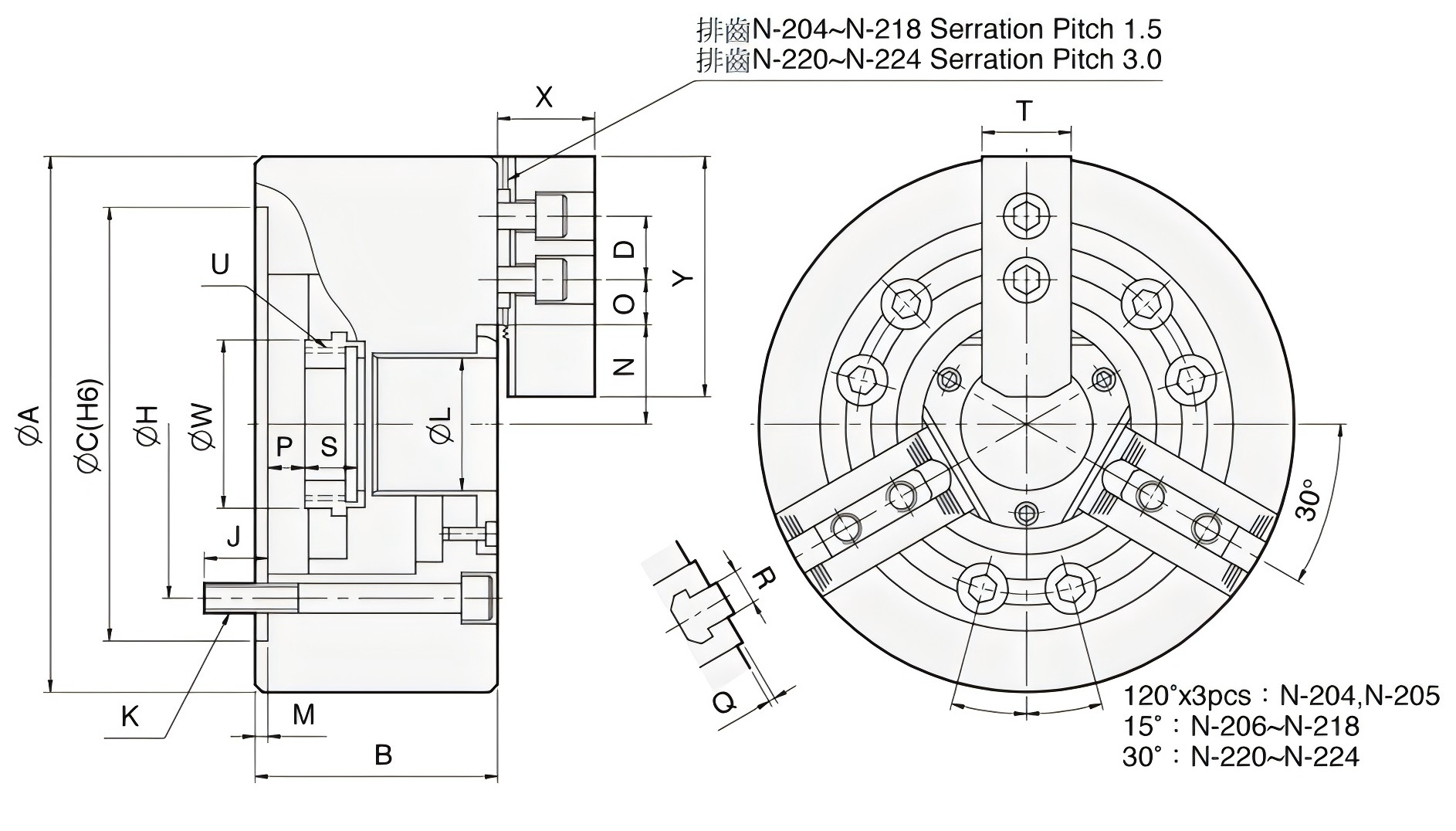

| Model/size | A | B | C(H6) | D | H | J | K | L | M | N | O |
| N-204 | 110 | 59 | 85 | 14 | 70.6 | 16 | 3-M10x60 | 26 | 4 | 23.2 | 13.75 |
| N-205 | 135 | 60 | 110 | 14 | 82.55 | 15 | 3-M10x60 | 33 | 4 | 26.5 | 19.75 |
| N-206 | 169 | 81 | 140 | 20 | 104.78 | 16 | 6-M10x80 | 45 | 5 | 32 | 22.75 |
| N-208 | 210 | 91 | 170 | 25 | 133.35 | 20 | 6-M12x90 | 52 | 5 | 38.7 | 29.75 |
| N-210 | 254 | 100 | 220 | 30 | 171.45 | 22 | 6-M16x100 | 75 | 5 | 51 | 33.75 |
| N-212 | 304 | 110 | 220 | 30 | 171.45 | 23 | 6-M16x110 | 91 | 6 | 61.3 | 45.75 |
| N-215 | 381 | 133 | 300 | 43 | 235 | 35 | 6-M20x135 | 117.5 | 6 | 82 | 45.25 |
| N-218 | 450 | 133 | 300 | 43 | 235 | 35 | 6-M20x135 | 117.5 | 6 | 82 | 79.75 |
| N-220 | 510 | 134 | 380 | 60 | 330.2 | 35 | 6-M24x135 | 180 | 6 | 112.5 | 60.5 |
| N-224 | 610 | 147 | 520 | 60 | 463.6 | 35 | 6-M24x150 | 205 | 6 | 139.9 | 87.5 |
| N-232 | 800 | 150 | 520 | 60 | 463.6 | 35 | 6-M24x150 | 230 | 6 | 162 | 153.5 |
| Model | O | P | P | Q | R | S | T | U | W | X | Y |
| N-204 | 6.75 | 3.5 | -6.5 | 2 | 10 | 17.5 | 23 | M32x1.5 | 38 | 24 | 49.5 |
| N-205 | 7.75 | 1 | -9 | 2 | 10 | 20 | 25 | M40x1.5 | 45 | 31 | 54 |
| N-206 | 9.25 | 11 | -1 | 2 | 12 | 19 | 31 | M55x2 | 60 | 37 | 73 |
| N-208 | 11.75 | 14.5 | -1.5 | 2 | 14 | 20.5 | 35 | M60x2 | 66 | 38 | 95 |
| N-210 | 14.25 | 8.5 | -10.5 | 2 | 16 | 25 | 40 | M85x2 | 94 | 43 | 110 |
| N-212 | 15.75 | 8 | -15 | 2 | 21 | 28 | 50 | M100x2 | 108 | 51 | 130 |
| N-215 | 15.25 | 7 | -16 | 5 | 22 | 43 | 62 | M130x2 | 139 | 66 | 165 |
| N-218 | 15.25 | 7 | -16 | 5 | 22 | 43 | 62 | M130x2 | 139 | 66 | 165 |
| N-220 | 24.5 | 11 | -12 | 5 | 25 | 38 | 65 | M190x3 | 206 | 73 | 180 |
| N-224 | 24.5 | 16 | -10 | 5 | 25 | 38 | 65 | M215x3 | 230 | 73 | 180 |
| N-232 | 24.5 | 16 | -18 | 5 | 25 | 38 | 64 | M250x3 | 262 | 73 | 180 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
