| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Auto Strong |
| Model Number: | NL-06A5,NL-08A6,NL-10A8, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |

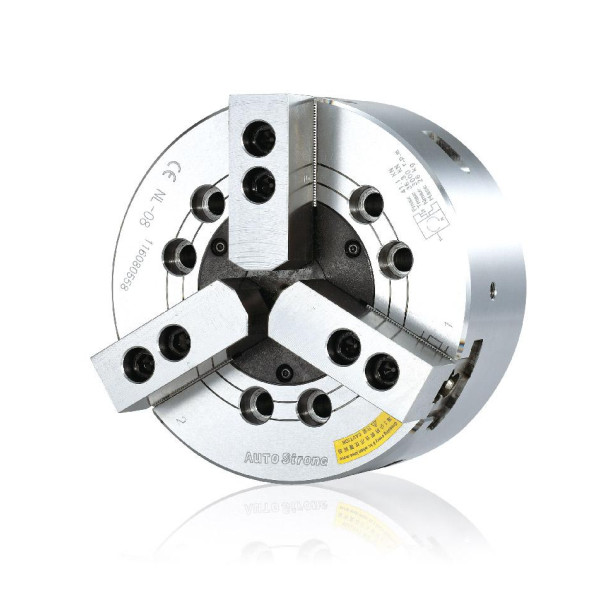

| Product Name: | 3 Jaw Long Stroke Through Hole Power Chuck (adapter Excluded) | Material: | Cast Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | auto strong chucks,auto strong lathe chuck |
||
CRANK structure N type extra long stroke.
High-strength alloy, all sliding surfaces are hardening and grinding.
Can clamp over workpieces will extremely uneven surface.
The installation is the same as N type chuck replaceable change.
UNIT : mm
| SPEC Model |
Through-Hole (mm) |
Plunger Stroke (mm) |
Jaw stroke (In Dia.) (mm) |
Max.Pull Force (kn) |
Max.Gripping Force (kn) |
Max.Operating Pressure (kgf/cm2) |
|---|---|---|---|---|---|---|
| NL-06A5 | Ø40 | 15 | 24 | 2243 | 2651 | 28.5 |
| NL-08A6 | Ø48 | 20 | 32 | 3701 | 4190 | 27.5 |
| NL-10A8 | Ø66 | 25 | 37.5 | 4853 | 5506 | 29.5 |
| SPEC Model |
Max.Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I(kg‧m2) |
Matching Cylinder |
Matching Hard Jaw |
Matching Soft Jaw |
Gripping O.D. Range (mm) |
|---|---|---|---|---|---|---|---|
| NL-06A5 | 3600 | 14.8 | 0.065 | M1246 | HJ06 | HC06 | Ø35-Ø168 |
| NL-08A6 | 3000 | 28 | 0.21 | M1552 | HJ08 | HC08 | Ø50-Ø215 |
| NL-10A8 | 2400 | 43.5 | 0.39 | M1875 | HJ10 | HC10 | Ø55-Ø256 |

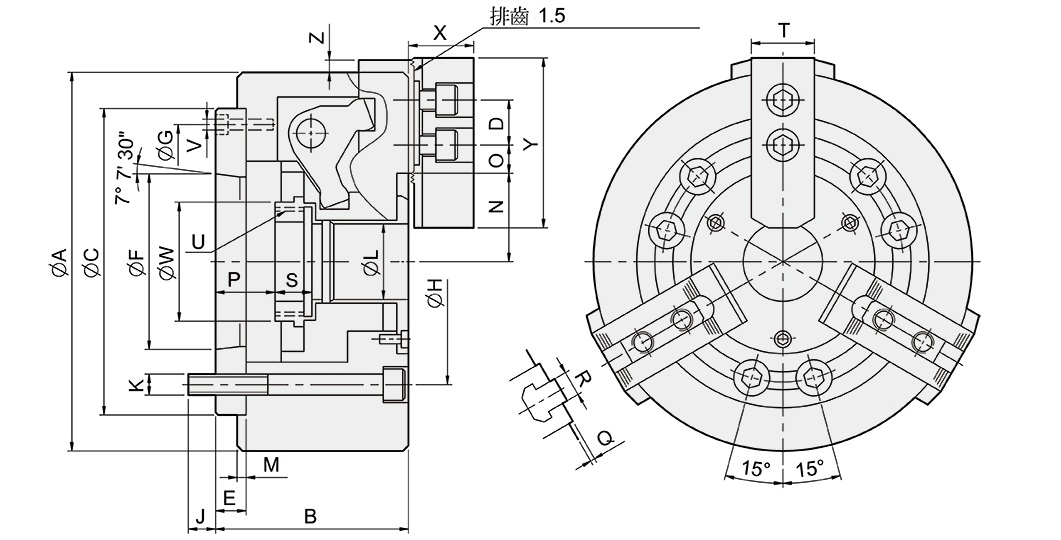

| DIM Model |
A | B | C(H6) | D | E | F | G | H | J | K | L | M | Nmax. | Omax. | Omin. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NL-06A5 | 168 | 96 | 140 | 20 | 15 | 82.563 | 116 | 104.78 | 16 | 6-M10 | 40 | 5 | 49 | 16.75 | 7.75 |
| NL-08A6 | 215 | 112 | 170 | 25 | 17 | 106.375 | 150 | 133.35 | 18 | 6-M12 | 48 | 5 | 60.5 | 20.75 | 11.75 |
| NL-10A8 | 256 | 125 | 220 | 30 | 18 | 139.719 | 190 | 171.45 | 24 | 6-M16 | 66 | 5 | 74.5 | 24.75 | 11.25 |
| DIM Model |
Pmax. | Pmin. | Q | R | S | T | Umax. | V | W | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NL-06A5 | 26 | 11 | 2 | 12 | 19 | 31 | M55x2 | 3xM6 | 60 | 37 | 73 | 10 |
| NL-08A6 | 31.5 | 11.5 | 2 | 14 | 20.5 | 35 | M60x2 | 3xM6 | 66 | 38 | 95 | 10 |
| NL-10A8 | 26.5 | 1.5 | 2 | 16 | 25 | 40 | M85x2 | 3xM8 | 94 | 43 | 110 | 12.5 |
