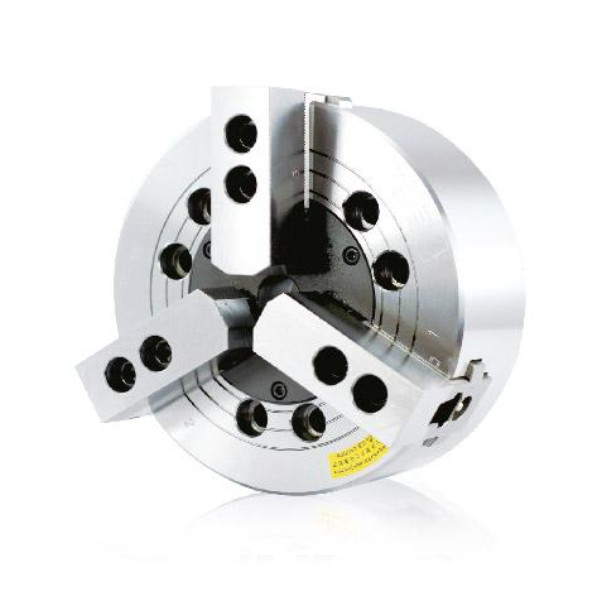

V Series 3 jaw wedge type non through hole power chuck (adapter included)

V Series 3 jaw wedge type non through hole power chuck (adapter included)
V Series 3 jaw wedge type non through hole power chuck (adapter included)
Basic Information
Place of Origin: CHINA
Brand Name: Auto Strong
Model Number: V-206A5,V-206A6,V-208A5,V-208A6,V-208A8,V-210A6, etc
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Contact Now
Product Name: 3 Jaw Wedge Type Non Through Hole Power Chuck (adapter Excluded) Material: Cast Steel
Usage: Gripping/Fixture Feature: High Precision/High Quality
Size: Refer To The Specification Service: OEM/ODM Is Acceptable
High Light:

auto strong lathe chuck

,

strong chucks

3 jaw wedge type non through hole power chuck (adapter included)

High performance :
Similar high performance with N series.
Chuck mounting screws :
Metric or UNC socket head cap screws are supplied for installing the chuck to the spindle.
Alternative spindle adaptors :
ASA or DIN adaptors can be supplied as requested.



V Series 3 jaw wedge type non through hole power chuck (adapter included) 0

UNIT : mm

SPEC
Model

 Plunger Stroke
(mm)		 Jaw Stroke
(In Dia.)
(mm)		 Max.Pull
Force
(kn)		 Max.Gripping
Force
(kn)		 Max.Operating
Pressure
(kgf/cm2)		 Max.Speed
(r.p.m.)
V-206A5 20 9.2 1835 5353 26.5 5200
V-206A6 20 9.2 1835 5353 26.5 5200
V-208A5 21 9.7 2549 7648 25.5 4500
V-208A6 21 9.7 2549 7648 25.5 4500
V-208A8 21 9.7 2549 7648 25.5 4500
V-210A6 25 8.8 2957 11013 28.6 4000
V-210A8 25 8.8 2957 11013 28.6 4000
V-210A11 25 8.8 2957 11013 28.6 4000
V-212A6 30 10.5 4181 15907 27.5 3300
V-212A8 30 10.5 4181 15907 27.5 3300
V-212A11 30 10.5 4181 15907 27.5 3300
V-215A8 35 16 8362 25391 32.6 3000
V-215A11 35 16 8362 25391 32.6 3000
V-215A15 35 16 8362 25391 32.6 3000
V-218A8 35 16 8362 25391 32.6 2700
V-218A11 35 16 8362 25391 32.6 2700
V-218A15 35 16 8362 25391 32.6 2700



SPEC
Model		 Weight
(kg)		 Moment
Of Inertia
I(kg‧m2)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw
Gripping
O.D. Range
(mm)
V-206A5 13.2 0.05 MS105C HJ06 HC06 Ø18-Ø165
V-206A6 15.8 0.059 MS105C HJ06 HC06 Ø18-Ø165
V-208A5 25.8 0.154 MS125C HJ08 HC08 Ø26-Ø210
V-208A6 25 0.149 MS125C HJ08 HC08 Ø26-Ø210
V-208A8 19.3 0.175 MS125C HJ08 HC08 Ø26-Ø210
V-210A6 40.5 0.35 MS125C HJ10 HC10 Ø26-Ø254
V-210A8 37.5 0.33 MS125C HJ10 HC10 Ø26-Ø254
V-210A11 47.9 0.417 MS125C HJ10 HC10 Ø26-Ø254
V-212A6 66.5 0.76 MS150C HJ12-1 HC12-1 Ø26-Ø304
V-212A8 64.4 0.75 MS150C HJ12-1 HC12-1 Ø26-Ø304
V-212A11 72.9 0.888 MS150C HJ12-1 HC12-1 Ø26-Ø304
V-215A8 115 2.05 MS200C HJ15-1 HC15-1 Ø68-Ø381
V-215A11 108 1.92 MS200C HJ15-1 HC15-1 Ø68-Ø381
V-215A15 128 2.281 MS200C HJ15-1 HC15-1 Ø68-Ø381
V-218A8 134 3.35 MS200C HJ15-1 HC15-1 Ø130-Ø450
V-218A11 122 3.05 MS200C HJ15-1 HC15-1 Ø130-Ø450
V-218A15 143 3.575 MS200C HJ15-1 HC15-1 Ø130-Ø450

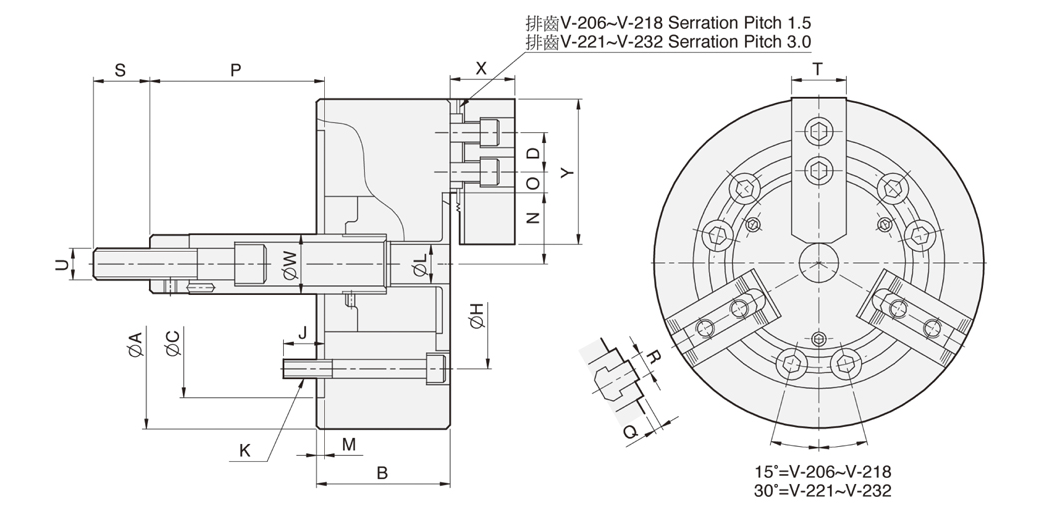

DIM
Model		 A B C(H6) D E F G H J K L M Nmax. Omax. Omin.
V-206A5 165 84 140 20 15 82.563 116 104.78 14 6-M10 21 5 38.7 14.75 7.25
V-206A6 165 104 140 20 35 106.375 104.78 133.35 16 6-M10 21 5 38.7 14.75 7.25
V-208A5 210 103 170 25 23 82.563 133.35 104.78 13 6-M12 25 5 46.85 22.25 10.25
V-208A6 210 97 170 25 17 106.375 150 133.35 18 6-M12 25 5 46.85 22.25 10.25
V-208A8 210 120 170 25 40 139.719 133.35 171.45 24 6-M12 25 5 46.85 22.25 10.25
V-210A6 254 109 220 30 25 106.375 171.45 133.35 18 6-M16 34 5 51.1 30.75 11.25
V-210A8 254 102 220 30 18 139.719 190 171.45 25 6-M16 34 5 51.1 30.75 11.25
V-210A11 254 134 220 30 50 196.869 171.45 235 28 6-M16 34 5 51.1 30.75 11.25
V-212A6 304 125 220 30 25 106.375 171.45 133.35 18 6-M16 34 6 61 48.75 12.75
V-212A8 304 118 220 30 18 139.719 190 171.45 25 6-M16 34 6 61 48.75 12.75
V-212A11 304 150 220 30 50 196.869 171.45 235 28 6-M16 34 6 61 48.75 12.75
V-215A8 381 141 300 430 33 139.719 235 171.45 24 6-M20 – 6 77.5 50.25 23.25
V-215A11 381 130 300 43 22 196.869 260 235 32 6-M20 – 6 77.5 50.25 23.25
V-215A15 381 165 300 43 57 285.775 235 330.2 24 6-M20 – 6 77.5 50.25 23.25
V-218A8 450 141 300 43 33 139.719 235 171.45 24 6-M20 – 6 108 50.25 23.25
V-218A11 450 130 300 43 22 196.869 260 235 32 6-M20 – 6 108 50.25 23.25
V-218A15 450 165 300 43 57 285.775 235 330.2 24 6-M20 – 6 108 50.25 23.25



DIM
Model		 Pmax. Pmin. Q R S T Umax. V W X Y Reference
V-206A5 89.6 69.6 4 12 36 31 M16x2.0 3-M6 34 39 73 Fig1
V-206A6 69.6 49.6 4 12 36 31 M16x2.0 6-M12 34 39 73 Fig3
V-208A5 109 88 5 14 36 35 M20x2.5 3-M6 38 41 95 Fig2
V-208A6 115 94 5 14 36 35 M20x2.5 6-M16 38 41 95 Fig1
V-208A8 92 71 5 14 36 35 M20x2.5 6-M12 38 41 95 Fig3
V-210A6 133 108 5 16 36 40 M20x2.5 6-M12 45 46 110 Fig2
V-210A8 140 115 5 16 36 40 M20x2.5 3-M8 45 46 110 Fig1
V-210A11 108 83 5 16 36 40 M20x2.5 6-M20 45 46 110 Fig3
V-212A6 138 108 5 18 36 50 M20x2.5 6-M12 50 54 130 Fig2
V-212A8 145 115 5 18 36 50 M20x2.5 3-M8 50 54 130 Fig1
V-212A11 113 83 5 18 55 50 M20x2.5 6-M20 50 54 130 Fig3
V-215A8 71 36 2 25.5 55 62 M30x3.5 6-M16 60 63 165 Fig2
V-215A11 82 47 2 25.5 55 62 M30x3.5 3-M10 60 63 165 Fig1
V-215A15 47 12 2 25.5 55 62 M30x3.5 6-M24 60 63 165 Fig3
V-218A8 59 25 2 25.5 55 62 M30x3.5 6-M16 60 63 165 Fig2
V-218A11 70 35 2 25.5 55 62 M30x3.5 3-M10 60 63 165 Fig1
V-218A15 35 0 2 25.5 55 62 M30x3.5 6-M24 60 63 165 Fig3
