| Product Name: | Gripping And Fixture KA 3 Jaw Strong Scroll Chuck Cast Steel | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/High Quality | |
| Usage: | Gripping/Fixture | Service: | OEM/ODM Is Acceptable |
| Highlight: | Cast Steel Strong Scroll Chuck, 3 Jaw Strong Scroll Chuck, Gripping Strong Scroll Chuck |
||

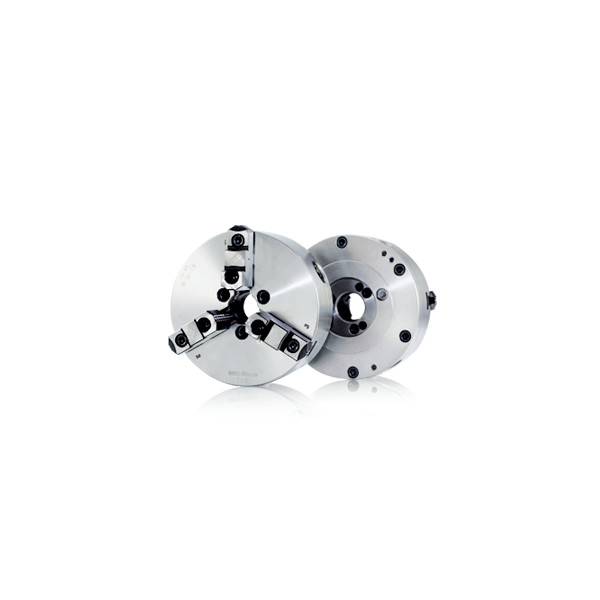

Gripping And Fixture KA 3 Jaw Strong Scroll Chuck Cast Steel
Brand:NTH
Gripping accuracy of 0.03mm (0.0012 inch) T.I.R..
Standard accessories chuck wrench, hex. key. and a set of mounting bolts. (UNC-bolts)
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
(unit: mm)

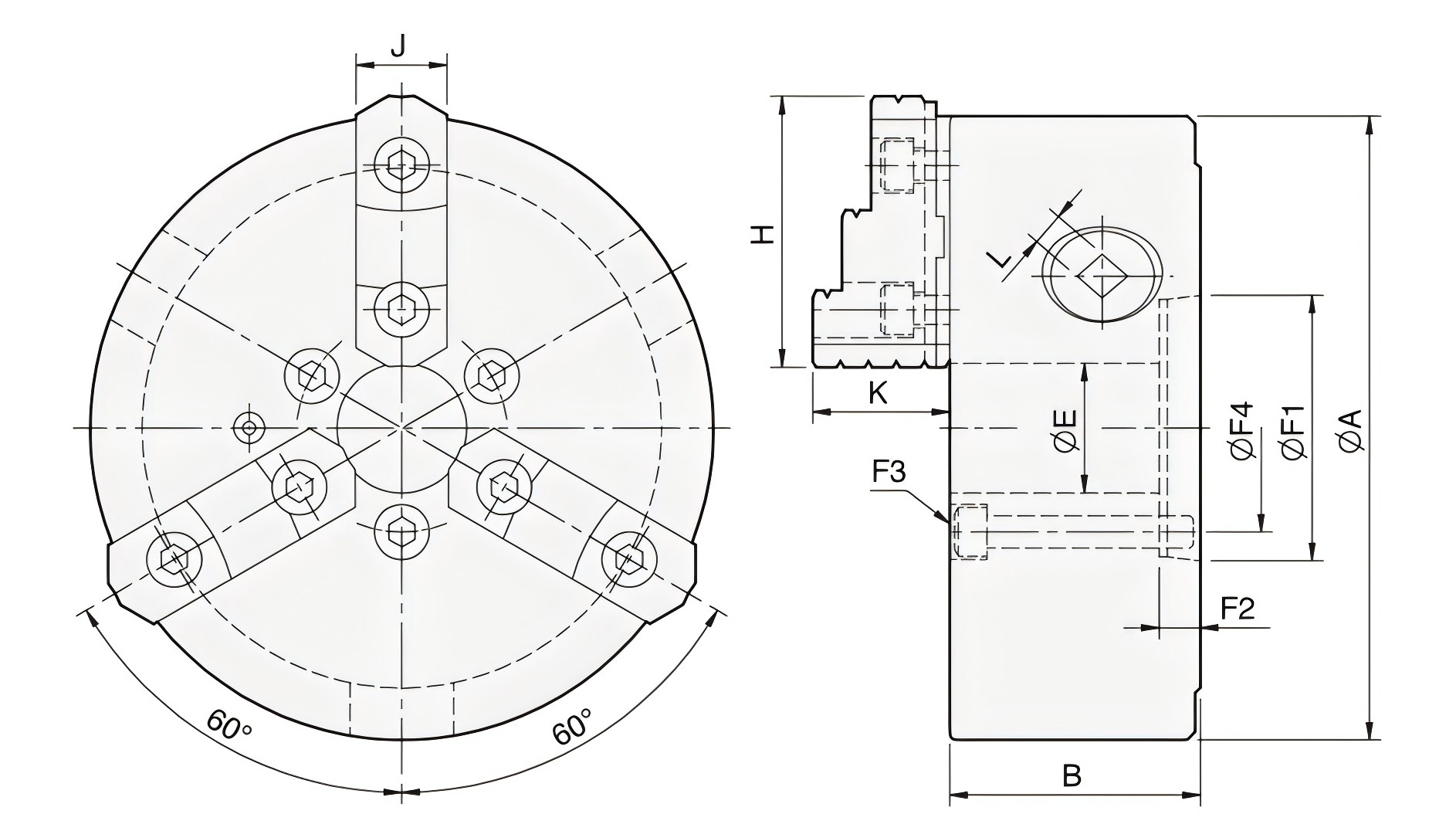

| Model/size | Spindle shape taper | A | B | E | H | J | K | L | Installing size F1 / F2 / F3 / F4 |
| KA5-8" | A1-5 | 200 | 77.2 | 40 | 81.2 | 28 | 42.2 | 11 | 82.563 / 14.288 / 3-M10 / 61.9 |
| KA6-8" | A1-6 | 200 | 77.2 | 53 | 81.2 | 28 | 42.2 | 11 | 106.375 / 15.875 / 3-M12 / 82.6 |
| KA6-10" | A1-6 | 250 | 86 | 53 | 90.9 | 32 | 50.8 | 12 | 106.375 / 15.875 / 3-M12 / 82.6 |
| KA6-12" | A1-6 | 306 | 107.5 | 53 | 114.5 | 40 | 57.8 | 14 | 106.375 / 15.875 / 3-M12 / 82.6 |
| KA8-12" | A1-8 | 306 | 107.5 | 77 | 114.5 | 40 | 57.8 | 14 | 139.719 / 17.462 / 6-M16 / 111.1 |
| Model/size | Handle power force (kgf‧m) | Gripping force (kgf) | Max. RPM (r.p.m.) | Weight (kg) | Inertia (kg‧m2) | Gripping range OD/ID |
| KA5-8" | 11 | 2500 | 2000 | 18 | 0.07 | Ø8-Ø180 / Ø62-Ø170 |
| KA6-8" | 11 | 2500 | 2000 | 18 | 0.07 | Ø8-Ø180 / Ø62-Ø170 |
| KA6-10" | 19 | 4000 | 1800 | 29.5 | 0.2 | Ø11-Ø220 / Ø70-Ø210 |
| KA6-12" | 21 | 4200 | 1800 | 47 | 0.5 | Ø15-Ø300 / Ø90-Ø290 |
| KA8-12" | 21 | 4200 | 1800 | 47 | 0.5 | Ø15-Ø300 / Ø90-Ø290 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
