| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | FRS-06A5,FRS-08A6 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |

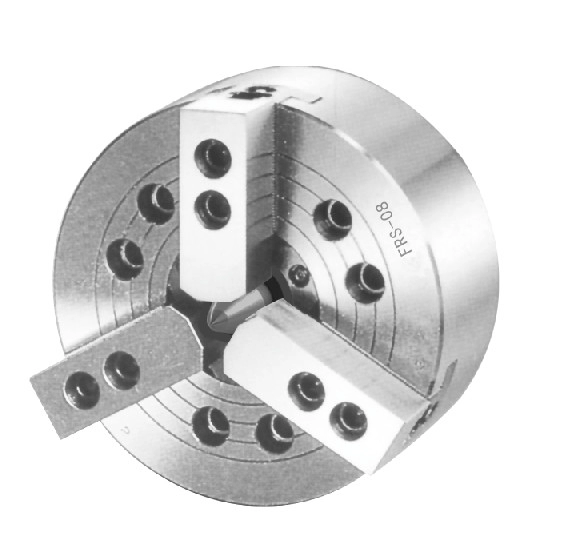

| Product Name: | FRS SERIES 3 Jaw SERRATION MODEL WITH CENTER FLOATING CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | FRS Series 3 Jaw Serration Model,Center Floating Chuck,High Precision 3 Jaw Serration Model |
||
(unit: mm)
| Spec /Model | Plunger stroke (mm) |
Jaw stroke (Dia) (mm) |
Max clamping dia (mm) |
Min clamping dia (mm) |
Max.D.B.Pull KN (kgf) |
Max clamping force KN (kgf) |
| FRS-06A5 | 5 | 6 | 160 | 25 | 23.5(2400) | 26(2650) |

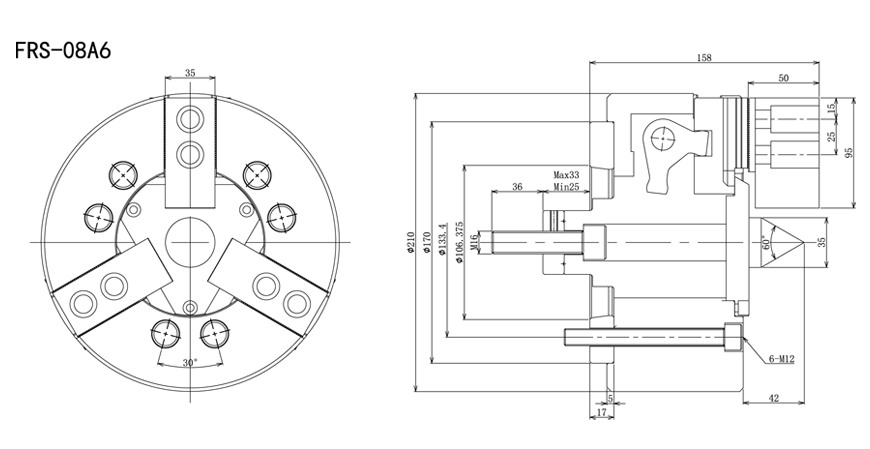

| FRS-08A6 | 8 | 12.8 | 200 |
25
|
34.3(3500) | 35(4150) |
| Spec / Model | Compensation (mm) |
Max RPM | I kg*m2 |
Weight kg |
Matched cylinders | Max.pressure Mpa(kgf/cm2) |
| FRS-06A5 | 2 | 3500 | 0.063 | 15 | S-100 | 2.1(21) |
| FRS-08A6 | 3 | 3000 | 0.175 | 24.5 | S-125 | 2.8(28) |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
