| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | OC SERIES |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | OC Hydraulic Synchronization Chuck Gripping With High Precision | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | OC Hydraulic Synchronization Chuck, Gripping Hydraulic Synchronization Chuck, High Precision Hydraulic Synchronization Chuck |
||

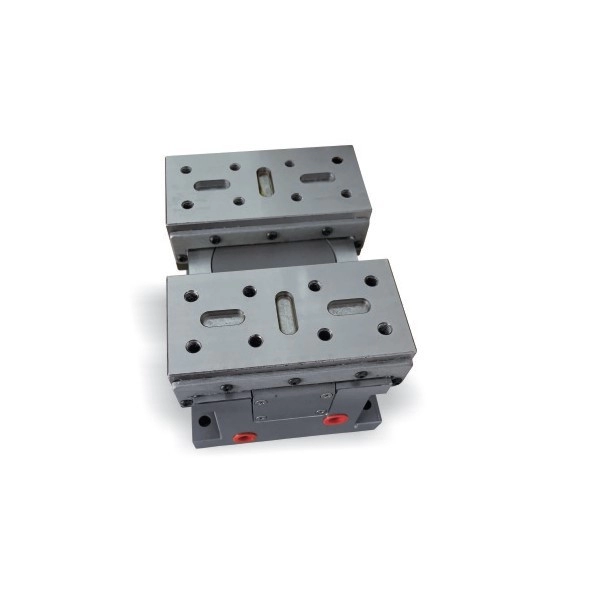

OC Hydraulic Synchronization Chuck Gripping With High Precision

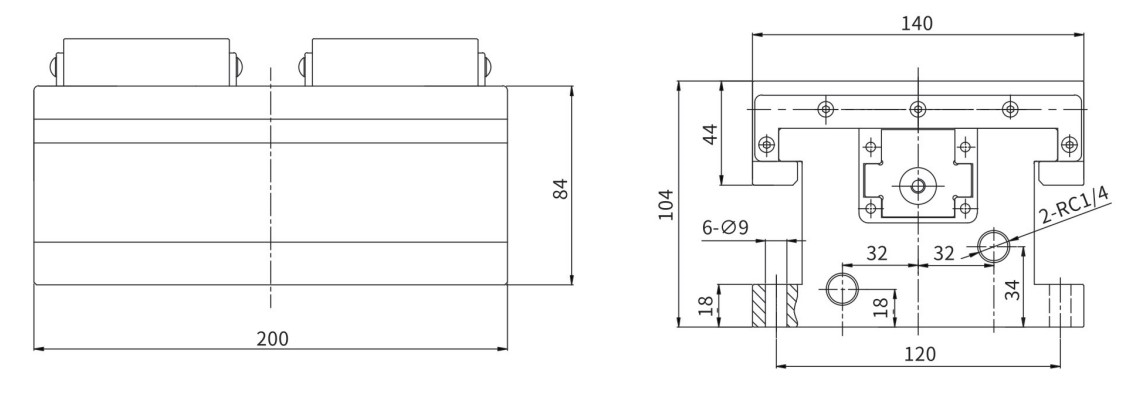

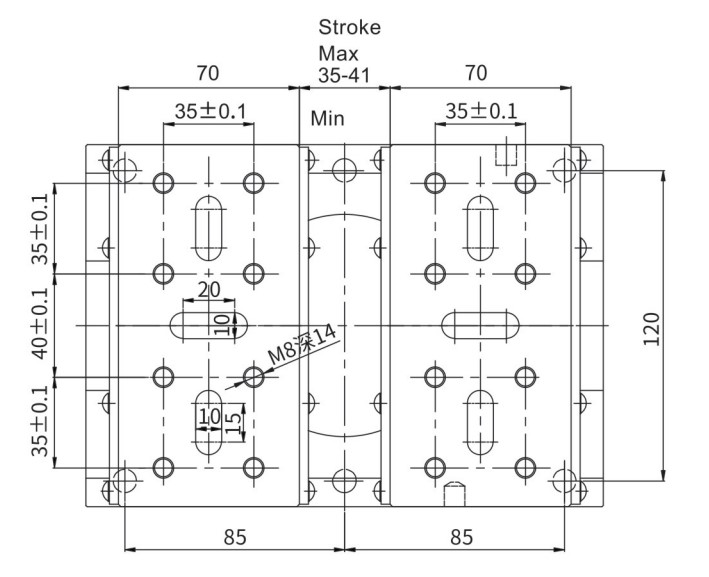

(Size unit: mm)
| Spec/ Model | Plunger Stroke | Jaw Stroke (Dia) (mm) | Max Pulling force KN(Kgf ) | Max. clamping force KN (Kgf) | Max.pressureMpa (Kgf/cm²) |
| 0C-140 | 13 | 6 | 12.3(1250) | 35.4(3610) | 2.9(29) |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
