| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 3LT series |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 3LT 3-jaw Long Stroke Non Through Hole Power Chuck | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | 3LT Power Chuck, LONG STROKE Power Chuck, 3-JAW Power Chuck |
||

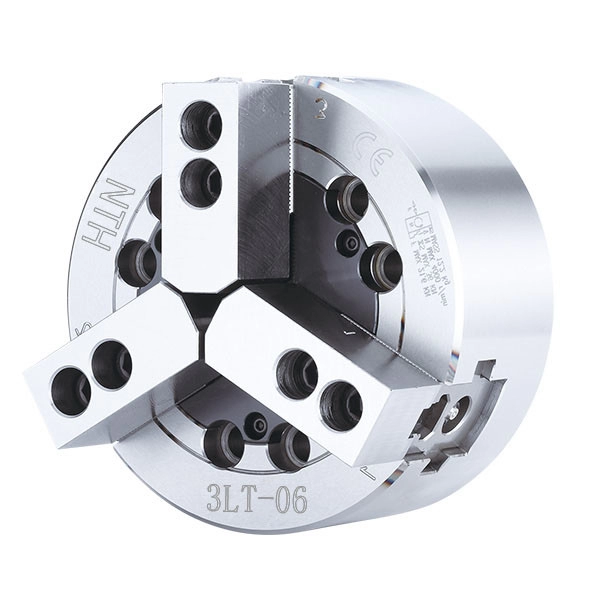

3LT 3-jaw Long Stroke Non Through Hole Power Chuck
It‵s a wedge-hook type 3 jaw close center power chuck, and extra long jaw stroke.
Matching surfaces of all parts are hardened, ground and lubricated directly.
Construction of high rigidity and high clamping accuracy and high rotary speed.
Production Catalogue Download:3LT.pdf
(Size unit: mm)
| Spec/Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
| 3LT-05 | 15 | 10.9 | 135 | 14 | 9.0(1000) |
| 3LT-06 | 20 | 14.5 | 165 | 14 | 21.6(2200) |
| 3LT-08 | 23 | 16.7 | 210 | 17 | 29.4(3000) |
| 3LT-10 | 27 | 19.6 | 254 | 22 | 39.2(4000) |
| 3LT-12 | 30 | 21.8 | 304 | 26 | 54(5500) |
| Spec/Model | Max clamping force KN(kgf) | Max RPM | Inertia moment kg*m2 | Weight kg | Matched cylinders | Max Pressure Mpa(kgf) |
| 3LT-05 | 16.4(1670) | 4500 | 0.02 | 6 | SNK-75 | 2.7(27) |
| 3LT-06 | 36(3680) | 4000 | 0.04 | 12.2 | SNK-100 | 3.0(30) |
| 3LT-08 | 54.9(5600) | 3500 | 0.13 | 23 | SNK-125 | 2.9(29) |
| 3LT-10 | 74(7550) | 3000 | 0.3 | 34.3 | SNK-150 | 2.8(28) |
| 3LT-12 | 99(10100) | 2500 | 0.71 | 59.4 | SNK-150 | 3.6(36) |

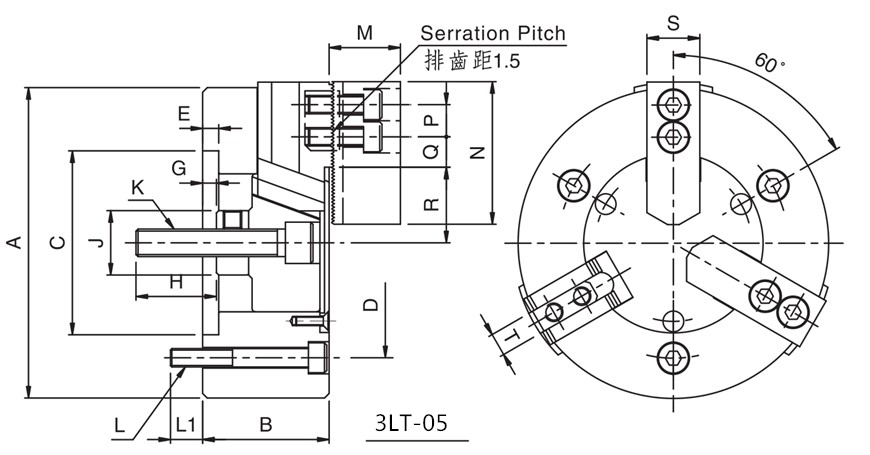

| A | B | C(H6) | D | E | Gmax | Gmin | H | J | |
| 3LT-05 | 135 | 55 | 80 | 100 | 7 | 6 | -9 | 35 | 28 |
| 3LT-06 | 165 | 74 | 140 | 104.8 | 5 | 101.5 | 81.5 | 36 | 34 |
| 3LT-08 | 210 | 85 | 170 | 133.4 | 5 | 129 | 106 | 36 | 38 |
| 3LT-10 | 254 | 89 | 220 | 171.4 | 5 | 160 | 133 | 36 | 45 |
| 3LT-12 | 304 | 106 | 220 | 171.4 | 6 | 70 | 40 | 46 | 50 |
| Spec/Model | K | L | L1 | M | N | P | Q max | Q min | R max | R min | S | T |
| 3LT-05 | M12×1.75 | 3-M8 | 14 | 31 | 62 | 14 | 17 | 5.5 | 32.9 | 27.45 | 25 | 10 |
| 3LT-06 | M16×2 | 6-M10 | 14 | 37 | 73 | 20 | 17.6 | 7 | 38.7 | 31.4 | 31 | 12 |
| 3LT-08 | M20×2.5 | 6-M12 | 20 | 38 | 95 | 25 | 22.8 | 8.8 | 47.5 | 39.1 | 35 | 14 |
| 3LT-10 | M20×2.5 | 6-M16 | 18 | 43 | 110 | 30 | 33 | 12.8 | 53.9 | 44.1 | 40 | 16 |
| 3LT-12 | M24×3 | 6-M16 | 18 | 51 | 130 | 30 | 47.8 | 13.3 | 62.5 | 51.6 | 50 | 18 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
