| Product Name: | Forged Steel T-R 3 Jaw Solid Power Chucks High Precision Guaranteed | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | Forged Steel Power Chucks, Solid Power Chucks, High Precision Power Chucks |
||

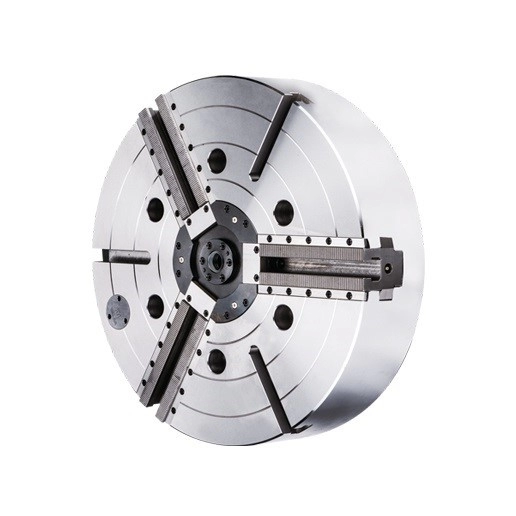

Forged Steel T-R 3 Jaw Solid Power Chucks High Precision Guaranteed
Brand:NTH
The old TF series chucks had been changed to be new T-R model.
It‵s wedge-hook type 3-jaw big size closed center power chuck.
Matching surfaces of all parts are hardened, ground and lubricated directly.
Construction of high rigidity and high clamping accuracy.
High resistant to the fluid or dust.
Production Catalogue Download:T-R SERIES.pdf
(Size unit: mm)
| Spec/Model | Plunger stroke mm | Jaw stroke Dia. mm | Max RPM | Max.pull force kgf(KN) | Max gripping force KN |
| T-212R | 30 | 16 | 3000 | 5302(52) | 14276(140) |
| T-215R | 35 | 16 | 3000 | 8260(81) | 25290(248) |
| T-218R | 35 | 16 | 2700 | 8260(81) | 25290(248) |
| T-221R | 35 | 16 | 1900 | 8650(85) | 27000(265) |
| T-224R | 35 | 16 | 1700 | 8650(85) | 27000(265) |
| T-232R | 35 | 16 | 1100 | 8650(85) | 27000(265) |
| T-240R | 35 | 16 | 800 | 8650(85) | 27000(265) |
| Spec/Model | Max.Oil pressure kgf/cm2(Mpa) | Weight Kg | Matching cylinder | Gripping range mm |
| T-212R | 35.7(3.5) | 68 | S-150(S-150R) | Ø32-Ø304 |
| T-215R | 32(3.1) | 104.1 | S-200(S-200R) | Ø68-Ø381 |
| T-218R | 32(3.1) | 138.5 | S-200(S-200R) | Ø100-Ø450 |
| T-221R | 33(3.2) | 204.8 | S-200(S-200R) | Ø80-Ø530 |
| T-224R | 33(3.2) | 260 | S-250R | Ø155-Ø610 |
| T-232R | 33(3.2) | 455.4 | S-250R | Ø155-Ø800 |
| T-240R | 33(3.2) | S-250R | Ø155-Ø1000 |

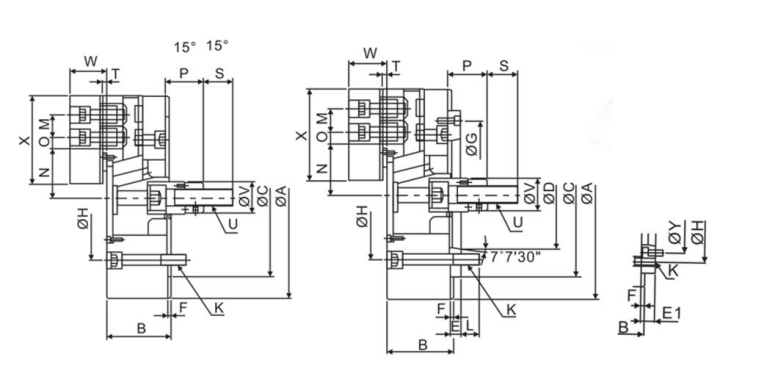

| Spec/ Model | Spindle Nose | A | B | C(h6) | D | E | E1 | F | G | H | K | L | M |
| T-212R | A8 | 304 | 118 | 220 | 139.719 | 18 | - | 6 | 190 | 171.45 | 6-M20×2.5P | 24 | 30 |
| T-215R | A11 | 381 | 118 | 300 | 196.869 | 22 | - | 6 | 260 | 235 | 6-M20×2.5P | 32 | 43 |
| T-218R | A11 | 450 | 118 | 300 | 186.869 | 22 | - | 6 | 260 | 235 | 6-M20×2.5P | 32 | 43 |
| T-221R | A15(A11) | 530 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-224R | A15(A11) | 610 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-232R | A15(A11) | 800 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-240R | A15(A11) | 1000 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |

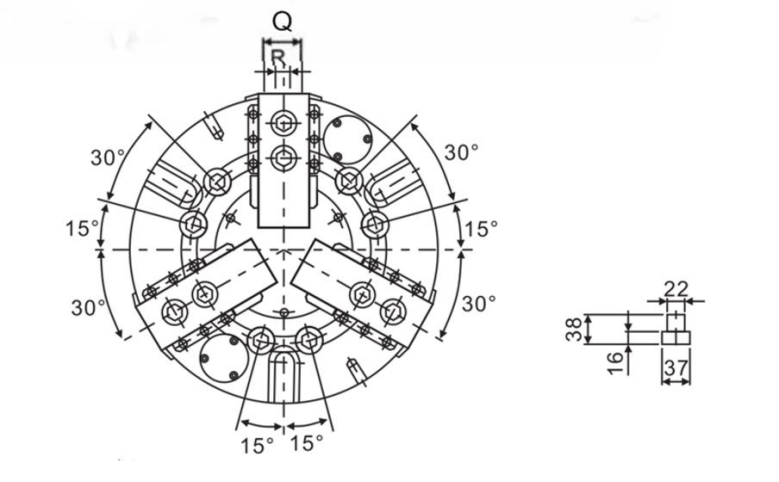

| Spec/ Model | Nmax | Nmin | Omax | Omin | Pmax | Pmin | Q | R | S | T | U | V | W | X | Y |
| T-212R | 64 | 56 | 45.75 | 12.75 | 145 | 115 | 50 | 18 | 36 | - | M20×2.5P | 50 | 54.5 | 129 | - |
| T-215R | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
| T-218R | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
| T-221R | 80.49 | 72.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-224R | 119.49 | 111.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-232R | 119.49 | 111.39 | 197.8 | 41.8 | 97 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-240R | 119.49 | 111.39 | 299.8 | 41.8 | 97 | 102 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
