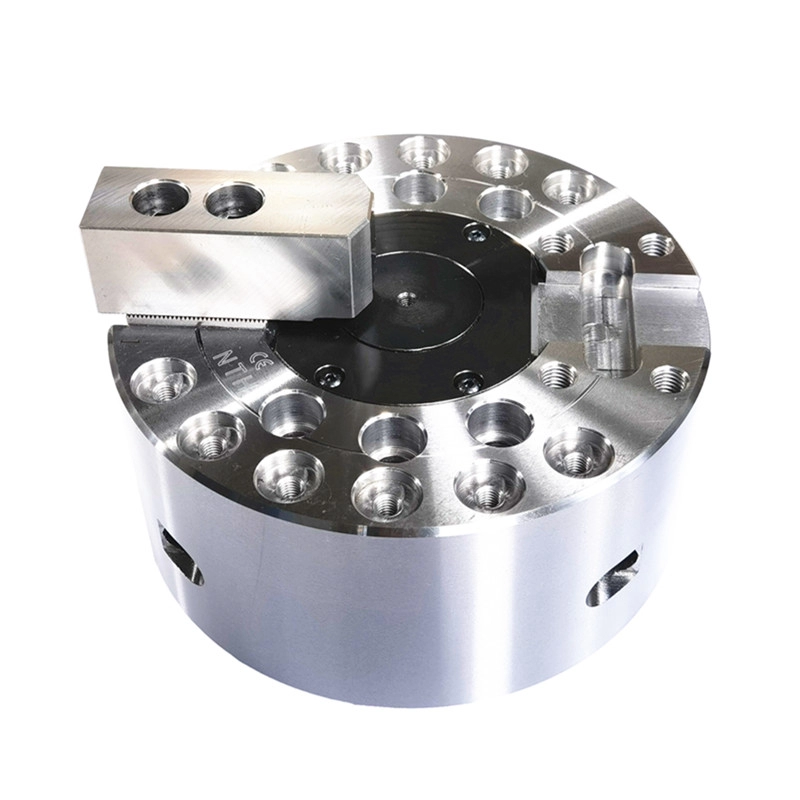

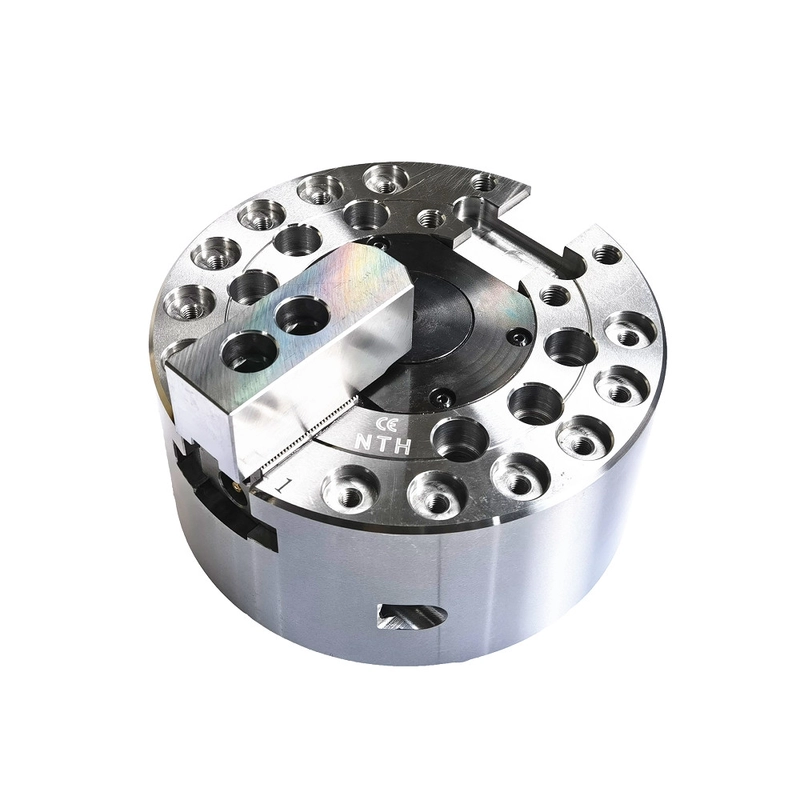

1B Single Jaw Through Hole Power Chuck Forged Steel Material

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: 1B-06A5, 1B-08A6
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details:Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 100 sets/M
Product Name:1B Single Jaw Through Hole Power Chuck Forged Steel Material Material: Forged Steel
Function: Gripping/Fixture Feature: High Precision/High Quality
Usage: Refer To The Specification Service: OEM/ODM Is Acceptable
Highlight:

1B Power Chuck, Single Jaw Through Hole Power Chuck, Forged Steel Material Jaw Chuck

1B Single Jaw Through Hole Power Chuck Forged Steel Material

Brand:NTH

Single jaw through hole power chuck, super long jaw stroke.
Suitable for clamping the jig.

Construction of high rigidity and high clamping accuracy.

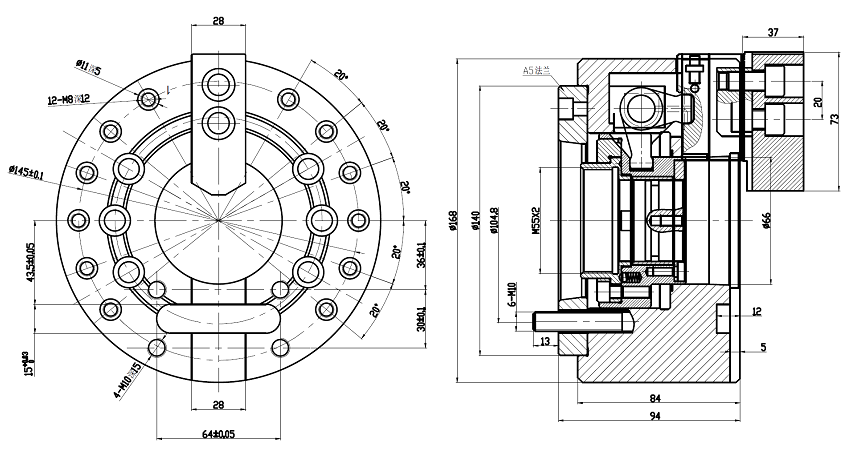

1B-06A5 drawing

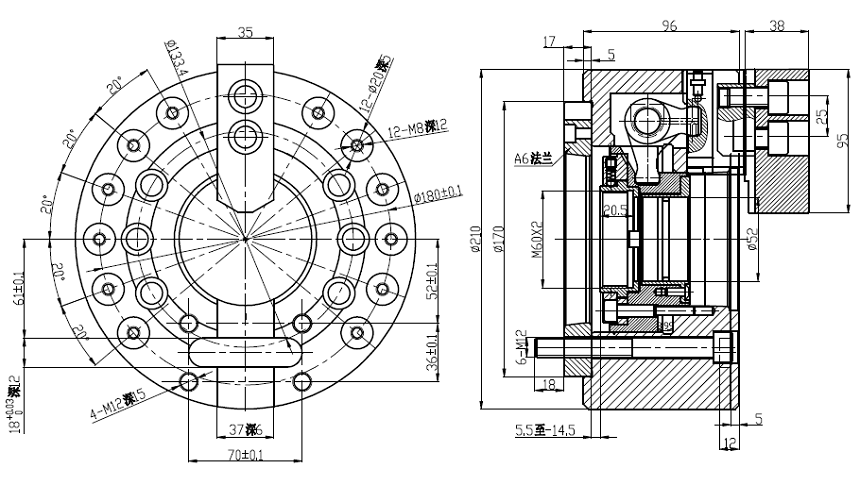

1B-08A6 drawing


Unit:mm



Spec
Model
Plunger stroke
(mm)
Jaw stroke(Dia.)
(mm)
Dia. Clamping Range
(mm)
Max.D.B.Pull
KN(kgf)
Max clamping force
KN(kgf)
1B-06A5151210-16915.7(1600)17.2(1760)
1B-08A6203210-21022.8(2330)27(2750)



Spec
Model
Max RPMI
kg*m2
Weight
kg
Matched cylindersMax.pressure
Mpa(kgf/cm2)
1B-06A536000.0515H-1246/HK-12461.7(17)
1B-08A630000.1526H-1552/HK-15521.5(15)


Subject to technology changes without prior information

Non-standard requirements can be made
