| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | B-206A5 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | B-206A5 3 JAW HIGH ROTARY SPEED THROUGH HOLE POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Guarantee: | 12 Months | Service: | OEM/ODM Is Acceptable |
| Highlight: | B-206A5 Power Chuck,Rotary Through Hole Power Chuck,Through Hole 3 Jaw Chuck |
||
Brand:NTH

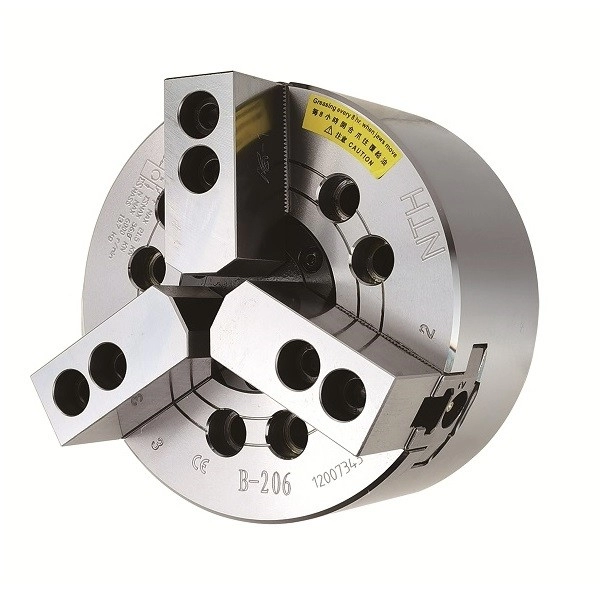

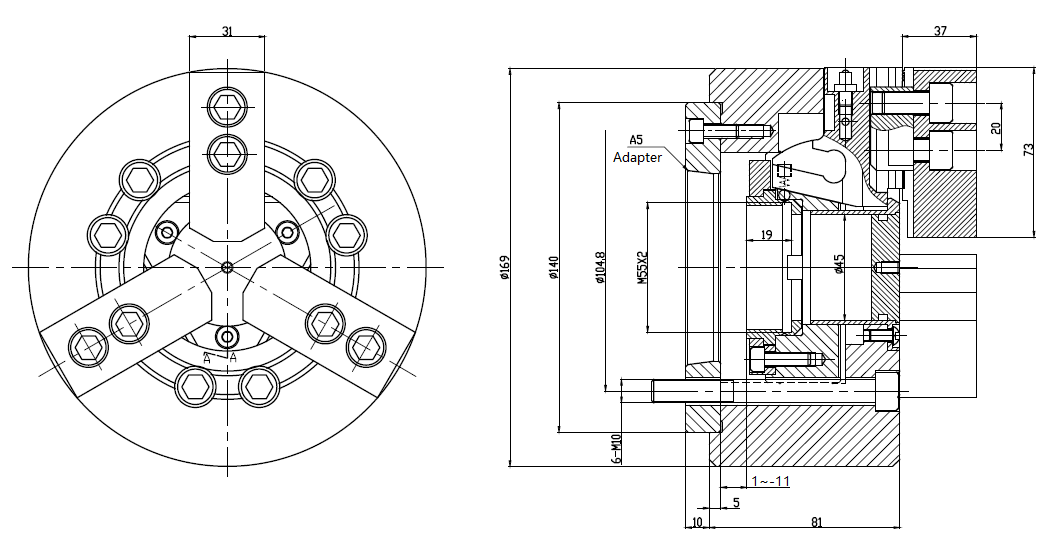

B-206A5 is WEDGE-HOOK type 3 jaw power chuck with the large through-hole .
it's suitable for A2-5 spindle nose of lathe machine
the through hole size is 45mm
| Spec Model |
Plunger stroke mm |
Jaw stroke Dia. mm |
Max chucking Dia. mm |
Min chucking Dia. mm |
Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| B-206 A5 | 12 | 5.5 | 169 | 15 | 2200 |
| Spec Model |
Max clamping force kgf |
Max RPM | I kg*m2 |
Weight(Ad.) kg |
Matched cylinders |
|---|---|---|---|---|---|
| B-206 A5 | 5800 | 6000 | 0.06 | 13.7 | H-1246 |
Subject to technology changes without prior information
Non-standard requirements can be made
