| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | FWD-06A5,FWD-08A6 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | FWD 3 JAW COMPENSATION WITH CENTER POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

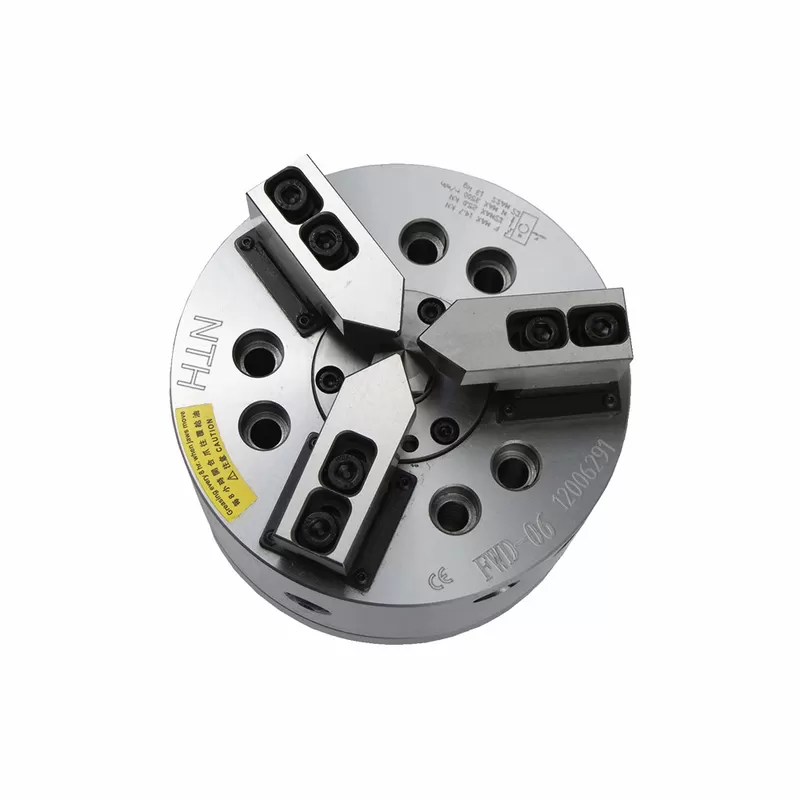

FWD 3 JAW COMPENSATION WITH CENTER POWER CHUCK
BAND:NTH

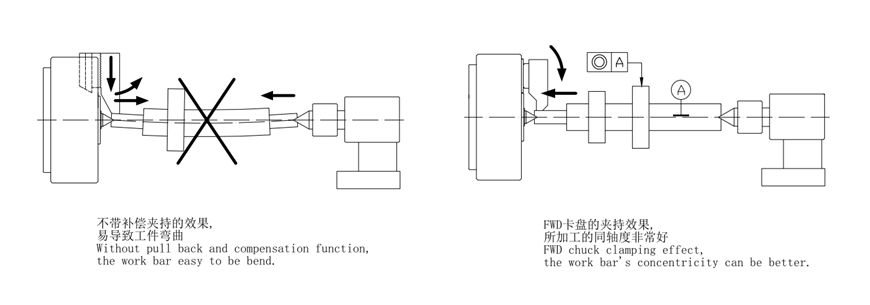

1. It's suitable for shaft machining, the chuck have the function of compensation clamping and pulling back, the compensation size is 5mm.
2. The tailstock support the shaft, after compensation clamping, the chuck pull the shaft back to center, better concentricity can be made.
Unit:mm
| Spec Model | Plunger stroke (mm) | Jaw stroke (Dia) (mm) | Max clamping dia (mm) | Min clamping dia (mm) | Max.D.B.Pull KN(kgf) | Max clamping force KN(kgf) |
| FWD-06A5 | 16 | 13 | 35 | 6 | 14.7(1500) | 25.0(2550) |
| FWD-08A6 | 20 | 18 | 65 | 16 | 19.6(2000) | 34.3(3500) |
| Spec Model | Compensation (mm) | Max RPM | I kg*m2 | Weight kg | Matched cylinders | Max.pressure Mpa(kgf/cm2) |
| FWD-06A5 | 5 | 3500 | 0.2 | 13 | SNK-100 | 2.1(21) |
| FWD-08A6 | 6 | 3000 | 0.5 | 22 | SNK-100 | 2.8(28) |

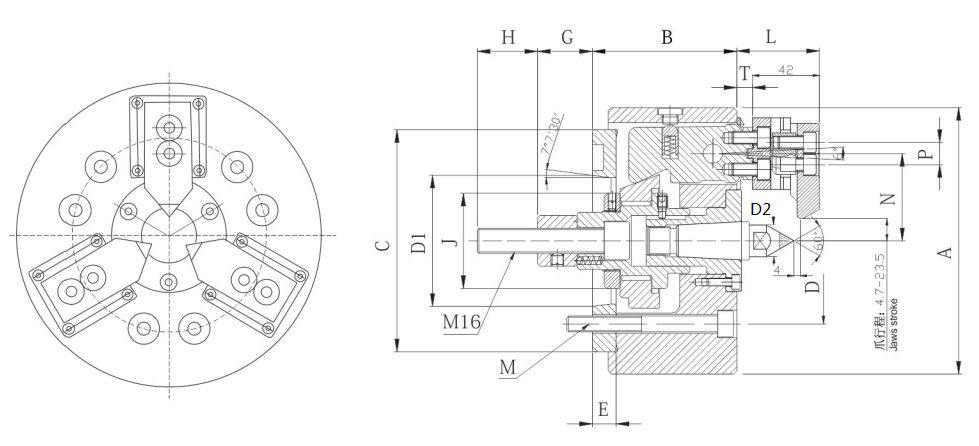

| Spec Model | A | B | C(H6) | D | D1 | D2 | E | G |
| FWD-06A5 | 168 | 116 | 140 | 104.8 | 82.56 | 24 | 15 | 4--20 |
| FWD-08A6 | 210 | 127 | 170 | 133.4 | 106.38 | 32 | 17 | 9--29 |
| Spec Model | H | J | L | M | N | P | T |
| FWD-06A5 | 38 | 50 | 52 | M10x120 | 55 | 14 | 34 |
| FWD-08A6 | 38 | 58 | 61 | M12x125 | 67 | 20 | 41.5 |
Remark: FWD-06 chuck’s center is spring type, when clamping, it’s based on the center, the workpiece could be pulled onto the position base, so as to make axial postion.
Subject to technology changes without prior information
Non-standard requirements can be made
