| Product Name: | FCK MILLING SCROLL CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | power operated chucks,power collet chuck |
||

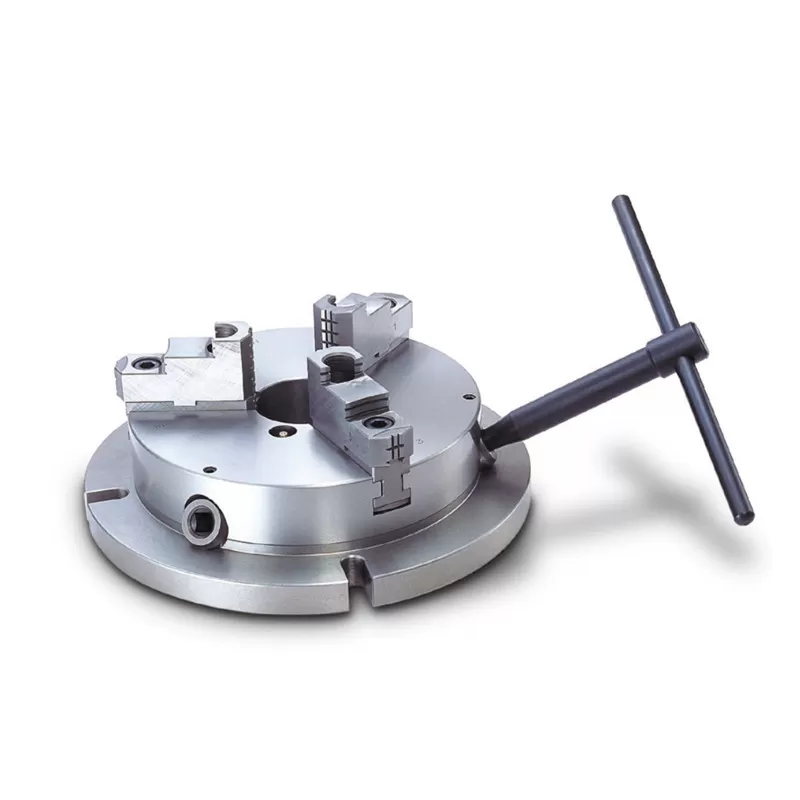

FCK MILLING SCROLL CHUCK
BAND:NTH
MILLING CHUCK ADVANTAGES
1. The handle is at a 30 degree angle with the chuck surface, it makes the operation more convenient.
2. The super thin design is for reserving more processing space.
3. The chuck flange with U type home by which is easy for mounting onto milling workbench.
4. Two-piece jaws structure, it can use hard jaws and soft jaws for different clamping requirements.

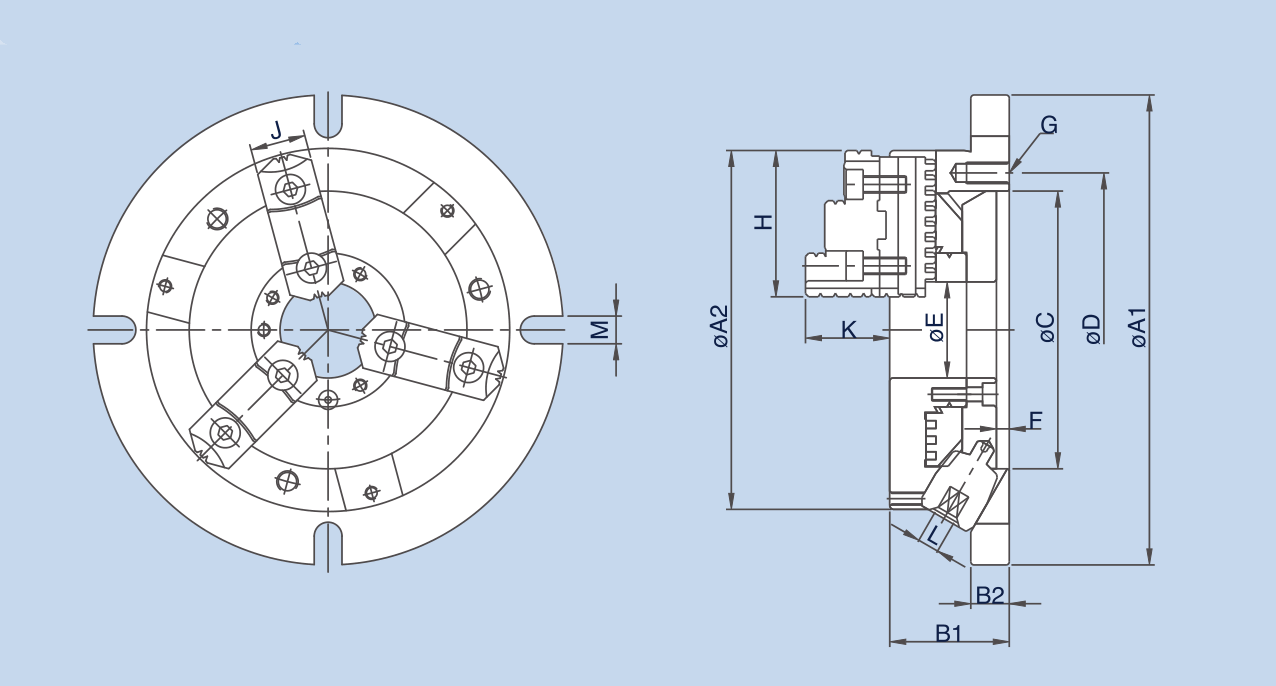

Unit:mm
| MODEL/SPEC | OD. Clamping Range mm |
ID. Clamping Range mm |
Weight kg |
A1 | A2 | B1 | B2 |
| FCK-06 | Ø8-Ø160 | Ø48-Ø150 | 10.6 | 220 | 170 | 58 | 18 |
| FCK-08 | Ø11-Ø200 | Ø62-Ø190 | 18.1 | 270 | 210 | 65 | 20 |
| FCK-10 | Ø12-Ø250 | Ø72-Ø240 | 27.9 | 315 | 255 | 73 | 20 |
| FCK-12 | Ø15-Ø300 | Ø86-Ø290 | 42.9 | 370 | 305 | 80 | 22 |
| FCK-14 | Ø45-Ø304 | Ø115-Ø284 | 48 | 420 | 356 | 80 | 23 |
| FCK-16 | Ø80-Ø344 | Ø174-Ø318 | 77 | 470 | 400 | 92 | 24 |
| FCK-20 | Ø90-Ø409 | Ø212-Ø371 | 126 | 570 | 500 | 105 | 26 |
| MODEL/SPEC | C | D | E | F | G | H | J | K | L | M |
| FCK-06 | 130 | 147 | 45 | 6 | 3-M10x1.5P | 67 | 25 | 40.5 | 10 | 13 |
| FCK-08 | 155 | 172 | 60 | 6 | 3-M10x1.5P | 80 | 30 | 42 | 11 | 13 |
| FCK-10 | 190 | 210 | 80 | 6 | 3-M12x1.75P | 92 | 36 | 54.5 | 12 | 16 |
| FCK-12 | 250 | 285 | 105 | 5 | 3-M12x1.75P | 110 | 42 | 56 | 14 | 18 |
| FCK-14 | - | 330 | 130 | 5 | M12 | 110 | 42 | 70.5 | 14 | 18 |
| FCK-16 | - | 365 | 160 | 6 | M16 | 130 | 45 | 75 | 15 | 18 |
| FCK-20 | - | 465 | 220 | 7 | M16 | 166 | 50 | 84 | 17 | 1 |
Subject to technology changes without prior information
Non-standard requirements can be made
