BTS 2 JAW AND 3 JAW COMPATIBLE POWER CHUCK

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: BTS-08A6,
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: BTS 2 JAW AND 3 JAW COMPATIBLE POWER CHUCK Material: Forged Steel
Usage: Gripping/Fixture Feature: High Precision/High Quality
Size: Refer To The Specification Service: OEM/ODM Is Acceptable
High Light:

power operated chucks

,

power collet chuck

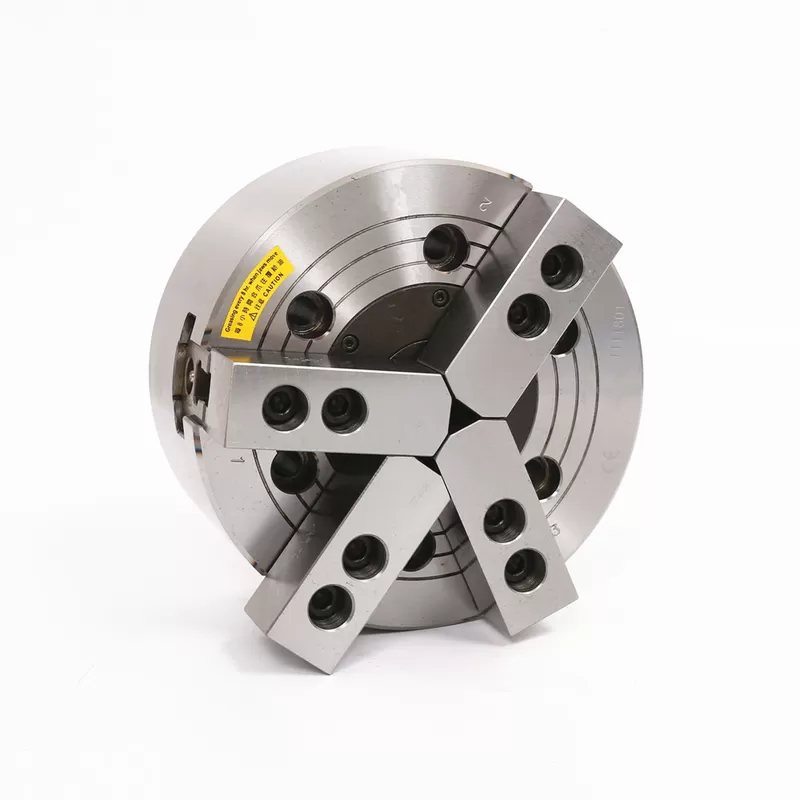

BTS 2 JAW AND 3 JAW COMPATIBLE POWER CHUCK

BAND:NTH

1. The function of 2 jaw chuck and 3 jaw chuck can be used in one same chuck.

2. When the round workpiece need change to irregular type, just change the chuck jaws, no need to change the chuck.

3. All chuck's sliding surfaces are hardened and ground to increase rotary accuracy and longer service life.

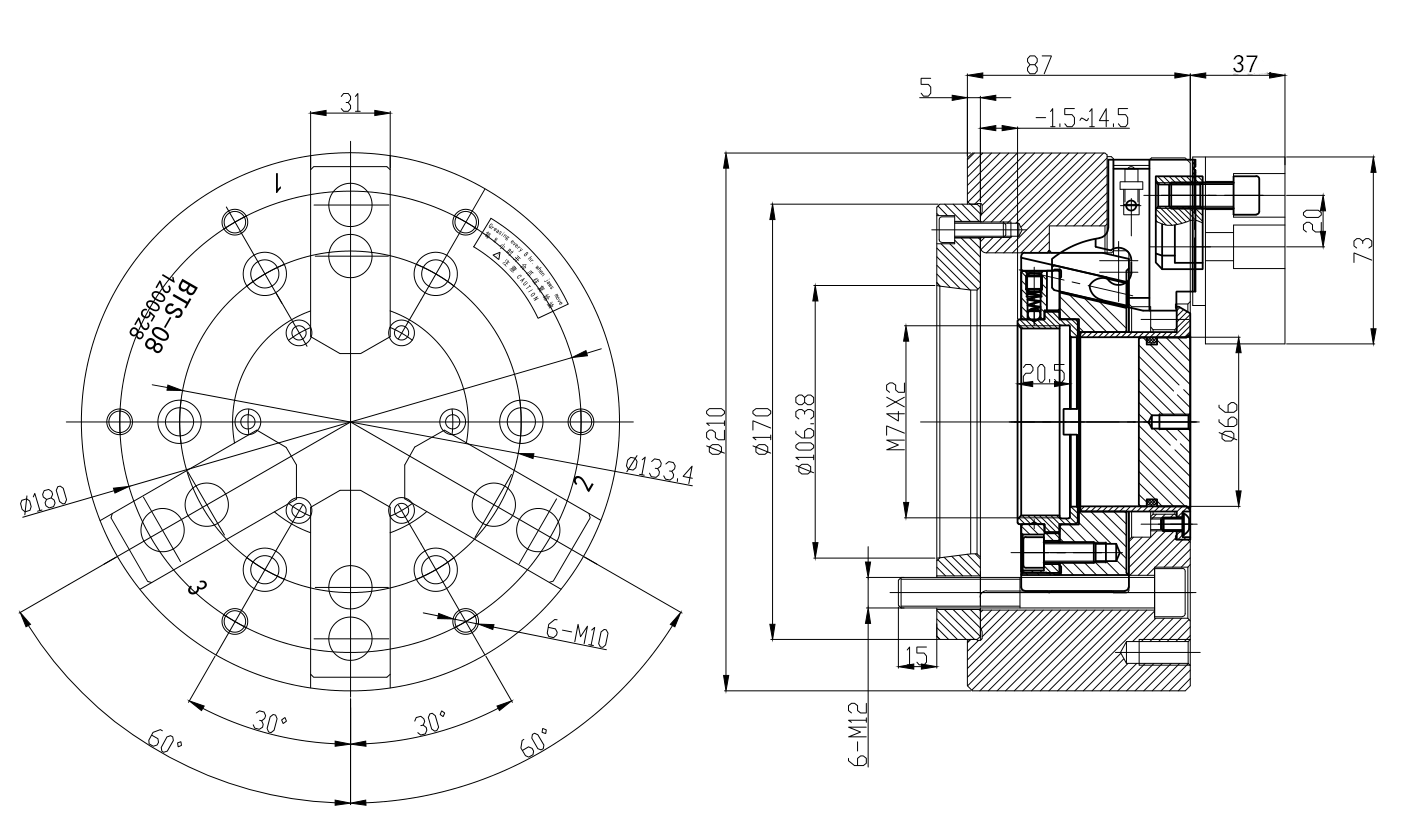

BTS 2 JAW AND 3 JAW COMPATIBLE POWER CHUCK 0

Unit:mm

Spec
Model
Through hole dia.
(mm)
Plunger stroke
(mm)
Jaw stroke (Dia)
(mm)
Max clamping dia
(mm)
Min clamping dia
(mm)
(2 jaws)
Max.D.B.Pull
KN(kgf)

(3 jaws)
Max.D.B.Pull
KN(kgf)



BTS-08A6



66 16 7.4 210 23 14.7(1470)

21.5(2200)



Spec
Model

(2 jaws)
Max clamping force
KN(kgf)

(3 jaws)
Max clamping force
KN(kgf)
Max RPM Weight
kg
Matched cylinders (2 jaws)
Max.pressure
Mpa(kgf/cm2)
(3 jaws)
Max.pressure
Mpa(kgf/cm2)



BTS-08A6



37.9(3870) 56.8(5800) 4200 25 H-1552 1.2(12) 1.8(18)

Subject to technology changes without prior information

Non-standard requirements can be made
