| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | BS-206 A5,BS-208 A5，BS-210 A8 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | BS 6 Jaw Through Hole Power Chuck | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | power operated chucks,power collet chuck |
||

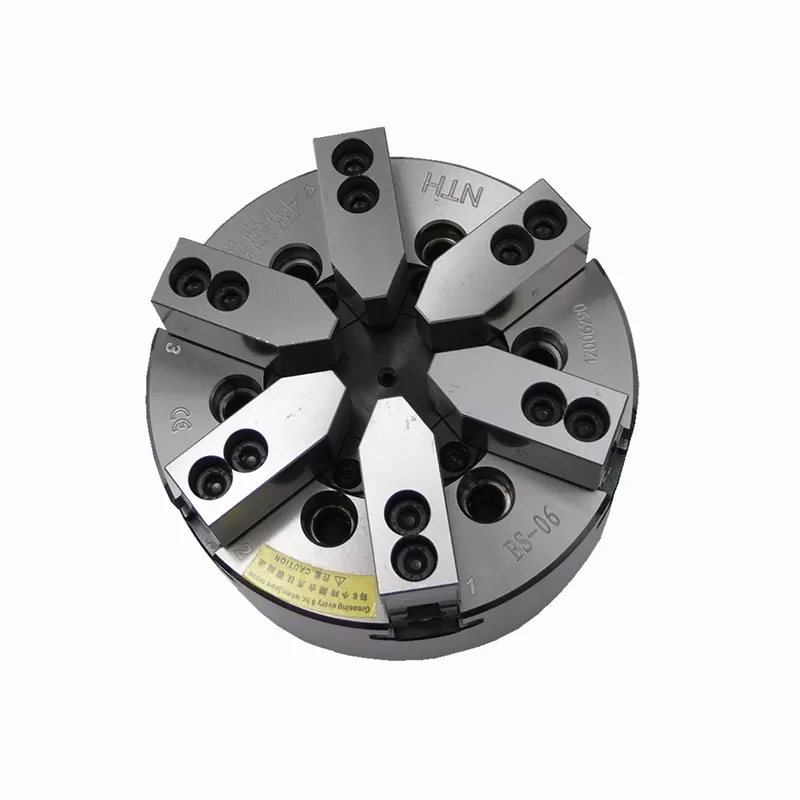

BS 6 JAW THROUGH HOLE POWER CHUCK
BAND:NTH
More contact point clamping, it can improve the deformation issue during clamping process for thin wall pipe or ring like workpiece.
Unit:mm
| Spec Model |
Plunger stroke (mm) |
Jaw stroke (Dia) (mm) |
Max clamping dia (mm) |
Min clamping dia (mm) |
Max.D.B.Pull KN(kgf) |
| BS-206 A5 | 12 | 5.6 | 168 | 15 | 17.1(1750) |
| BS-208 A6 | 16 | 7.4 | 210 | 13 | 34.3(3500) |
| BS-210 A8 | 19 | 8.8 | 254 | 46 | 34.3(3500) |
| Spec Model |
Max clamping force KN(kgf) |
Max RPM |
I kg*m2 |
Weight kg |
Matched cylinders | Max.pressure Mpa(kgf/cm2) |
| BS-206 A5 | 35.8(3650) | 6000 | 0.06 | 15 | H-1246 | 2.0(20) |
| BS-208 A6 | 85.8(8750) | 5000 | 0.19 | 25 | H-1552 | 2.8(28) |
| BS-210 A8 | 85.8(8750) | 4200 | 0.35 | 42 | H-1875 | 2.1(21) |

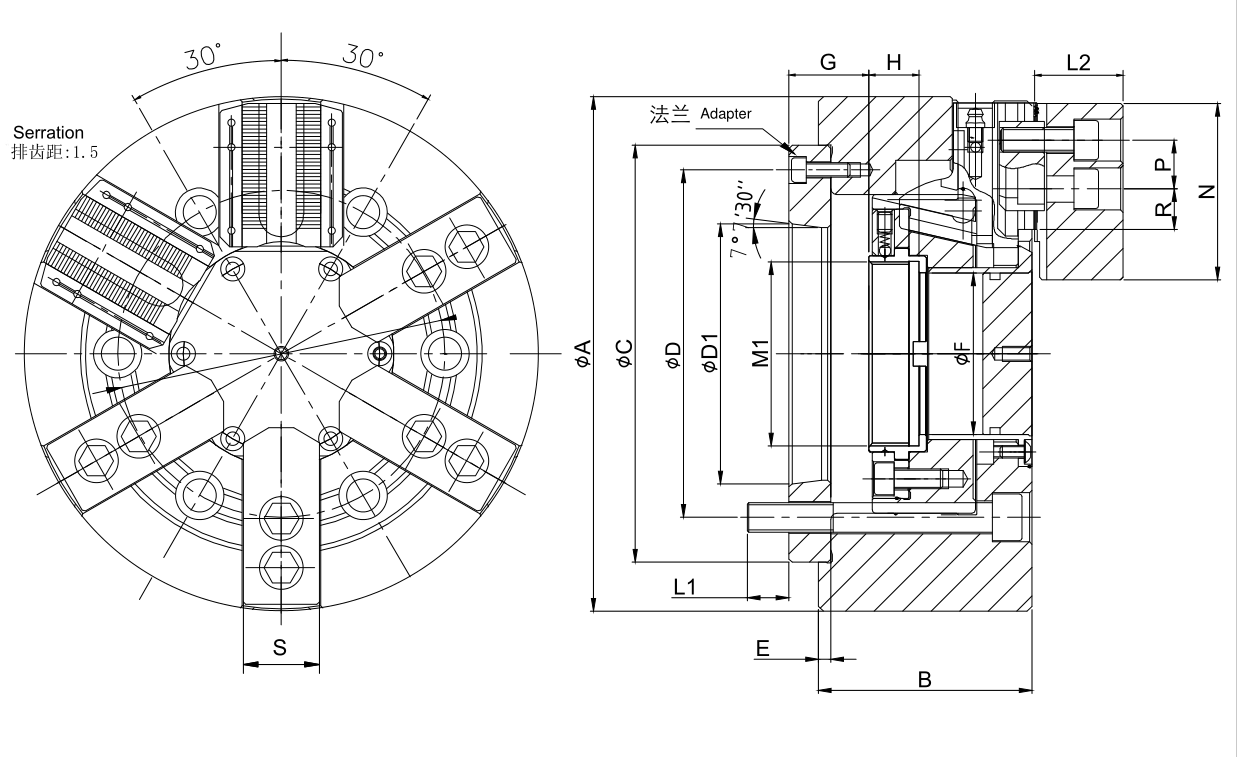

| Spec Model |
A | B | C(H6) | D | D1 | E | F | G max | G min |
| BS-206 A5 | 169 | 81 | 140 | 104.78 | 82.56 | 5 | 45 | 26 | 14 |
| BS-208 A6 | 210 | 87 | 170 | 133.35 | 106.38 | 5.5 | 66 | 31.5 | 15.5 |
| BS-210 A8 | 254 | 100 | 220 | 171.45 | 139.72 | 5.5 | 86 | 26.5 | 7.5 |
| Spec Model |
H | L1 | L2 | M1 | N | P | R max | R min | S |
| BS-206 A5 | 19 | 18 | 30 | M55*2.0 | 62 | 14 | 19.8 | 7.8 | 25 |
| BS-208 A6 | 20.5 | 17 | 36 | M75*2.0 | 73 | 20 | 22.8 | 9.3 | 31 |
| BS-210 A8 | 25 | 24.5 | 37 | M95*2.0 | 95 | 25 | 29.8 | 14.8 | 35 |
Subject to technology changes without prior information
Non-standard requirements can be made
