| Product Name: | 2AT 2 JAW PULL LOCK POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

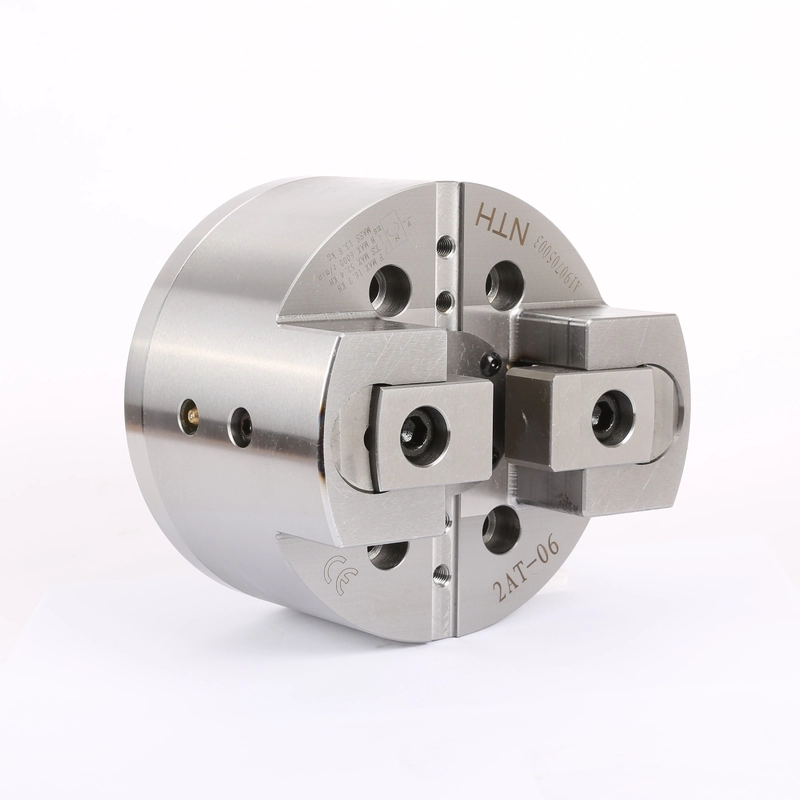

2AT 2 JAW PULL LOCK POWER CHUCK
Brand:NTH
1. Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck. Almost no workpiece uplifting displacement.
2. It can go with Air-tight pressure detect to inspect the axial position, it's suitable for high precision length machining work.
3. This chuck is Pin arbor pull-down mechanism, the chuck body is heat-treated and fine boring, the clamping precision and durableness is very good, it's suitable for heavy duty machining.
Unit:mm
| Spec Model | Plunger stroke (mm) | Jaw stroke (Dia) (mm) | Max clamping dia (mm) | Min clamping dia (mm) | Max.D.B.Pull KN(kgf) |
| 2AT-04A4 | 10 | 5.2 | 48 | 16 | 8.1(830) |
| 2AT-06A5 | 15 | 7.8 | 60 | 22 | 16.7(1700) |
| 2AT-08A5 | 20 | 10.3 | 90 | 32 | 23.7(2420) |
| 2AT-08A6 | 20 | 10.3 | 90 | 32 | 23.7(2420) |
| 2AT-10A6 | 20 | 10.3 | 120 | 45 | 34.3(3500) |
| 2AT-10A8 | 20 | 10.3 | 120 | 45 | 34.3(3500) |
| Spec Model | Max clamping force KN(kgf) | Max RPM | I kg*m2 | Weight kg | Matched cylinders | Max.pressure Mpa(kgf/cm2) |
| 2AT-04A4 | 25.0(2550) | 6000 | 0.02 | 7.1 | SLA-75/S-80 | 2.3(23) |
| 2AT-06A5 | 52.4(5350) | 6000 | 0.05 | 13.8 | SLA-100/S-100 | 2.4(24) |
| 2AT-08A5 | 74.5(7600) | 5000 | 0.14 | 25.9 | SLA-100/S-100 | 3.4(34) |
| 2AT-08A6 | 74.5(7600) | 5000 | 0.14 | 24 | SLA-100/S-100 | 3.4(34) |
| 2AT-10A6 | 107.8(11100) | 4000 | 0.36 | 50 | SLA-125/S-125 | 3.2(32) |
| 2AT-10A8 | 107.8(11100) | 4000 | 0.36 | 48.5 | SLA-125/S-125 | 3.2(32) |

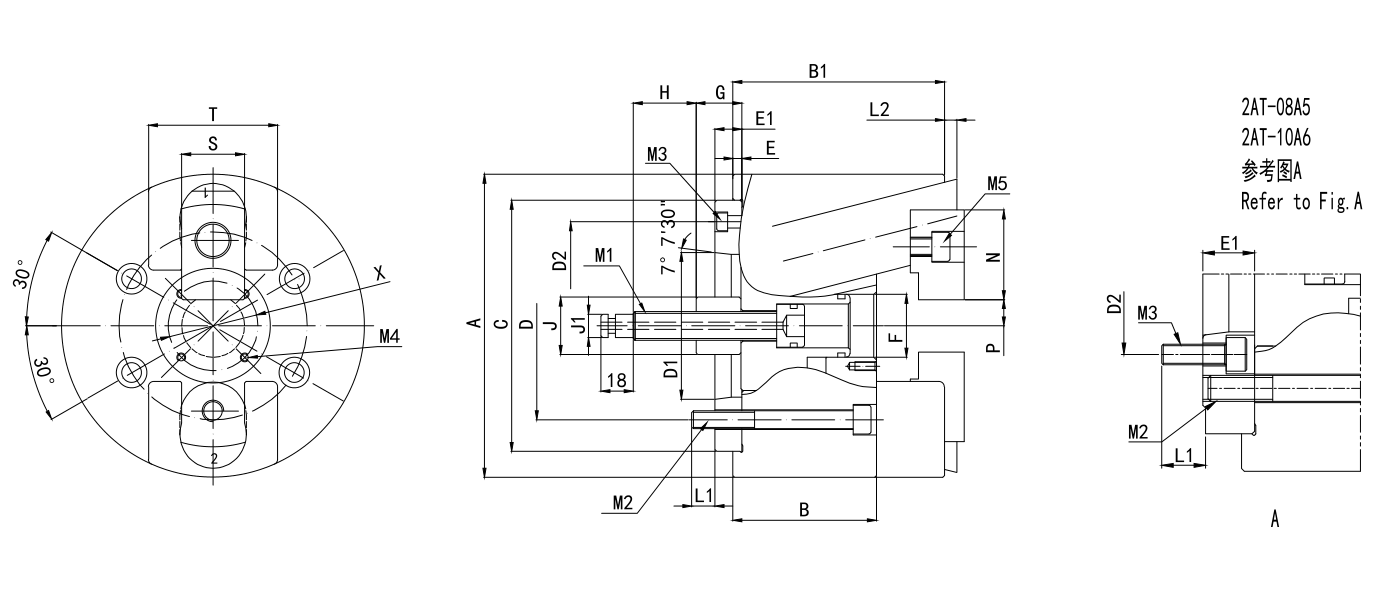

| Spec Model | A | B | B1 | C(H6) | D | D1 | D2 | E | E1 | F | G max | G min | H |
| 2AT-04A4 | 135 | 70 | 100 | 110 | 82.6 | 63.51 | 96 | 4 | 15 | 30 | 29 | 19 | 32 |
| 2AT-06A5 | 168 | 88 | 128 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 35 | 39 | 24 | 32 |
| 2AT-08A5 | 210 | 100 | 145 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 45 | 44 | 24 | 38 |
| 2AT-08A6 | 210 | 100 | 145 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 45 | 44 | 24 | 38 |
| 2AT-10A6 | 254 | 110 | 160 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 55 | 44 | 24 | 38 |
| 2AT-10A8 | 254 | 110 | 160 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 55 | 44 | 24 | 38 |
| Spec Model | J1 | L1 | L2 min | M1 | M2 | M3(Ad.) | M4 | M5 | N | P min | S | T | X |
| 2AT-04A4 | 11 | 13 | ±5 | M14 | 4-M10 | 4-M6 | 4-M5 | 2-M10 | 45 | 8 | 28 | 60 | 40 |
| 2AT-06A5 | 13 | 16 | ±7.5 | M16 | 4-M10 | 4-M6 | 4-M5 | 2-M12 | 50 | 10 | 35 | 72 | 50 |
| 2AT-08A5 | 17 | 18 | ±10 | M20 | 4-M12 | 4-M10 | 4-M6 | 2-M12 | 63 | 12.5 | 40 | 85 | 60 |
| 2AT-08A6 | 17 | 18 | ±10 | M20 | 4-M12 | 4-M6 | 4-M6 | 2-M12 | 63 | 12.5 | 40 | 85 | 60 |
| 2AT-10A6 | 17 | 20 | ±10 | M20 | 4-M16 | 4-M12 | 4-M6 | 2-M14 | 74 | 17.5 | 50 | 100 | 70 |
| 2AT-10A8 | 17 | 20 | ±10 | M20 | 4-M16 | 4-M8 | 4-M6 | 2-M14 | 74 | 17.5 | 50 | 100 | 70 |
Subject to technology changes without prior information
Non-standard requirements can be made
