| Product Name: | 4T 4-JAW NON THROUGH HOLE POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power collet chuck |
||

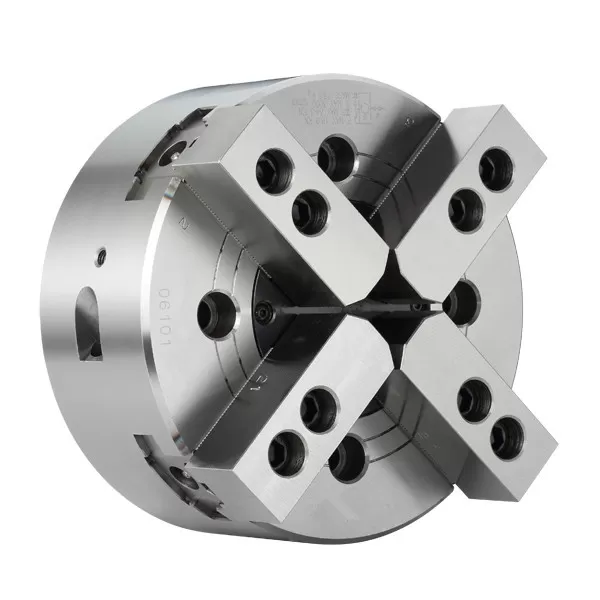

4T 4-JAW NON THROUGH HOLE POWER CHUCK
Brand:NTH
It's wedge four claws solid chuck.
Matching surfaces of all parts hardened,ground and lubricated directly.
Construction of high rigidity and high clamping accuracy.
It's applicable for clamping irregular shape parts
Size unit: mm
Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max.D.B.Pull kgf | Max clamping force kgf | Max RPM |
|---|---|---|---|---|---|
| 4T-206 A5 | 20 | 9.2 | 17.9(1830) | 52.4(5350) | 5250 |
| 4T-208 A5 | 21 | 9.7 | 25(2550) | 74.5(7600) | 4750 |
| 4T-208 A6 | 21 | 9.7 | 25(2550) | 74.5(7600) | 4750 |
| 4T-210 A6 | 25 | 8.8 | 28.9(2950) | 107.8(11000) | 4000 |
| 4T-210 A8 | 25 | 8.8 | 28.9(2950) | 107.8(11000) | 4000 |
| 4T-212 A8 | 30 | 10.5 | 41(4180) | 155.8(15900) | 3000 |
| 4T-215 A11 | 35 | 16 | 82(8360) | 248.4(25350) | 3000 |
| 4T-218 A11 | 35 | 18.7 | 96(9687) | 248.4(25350) | 2000 |
| 4T-224 A15 | 35 | 18.7 | 82(8360) | 273(27838) | 1520 |
| 4T-232 A15 | 35 | 18.7 | 82(8360) | 215(21924) | 920 |
Spec Model | Chucking Dia mm | I kg*m2 | Weight kg | Weight(Ad.) kg | Matched cylinders | Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 4T-206 A5 | 14-165 | 0.05 | 13 | 14 | S-100 | 3.0(30) |
| 4T-208 A5 | 17-210 | 0.14 | 24 | 28 | S-125 | 2.6(25) |
| 4T-208 A6 | 17-210 | 0.14 | 24 | 27 | S-125 | 2.6(25) |
| 4T-210 A6 | 22-254 | 0.3 | 35 | 42 | S-125 | 3.0(30) |
| 4T-210 A8 | 22-254 | 0.3 | 35 | 40 | S-125 | 3.0(30) |
| 4T-212 A8 | 22-304 | 0.73 | 59 | 63 | S-150 | 3.0(30) |
| 4T-215 A11 | 50-371 | 1.95 | 100 | 107 | S-200 | 3.2(32) |
| 4T-218 A11 | 78-450 | 3.5 | 134 | 140.2 | S-200 | 3.2(32) |
| 4T-224 A15 | 152-610 | 7.81 | 235 | 244 | S-200 | 3.2(32) |
| 4T-232 A15 | 100-810 | 31.2 | 400 | 416 | S-200 | 3.2(32) |

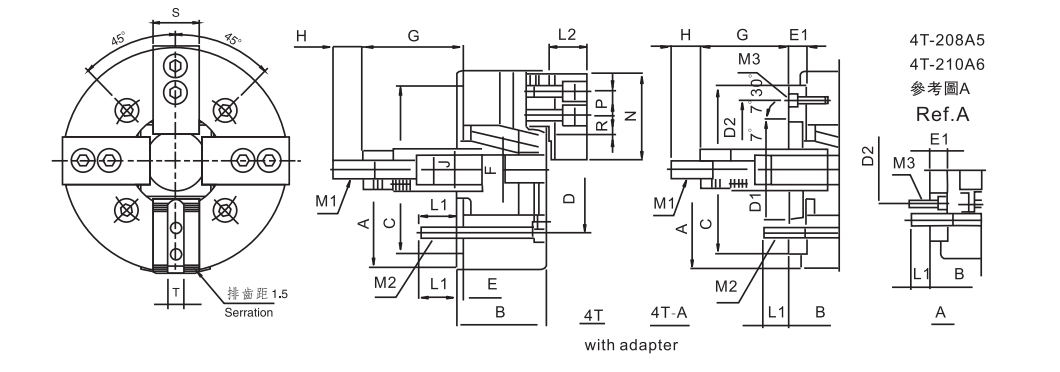

| SpecModel | A | B | B | C(H6) | D | D1 | D2 | E | E1 | F | G max | G min | G max | G min | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4T-206 A5 | 165 | 74 | 84 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 21 | 101.5 | 86.5 | 87.5 | 66.6 | 35 | 34 |
| 4T-208 A5 | 210 | 85 | 103 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 25 | 127 | 104 | 106 | 83 | 35 | 38 |
| 4T-208 A6 | 210 | 85 | 97 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 25 | 127 | 110 | 106 | 89 | 35 | 38 |
| 4T-210 A8 | 254 | 89 | 102 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 34 | 158 | 140 | 133 | 115 | 35 | 45 |
| 4T-212 A8 | 304 | 106 | 118 | 220 | 171.4 | 140.72 | 190 | 6 | 18 | 34 | 163 | 145 | 133 | 115 | 35 | 50 |
| 4T-215 A11 | 381 | 114 | 130 | 300 | 235 | 196.87 | 260 | 6 | 22 | - | 104 | 82 | 69 | 47 | 55 | 60 |
| 4T-218 A11 | 450 | 114 | 130 | 300 | 235 | 196.869 | 260 | 6 | 22 | 60 | 92 | 70 | 57 | 35 | 55 | - |
| 4T-224 A15 | 610 | 125 | 146 | 380 | 330.2 | 285.775 | 330.2 | 6 | 27 | 60 | 97 | 70 | 62 | 35 | 55 | - |
| 4T-232 A15 | 810 | 135 | 156 | 380 | 330.2 | 285.775 | 330.2 | 6 | 27 | 60 | 74 | 47 | 39 | 12 | 55 | - |
| Spec Model | L1 | L1 | L2 | M1 | M2 | M3 | N | P | R max | R min | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4T-206 A5 | 14 | 14 | 39 | M16×2 | 4-M10 | 4-M6 | 73 | 20 | 18 | 7.5 | 31 | 12 |
| 4T-208 A5 | 20 | 17 | 41 | M20×2.5 | 4-M12 | 6-M10 | 95 | 25 | 22.3 | 11.8 | 35 | 14 |
| 4T-208 A6 | 20 | 18 | 41 | M20×2.5 | 4-M12 | 4-M6 | 95 | 25 | 22.3 | 118 | 35 | 14 |
| 4T-210 A8 | 18 | 25 | 46 | M20×2.5 | 4-M16 | 4-M8 | 110 | 30 | 30.8 | 11.3 | 40 | 16 |
| 4T-212 A8 | 22 | 25 | 54 | M20×2.5 | 4-M16 | 4-M8 | 130 | 30 | 48.8 | 12.3 | 50 | 18 |
| 4T-215 A11 | 30 | 33 | 63 | M30×3.5 | 4-M20 | 4-M10 | 165 | 43 | 48.8 | 23.3 | 62 | 25.5 |
| 4T-218 A11 | - | 28 | 66.5 | M30×3.5 | 4-M20 | 4-M10 | 165 | 43 | 70.75 | 24.25 | 62 | 25.5 |
| 4T-224 A15 | - | 34 | 76 | M30×3.5 | 8-M24 | 4-M12 | 180 | 60 | 93.5 | 24.5 | 65 | 25 |
| 4T-232 A15 | - | 33 | 97 | M30×3.5 | 8-M24 | 4-M12 | 210 | 80 | 196.5 | 25.5 | 74 | 25 |
Subject to technology changes without prior information
