| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | NCH-ER20，NCH-ER25，NCH-ER32 etc |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union, T/T |
| Supply Ability: | 1000 SETS/M |
| Product Name: | Wrench For Clamping Nut Accessories Of Milling Collet Chuck | Clamping Nut And Wrench: | Cast Steel/Alloy Steel/Tool Steel |
|---|---|---|---|
| Usage: | Accessorires For Chuck Mouting | Feature: | High Precision/Long Lifetime/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | milling machine collet,end mill collet |
||

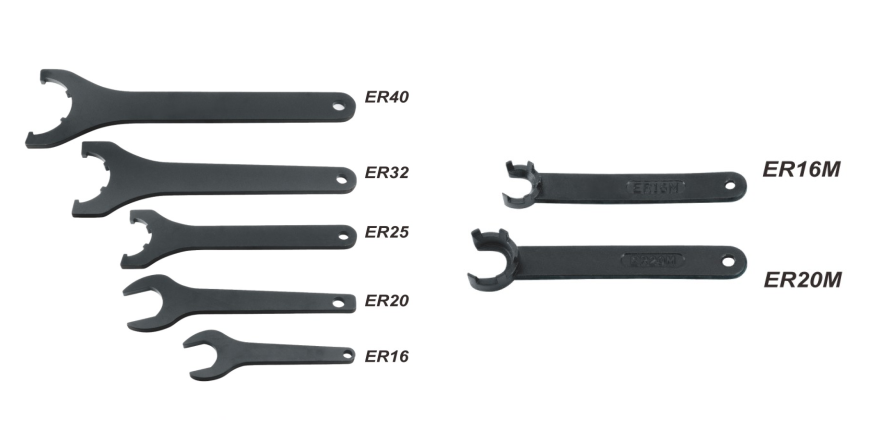

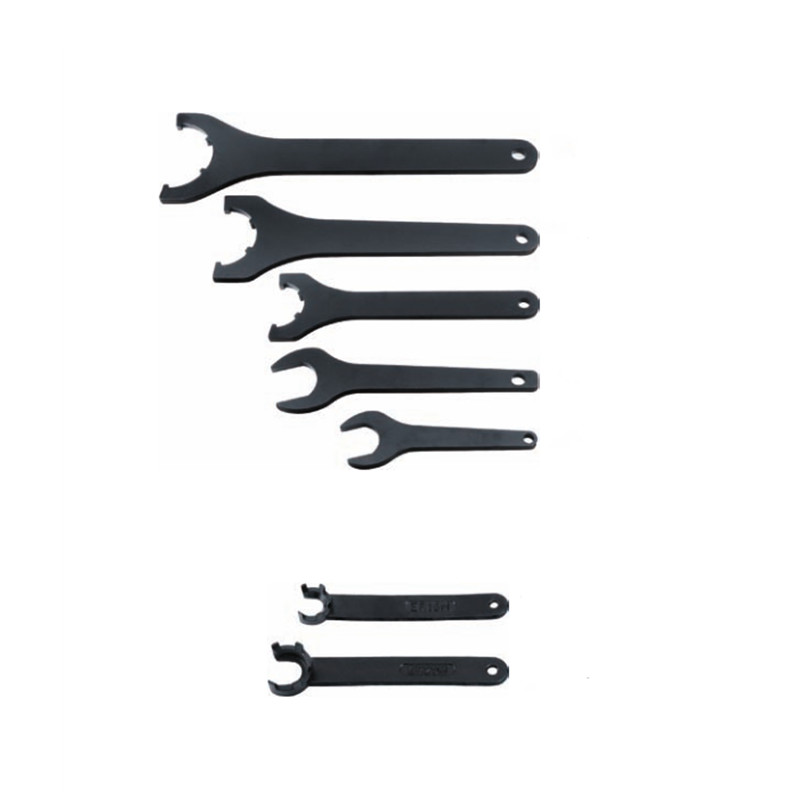

Wrench for clamping nut accessories of milling collet chuck

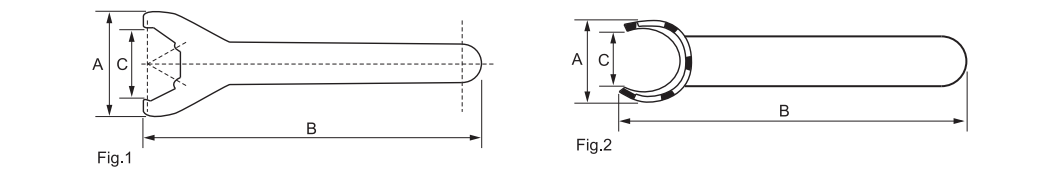

| Model No. | A | C | B | Fig. |
|---|---|---|---|---|
| NCH-ER40 | 90 | 58 | 289 | 1 |
| NCH-ER32 | 75 | 46.5 | 253 | 1 |
| NCH-ER25 | 65 | 37 | 206 | 1 |
| NCH-ER20 | 28.5 | 15.5 | 129 | 1 |
| NCH-ER16 | 22.5 | 12.5 | 117 | 1 |
| NCH-ER11 | 17 | 8.5 | 95 | 1 |
| NCH-ER16M | 45 | 25 | 137 | 2 |
| NCH-ER20M | 54 | 30 | 162 | 2 |
