| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | DR-06,DR-08, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | DR 3 jaw draw down power chuck | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong lathe chuck, strong chucks |
||

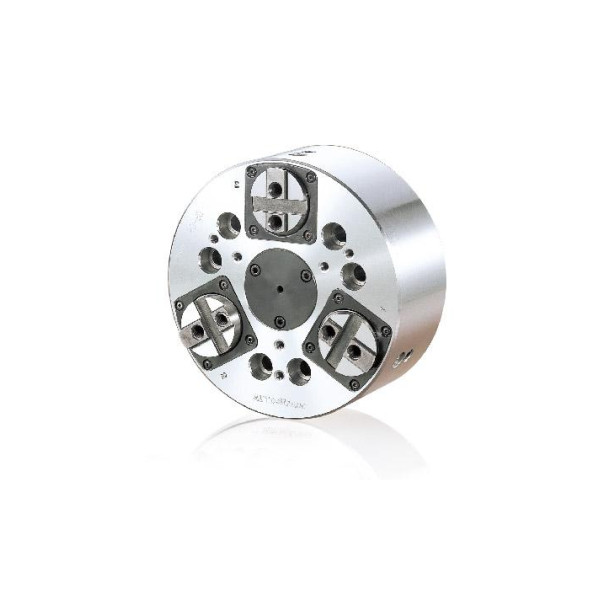

DR 3 jaw draw down power chuck
3 jaw draw down power chuck
For the clampped work-piece is appressed to the surtace, chucks are suitable for heavy machining.
Chuck Actutors with cylindrical structure are durable and ensures high clamping repeatability.
Accurate self-centering and pull back features are adequate or precise length control machining requirements.
UNIT: mm
| SPEC Model | Plunger Stroke (mm) | Jaw Stroke | Max. Pull | Max. Gripping | Max. Operating | Max. Speed | N.W. (kg) | Moment I(kg‧m2) | Matching Cylinder | Matching Soft Jaw | Gripping O.D.Range |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-06 | 10 | 7.2 | 15(1530) | 25(2549) | 2.1(21.4) | 3500 | 15 | 0.05 | MS105C | DR06-HC | Ø35-Ø165 |
| DR-08 | 10 | 7.2 | 25(2590) | 45(4589) | 2.5(25.5) | 3000 | 25 | 0.14 | MS125C | DR08-HC | Ø40-Ø210 |

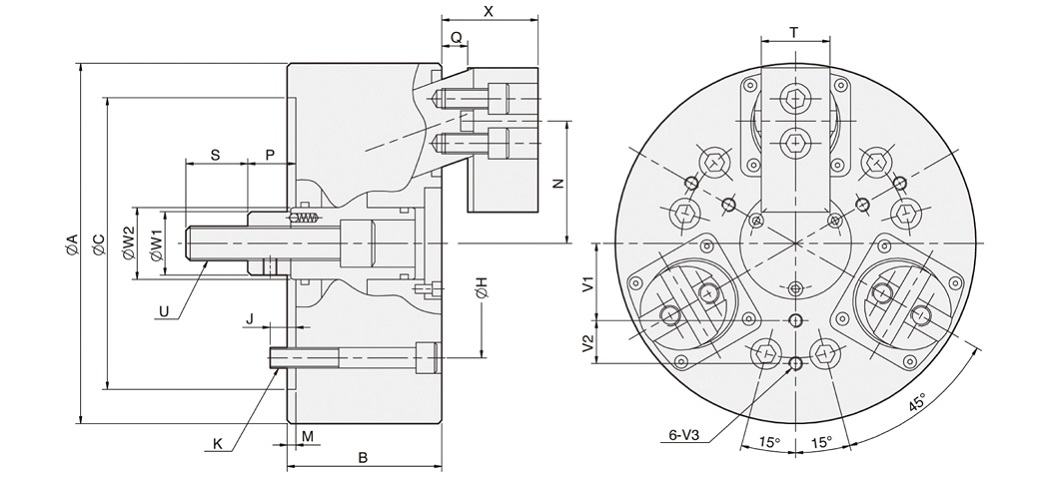

| DIM Model | A | B | C | H | J | K | M | Nmax. | Nmin. | Pmax. | Pmin. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-06 | 165 | 85 | 140 | 104.8 | 16 | 6xM10 | 5 | 58 | 54.4 | 33 | 23 |
| DR-08 | 210 | 90 | 170 | 133.4 | 15 | 6xM12 | 5 | 71.3 | 67.7 | 38 | 28 |
| DIM Model | Qmax. | Qmin. | S | T | U | W1 | W2 | Xmax. | Xmin. | V1 | V2 | V3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-06 | 14 | 4 | 36 | 35 | M16x2.0 | 32 | 33.5 | 45 | 35 | 35 | 20 | M6x12 |
| DR-08 | 15 | 5 | 36 | 40 | M20x2.5 | 37 | 42 | 56 | 46 | 45 | 25 | M8x16 |
