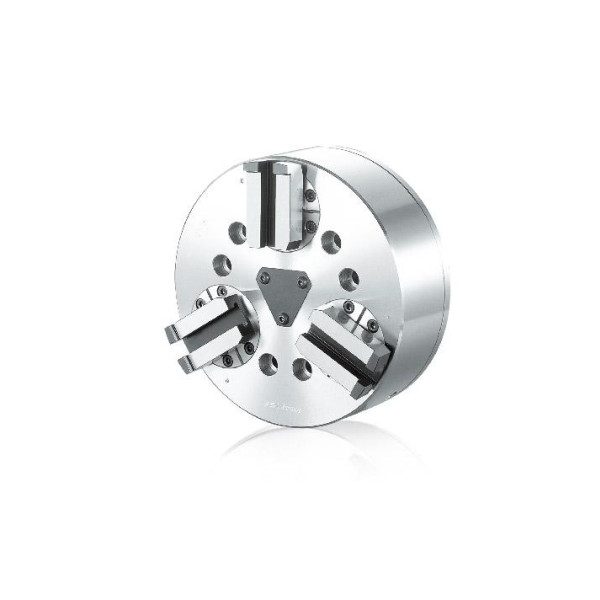

BL 3 jaw ball swing lock chuck

Basic Information
Place of Origin: CHINA
Brand Name: Auto Strong
Model Number: BL-12,
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000sets/M
Product Name: 3 Jaw Ball Swing Lock Chuck Material: Cast Steel
Usage: Fixture/Gripping Feature: High Precision/Stable/High Quality
Size: Refer To The Specification Service: ODM/OEM Is Accpetable
High Light:

auto strong chucks

,

strong chucks

3 jaw ball swing lock chuck

The chuck can attract the workpiece and hold it on.
The jaw operates in two stages :
Clamping pull back, so it can hold the workpiece exactly on the position in front of the chuck, and make it under the stabile situation.
The chuck can grasp the workpiece on both O.D. and I.D. clamping.
The chuck can switch between O.D. and I.D. clamping mode by a simple operation.
The chuck can grasp the part of the taper. The chcuk can exactly grasp the black surface of the cast irons, which has draft.
So the discard process can be ignored on the chucking part of the workpiece.(It can grasp up to a 20 degree taper when using a clipper.)
The jaw can equalize on the O.D. clamping, so it can grasp the workpiece steady. (Jaw self-equalizing to max 5°)
Dustproof performance is excellent. It is differ from regular general purpose chuck. It is structurally dustproof. Especially there is a dustproof seal in the part of lock arm to prevent the dust.

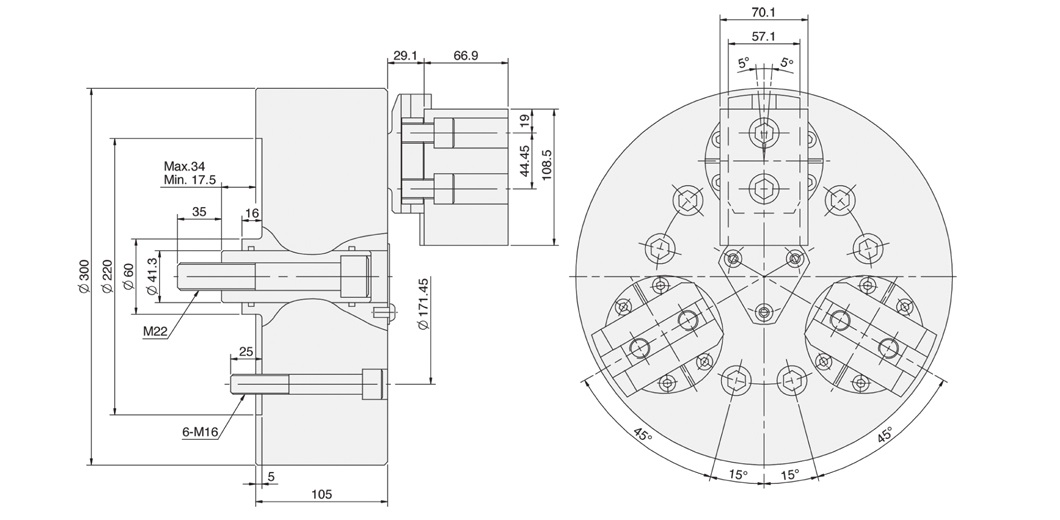

BL 3 jaw ball swing lock chuck 0

UNIT : mm



SPEC
Model
Plunger
Stroke
(mm)
Jaw Stroke
(In Dia.)
(mm)
Max.Pull
Force
(kgf)

Max.

Gripping
Force
(kn)

Max.

Operating
Pressure
(kgf/cm2)

Max.

Speed
(r.p.m.)

N.W.(kg)

Moment
Of Inertia

I(kg‧m2)

Matching
Cylinder

Matching
Soft Jaw



Gripping Range
O.D.Range
I.D. Range
BL-12 17.5 12.4

40.7

(4152)

122

(12440)

2.8(28.5)

2800 65 0.18 MS150C BL12-0HC Ø63-Ø240 / Ø127-Ø305
