| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | F66A8, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | F66A8 High speed and light weight type strong finger chuck for aluminum wheel | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality/Light | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong lathe chuck, strong chucks |
||

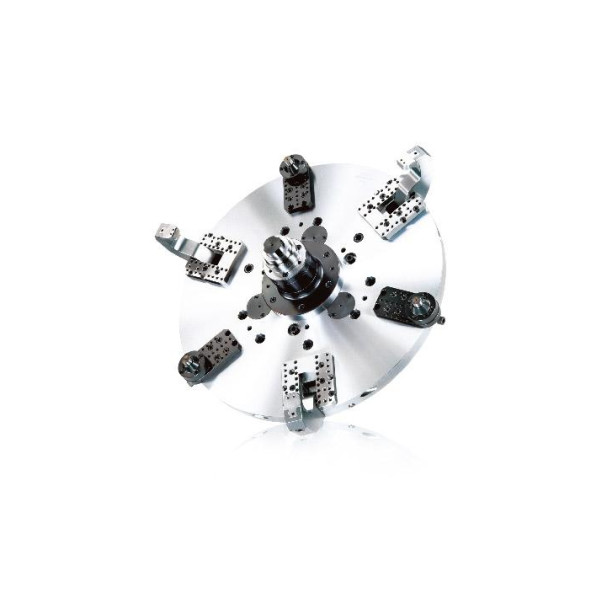

F66A8 High speed and light weight type strong finger chuck for aluminum wheel
High speed and light weight type strong finger chuck for aluminum wheel
All sliding surfaces are hardened and ground for accurate actual running and long service repeatability.
Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA, B5-9 type A spindles.
UNIT : mm
| SPEC Model | Applicable Wheel Size | Out Dai. Of Chuck (mm) | Available Spindle Nose | Max.Pull Force (kgf) | Max.Gripping Force (kn) | Max.Operating Mpa (kgf/cm2) | Max.Speed (r.p.m.) | Weight (Without Jigs) (kg) | Matching Cylinder |
|---|---|---|---|---|---|---|---|---|---|
| F66A8 | 19"-24" | 660 | A2-8 | 3000 | 3300 | 2.9(29.5) | 1500 | 182 | MS125C35 |
