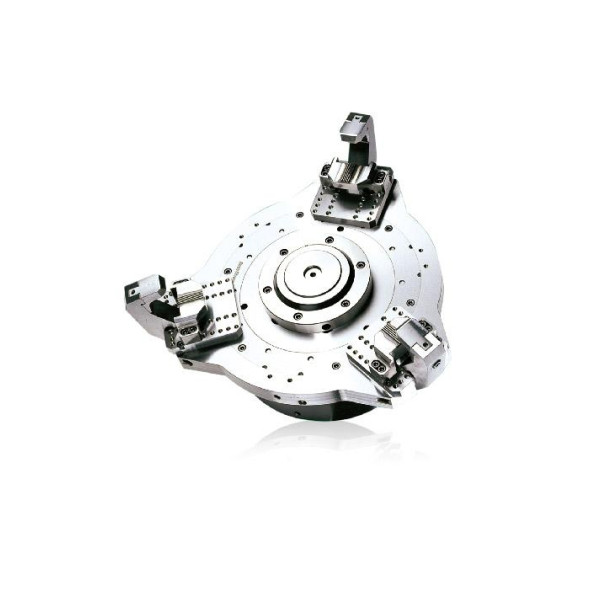

F52A8 High speed and light weight type strong finger chuck for aluminum wheel

Basic Information
Place of Origin: CHINA
Brand Name: Auto Strong
Model Number: F52A8,
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000sets/M
Product Name: High Speed And Light Weight Type Strong Finger Chuck For Aluminum Wheel Material: Cast Steel
Usage: Fixture/Gripping Feature: High Precision/Stable/High Quality/Light
Size: Refer To The Specification Service: ODM/OEM Is Accpetable
High Light:

auto strong chucks

,

strong chucks

High speed and light weight type strong finger chuck for aluminum wheel

All sliding surfaces are hardened and ground for accurate actual running and long service repeatability.
Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA, B5-9 type A spindles.



F52A8 High speed and light weight type strong finger chuck for aluminum wheel 0

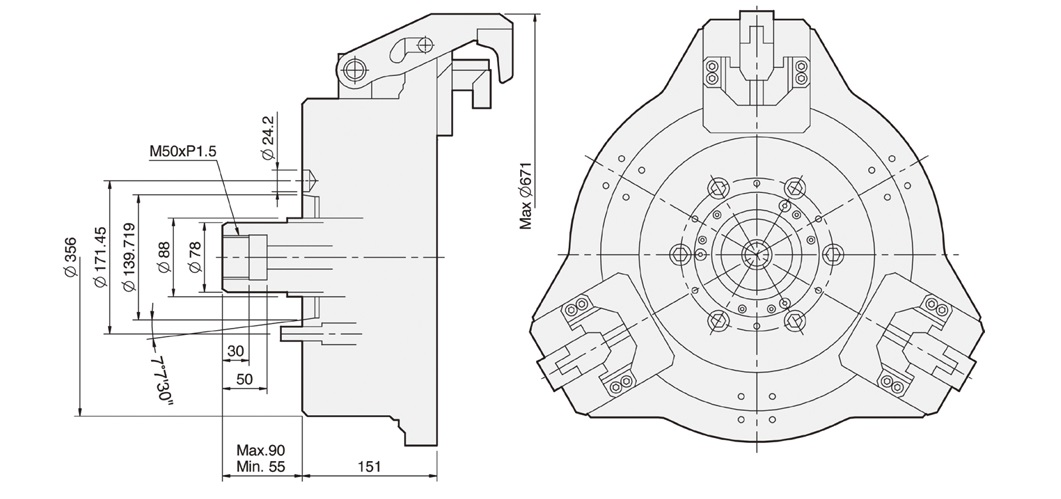

UNIT: mm

SPEC
Model
Applicable
Wheel Size
Out Dai.
Of Chuck
(mm)

Available
Spindle

Nose

Max.Pull
Force
(kgf)

Max.

Gripping
Force
(kn)

Max.Operating
Pressure
Mpa
(kgf/cm2)
Max.Speed
(r.p.m.)

Weight
(Without

Jigs)
(kg)

Matching
Cylinder
F52A8 12"-18" 521 A2-8 3000 3300 2.9(29.5) 2800(18"2200) 98 MS125C35
