| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | MS250C,MS300C, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MS Non through-hole rotary hydraulic cylinder(valve and switch brackets included) | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong chucks, strong chucks |
||

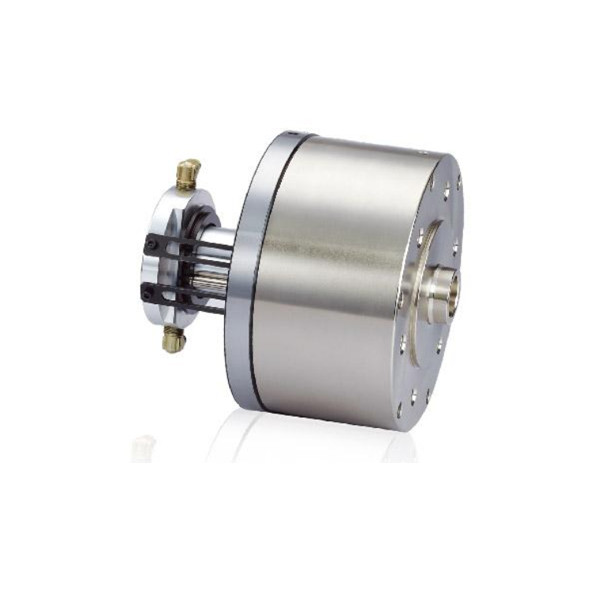

MS Non through-hole rotary hydraulic cylinder(valve and switch brackets included)
Through-hole for coolant, oil or air with thread for rotary unit.
Mounting from the rear or front side.
Built-in safety check valves and bracket for proximity switch. (The proximity switches are extra option.)
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MS250C | 250 | 481.5 / 453.6 | 227(23147)/ 214(21822) | 60 | 4.9(50) | 2000 | 0.87 | 78 | 2 |
| MS300C | 300 | 697.5 / 658.6 | 262(26716)/ 247(25186) | 60 | 4.0(40.8) | 1500 | 1.6 | 106 | 3 |

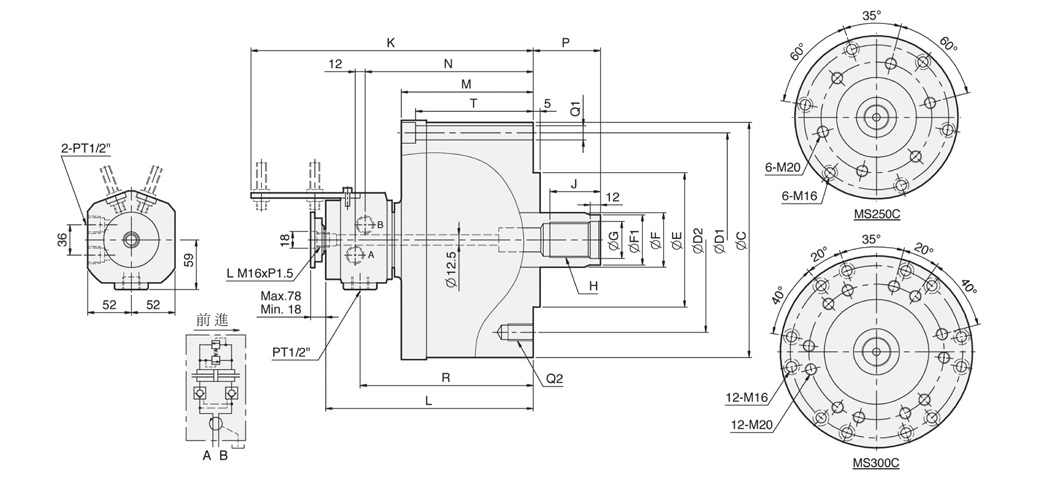

| DIM Model | C | D1 | D2 | E(h7) | F | F1 | G | H | J | K | L | M | N | Pmax. | Pmin. | Q1 | Q2 | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS250C | 300 | 275 | 220 | 160 | 65 | 62 | 44 | M42x3.0 | 60 | 356 | 177 | 177 | 220 | 85 | 25 | 6-Ø17 | 6-M20 | 226 | 160 |
| MS300C | 355 | 330 | 270 | 210 | 75 | 70 | 50 | M48X3.0 | 70 | 359 | 182 | 182 | 223 | 85 | 25 | 12-Ø17 | 12-M20 | 229 | 165 |
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MS250C | 250 | 481.5 / 453.6 | 227(23147)/ 214(21822) | 60 | 4.9(50) | 2000 | 0.87 | 78 | 2 |
| MS300C | 300 | 697.5 / 658.6 | 262(26716)/ 247(25186) | 60 | 4.0(40.8) | 1500 | 1.6 | 106 | 3 |
| DIM Model | C | D1 | D2 | E(h7) | F | F1 | G | H | J | K | L | M | N | Pmax. | Pmin. | Q1 | Q2 | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS250C | 300 | 275 | 220 | 160 | 65 | 62 | 44 | M42x3.0 | 60 | 356 | 177 | 177 | 220 | 85 | 25 | 6-Ø17 | 6-M20 | 226 | 160 |
| MS300C | 355 | 330 | 270 | 210 | 75 | 70 | 50 | M48X3.0 | 70 | 359 | 182 | 182 | 223 | 85 | 25 | 12-Ø17 | 12-M20 | 229 | 165 |
