| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | MS105C,MS125C,MS125C35,MS150C,MS200C, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MS Non through-hole rotary hydraulic cylinder(valve and switch brackets included) | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong chucks, strong chucks |
||

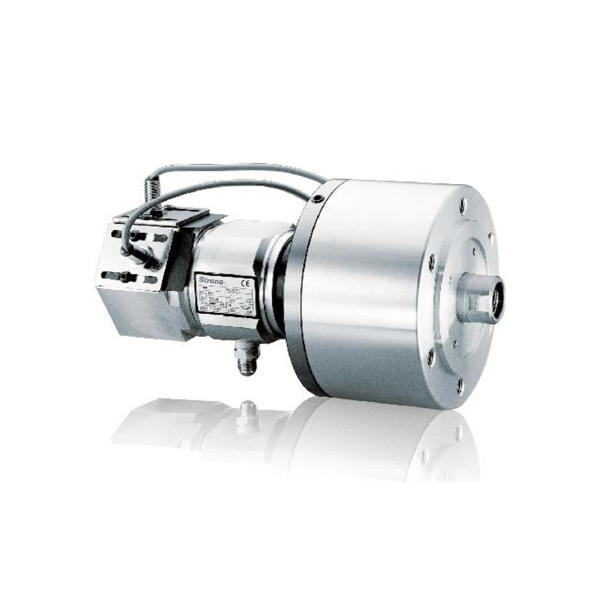

MS Non through-hole rotary hydraulic cylinder(valve and switch brackets included)
Built-in safty check valves and detective plate.
The proximity switches are extra option.
UNIT : mm
| SPEC Model | Piston Area (cm2) Push Side / Pull Side | Max. Draw Bar Force KN(kgf) Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|
| MS105C | 84 / 79 | 29 (2957) | 20 | 4.0(40.8) | 6000 | 0.0125 | 7.6 | 0.8 |
| MS125C | 120 / 113 | 42 (4283) | 25 | 4.0(40.8) | 6000 | 0.022 | 10.5 | 0.8 |
| MS125C35 | 120 / 113 | 42 (4283) | 35 | 4.0(40.8) | 6000 | 0.022 | 10.5 | 0.8 |
| MS150C | 174 / 160 | 60 (6118) | 30 | 4.0(40.8) | 5500 | 0.047 | 14 | 0.8 |
| MS200C | 312 / 290 | 108 (11013) | 35 | 4.0(40.8) | 5500 | 0.097 | 22.5 | 0.8 |

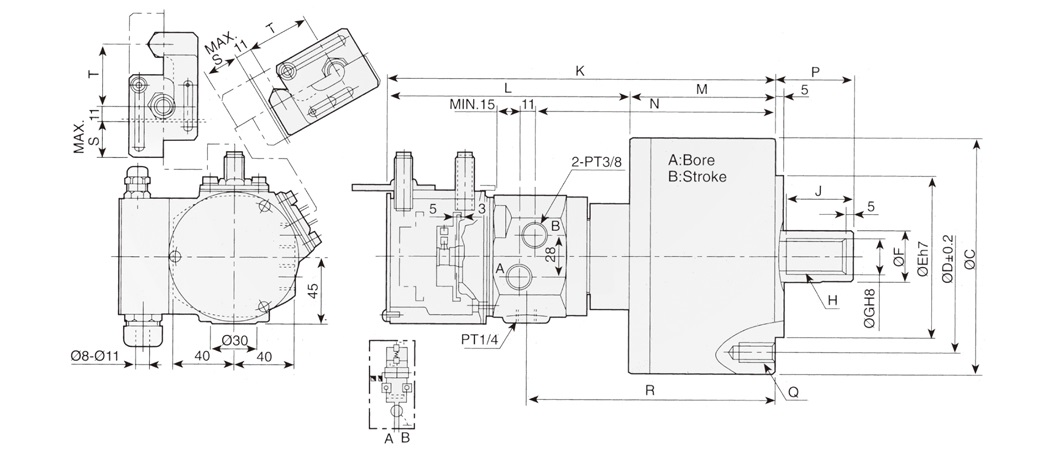

| DIM Model | A | B | C | D | E | F | G | H | j |
|---|---|---|---|---|---|---|---|---|---|
| MS105C | 105 | 20 | 135 | 100 | 80 | 30 | 21 | M20xP2.5 | 35 |
| MS125C | 125 | 25 | 160 | 130 | 110 | 35 | 25 | M24xP3.0 | 44 |
| MS125C35 | 125 | 30 | 160 | 130 | 110 | 35 | 25 | M24xP3.0 | 44 |
| MS150C | 150 | 30 | 190 | 130 | 110 | 45 | 31 | M30xP3.5 | 45 |
| MS200C | 200 | 35 | 245 | 145 | 120 | 55 | 37 | M36xP4.0 | 60 |
| DIM Model | K | L | M | N | Pmax. | Pmin. | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|
| MS105C | 257 | 168 | 89 | 152 | 45 | 25 | 6-M10x20 | 158 | 23 | 46 |
| MS125C | 265 | 168 | 97 | 160 | 51 | 26 | 6-M12x24 | 166 | 23 | 46 |
| MS125C35 | 269 | 168 | 101 | 164 | 57 | 22 | 6-M12x24 | 170 | 23 | 46 |
| MS150C | 274 | 168 | 106 | 169 | 56 | 26 | 12-M12x24 | 175 | 23 | 46 |
| MS200C | 288 | 168 | 122 | 183 | 69 | 34 | 12-M16x30 | 189 | 28 | 46 |
Draw bar pull force : Pressure 4.0 MPa(40.8kgf / cm²)
Total leakage : Pressure 3.0 MPa(30.6kgf / cm²) and oil temperature 50°C
Proximity switch : Model BESS 16-329-E4-Y (BALLUFF) DC 12 / 24V 200mA NPN
