| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | MM1036A,MM1246A, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MM High speed and compact through-hole rotary hydraulic cylinder | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong lathe chuck, strong chucks |
||

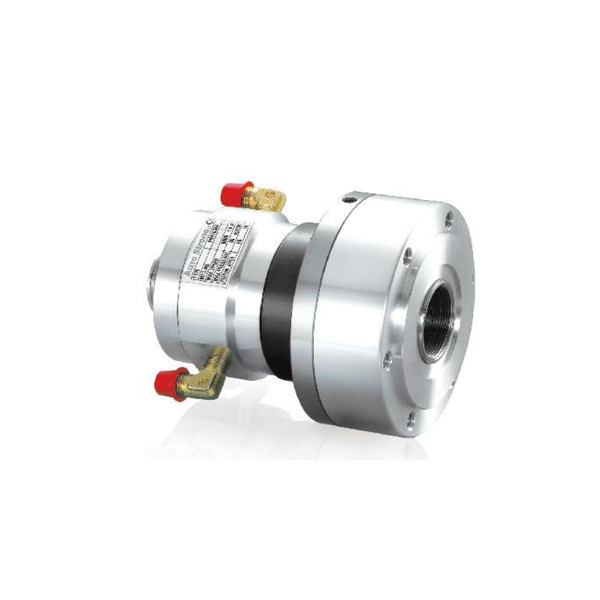

MM High speed and compact through-hole rotary hydraulic cylinder
Compact hydraulic cylinder design with light weight can reduce the spindle loading while running in high speed.
Built-in check valve in safety auto lock and pressure relief valve in case of power failure occur.
New model developed for rear installation.
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side/Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | L/min |
|---|---|---|---|---|---|---|---|---|---|
| MM1036A | 100 | 64 / 60 | 23.8(2427) 22.3(2274) | 5 | 4.0(40.8) | 8000 | 0.013 | 7 | 0.8 |
| MM1246A | 125 | 100 / 89 | 38(3875) 33(3365) | 15 | 4.0(40.8) | 7000 | 0.026 | 9.8 | 3 |

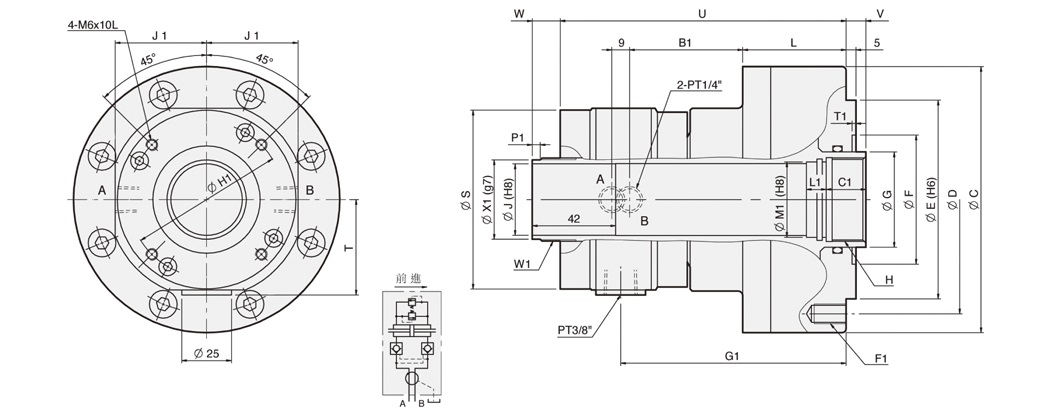

DIE MODEL | C | D | E | F | G | H | J | L | T | U | Vmax. | Vmin. | Wmax. | Wmin. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM1036A | 134 | 115 | 100 | 65 | 48 | M42xP1.5 | 36 | 52 | 48 | 144 | 10 | 5 | 17 | 12 |
| MM1246A | 155 | 130 | 100 | 80 | 65 | M55xP2.0 | 46 | 76 | 61 | 179 | 15 | 0 | 40 | 25 |
DIE MODEL | B1 | C1 | F1 | G1 | H1 | J1 | L1 | M1 | Q1 | T1 | W1 | P1 | X1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM1036A | 57 | 20 | 6-M10x15 | 113.5 | 76 | 46 | 10 | 38 | M4x9L | 2 | M42xP1.5 | 2 | 40 |
| MM1246A | 59.5 | 30 | 12-M10x20 | 140 | 105 | 59 | 15 | 50 | M6x10L | 6 | M52xP1.5 | 9 | 50 |
