| Product Name: | MK Super high speed through-hole compact rotary hydraulic cylinder | Material: | |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

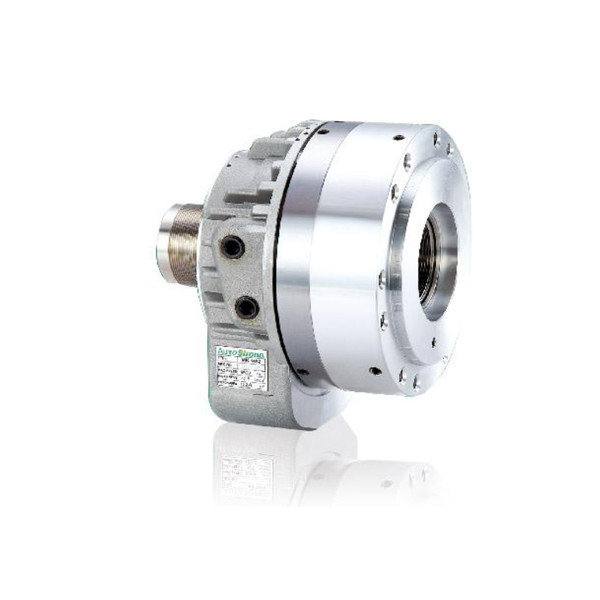

MK Super high speed through-hole compact rotary hydraulic cylinder
Super high speed through-hole compact rotary hydraulic cylinder
The compact hydraulic cylinder which is shorten the length about 30% and light weight can reduce the spindle loading while running in high speed.
Built-in check valve in safety auto lock and pressure relief valve in case of power failure occurs.
New model developed for rear locking installation.
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area (cm2) Push Side/Pull Side | Max. Draw Bar Force KN(kgf) Push Side / Pull Side | Piston Stroke (mm) | Max.Operating Pressure MPa (kgf / cm2) | Max.Speed (r.p.m.) | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MK-1246 | 128 | 102.6 / 91.4 | 43.64466) / 38.9(3967) | 16 | 4.5(45.9) | 8000 | 0.017 | 8.6 | 3.1 |
| MK1246F | 128 | 102.6 / 91.4 | 43.6(4466) / 38.9(3967) | 16 | 4.5(45.9) | 8000 | 0.018 | 9.2 | 3.1 |
| MK1452 | 145 | 133 / 122.6 | 56.5(5761) / 52.1(5313) | 22 | 4.5(45.9) | 6500 | 0.028 | 12 | 3.9 |
| MK-1452F | 145 | 133 / 122.6 | 56.5(5761) / 52.1(5313) | 22 | 4.5(45.9) | 6500 | 0.029 | 12.5 | 3.9 |
| MK1768 | 170 | 166 / 152 | 70.7(7209) / 64.7(6597) | 25 | 4.5(45.9) | 5500 | 0.065 | 19.4 | 4.5 |
| MK-1775 | 170 | 166 / 152 | 70.7(7209) / 64.7(6597) | 25 | 4.5(45.9) | 5500 | 0.06 | 17.8 | 4.5 |
| MK1778 | 170 | 166 / 152 | 70.7(7209) / 64.7(6597) | 25 | 4.5(45.9) | 5500 | 0.059 | 17.4 | 4.5 |
| MK1881 | 180 | 187 / 171.9 | 79.5(8107) / 73.1(7454) | 25 | 4.5(45.9) | 4800 | 0.087 | 24 | 4.5 |

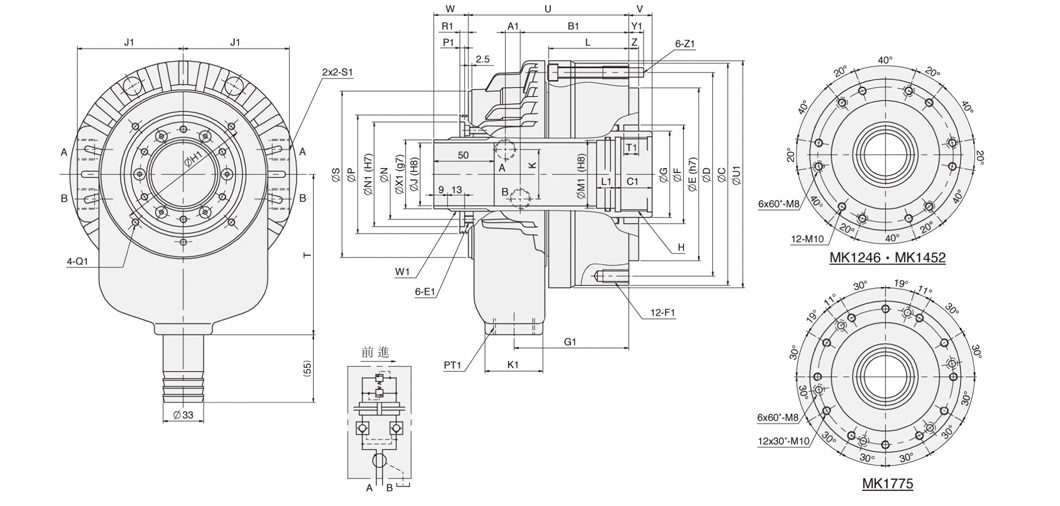

| DIM Model | A1 | B1 | C1 | E1 | F1 | G1 | H1 | J1 | K1 | L1 | M1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK-1246 | 8.5 | 79.5 | 25 | M6x10 | 12-M10x20 | 84 | 98 | 76 | 47 | 15 | 50 |
| MK1246F | 8.5 | 89.5 | 30 | M6x10 | 6-M10x20 | 94 | 98 | 76 | 47 | 15 | 50 |
| MK1452 | 9 | 88 | 30 | M6x12 | 12-M10x20 | 93 | 110 | 86 | 47 | 15 | 55 |
| MK-1452F | 9 | 95 | 30 | M6x12 | 6-M10x20 | 100 | 110 | 86 | 47 | 15 | 55 |
| MK1768 | 17.5 | 99 | 30 | M6x12 | 12-M10x20 | 110 | 155 | 100 | 47 | 15 | 70 |
| MK-1775 | 17.5 | 99 | 30 | M6x12 | 12-M10x20 | 110 | 155 | 100 | 47 | 15 | 80 |
| MK1778 | 17.5 | 99 | 30 | M6x12 | 12-M10x20 | 110 | 155 | 100 | 47 | 15 | 82 |
| MK1881 | 17 | 106 | 35 | M6x12 | 12-M10x20 | 115 | 166 | 105 | 47 | 15 | 85 |
| DIM Model | N1 | P1 | Q1 | R1 | S1 | T1 | U1 | W1 | X1 | Y1 | Z1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK-1246 | 76 | 4 | M5x6 | 9 | PT 3/8 | 12 | 165 | M52x1.5 | 50 | 15 | M8 |
| MK1246F | 76 | 4 | M5x6 | 9 | PT 3/8 | 8 | 165 | M52x1.5 | 50 | 15 | M8 |
| MK1452 | 85 | 4 | M6x6 | 16 | PT 3/8 | 12 | 184 | M58x1.5 | 56 | 12 | M8 |
| MK-1452F | 85 | 4 | M6x6 | 16 | PT 3/8 | 8 | 184 | M58x1.5 | 56 | 15 | M8 |
| MK1768 | 108 | 4 | M6x10 | 7 | PT 1/2 | 12 | 216 | M84x2.0 | 81 | 18 | M10 |
| MK-1775 | 108 | 4 | M6x10 | 7 | PT 1/2 | 12 | 216 | M84x2.0 | 81 | 18 | M10 |
| MK1778 | 108 | 4 | M6x10 | 7 | PT 1/2 | 12 | 216 | M84x2.0 | 81 | 18 | M10 |
| MK1881 | 113 | 4 | M6x10 | 16.5 | PT 1/2 | 12 | 226 | M89x2.0 | 86 | 19 | M10 |
| DIM Model | C | D | D1 | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|
| MK-1246 | 162 | 147 | 147 | 130 | 75 | 65 | M55x2.0 | 46 | 40 | 58 |
| MK1246F | 162 | 130 | 147 | 100 | 75 | 65 | M55x2.0 | 46 | 40 | 68 |
| MK1452 | 184 | 165 | 165 | 140 | 80 | 70 | M60x2.0 | 52 | 40 | 68 |
| MK-1452F | 186 | 170 | 165 | 130 | 80 | 70 | M60x2.0 | 52 | 40 | 73 |
| MK1768 | 212 | 195 | 195 | 160 | 105 | 95 | M75x2.0 | 68 | 46 | 71 |
| MK-1775 | 212 | 195 | 195 | 160 | 105 | 95 | M85x2.0 | 75 | 46 | 71 |
| MK1778 | 212 | 195 | 195 | 160 | 105 | 95 | M87x2.0 | 78 | 46 | 71 |
| MK1881 | 222 | 205 | 205 | 168 | 110 | 100 | M90x2.0 | 81 | 46 | 71 |
DIM | N | P | S | T | U | Vmax. | Vmin. | Wmax. | Wmin. | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| MK-1246 | 64 | 85 | 85 | 120 | 120 | 13 | -3 | 44 | 28 | 8 |
| MK1246F | 64 | 85 | 85 | 120 | 130 | 14 | -2 | 44 | 28 | 5 |
| MK1452 | 73 | 96 | 96 | 130 | 130 | 19 | -3 | 53.5 | 31.5 | 8 |
| MK-1452F | 73 | 96 | 96 | 130 | 137 | 21 | -1 | 53.5 | 31.5 | 5 |
| MK1768 | 98 | 121 | 121 | 160 | 157 | 22 | -3 | 50 | 25 | 8 |
| MK-1775 | 98 | 121 | 121 | 160 | 157 | 22 | -3 | 50 | 25 | 8 |
| MK1778 | 98 | 121 | 121 | 160 | 157 | 22 | -3 | 50 | 25 | 8 |
| MK1881 | 103 | 126 | 126 | 175 | 167 | 23 | -2 | 58 | 33 | 8 |
