| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | M0928,M1036,M1038,M1236,M1246,M1546 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | M High speed through-hole rotary hydraulic cylinder | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | Light/High Precision/Stable/High Quality | |
| Usage: | Driving Chucks Working | Service: | ODM/OEM Is Available |
| Highlight: | auto strong lathe chuck, strong chucks |
||

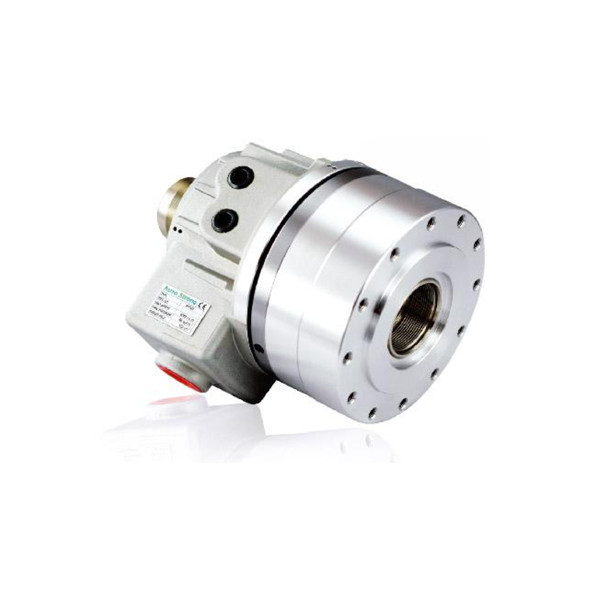

M High speed through-hole rotary hydraulic cylinder
High speed through-hole rotary hydraulic cylinder
Compact and light weight :
Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning.
The largest bore : Comparing with the regular product, it has about 20% larger bore diameter forutilizing the capacity of machinery.
The safety structure : It can retain the gripping force by check valve.
UNIT : mm
| SPEC Model | Piston Dia. (mm) | Piston Area Pull Side | Max. Draw Bar Force | Piston Stroke (mm) | Max. Operating MPa | Max. Speed | Moment Of Inertia I (kg‧m2 ) | Weight (kg) | Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| M0928 | 90 | 53.2 / 48.3 | 19.9(2029)/18(1835) | 10 | 40.8 | 8000 | 0.006 | 5.5 | 3 |
| M1036 | 105 | 71 / 68.5 | 26(2651)/25(2549) | 15 | 40.8 | 8000 | 0.011 | 8.6 | 3 |
| M1038 | 105 | 71 / 66 | 26(2651)/24.5(2498) | 15 | 40.8 | 8000 | 0.011 | 8.5 | 3 |
| M1236 | 125 | 100 / 89 | 38(3875)/33(3365) | 15 | 40.8 | 7000 | 0.019 | 13 | 3 |
| M1246 | 125 | 100 / 89 | 38(3875)/33(3365) | 15 | 40.8 | 7000 | 0.019 | 12 | 3 |
| M1546 | 155 | 161 / 154 | 60(6118)/57.8(5894) | 22 | 40.8 | 6200 | 0.056 | 18 | 3.9 |
| M1552 | 155 | 161 / 150 | 60(6118)/56(5710) | 22 | 40.8 | 6200 | 0.052 | 16.8 | 3.9 |
| M1868 | 180 | 198 / 197 | 74(7546)/73.5(7495) | 25 | 40.8 | 4700 | 0.098 | 28 | 4.2 |
| M1870 | 180 | 198 / 183 | 74(7546)/69(7036) | 25 | 40.8 | 4700 | 0.095 | 26.5 | 4.2 |
| M1875 | 180 | 198 / 183 | 74(7546)/69(7036) | 25 | 40.8 | 4700 | 0.095 | 26 | 4.2 |
| M1878 | 180 | 198 / 183 | 74(7546)/69(7036) | 25 | 40.8 | 4700 | 0.095 | 25.5 | 4.2 |
| M2085 | 205 | 252 / 234 | 94(9585)/88(8973) | 30 | 40.8 | 3800 | 0.15 | 37.5 | 4.5 |
| M2091 | 205 | 252 / 234 | 94(9585)/88(8973) | 30 | 40.8 | 3800 | 0.15 | 37 | 4.5 |
| M2511 | 250 | 348 / 336 | 124(12644)/120(12236) | 23 | 40.8 | 2800 | 0.45 | 57 | 7 |

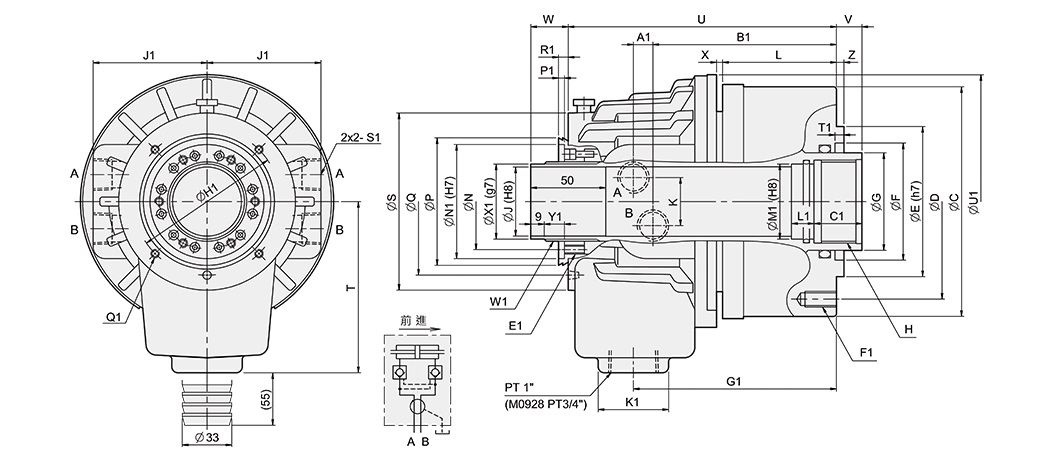

| DIM Model | C1 | E1 | F1 | G1 | H1 | J1 | K1 | L1 | M1 | N1 |
|---|---|---|---|---|---|---|---|---|---|---|
| M0928 | 25 | 8-M6x10 | 6-M8x15 | 110 | 76 | 58 | 44 | 15 | 34 | 53 |
| M1036 | 25 | 6-M5x10 | 6-M10x17 | 126 | 88 | 68 | 53 | 15 | 38 | 64 |
| M1038 | 25 | 6-M5x10 | 6-M10x17 | 126 | 88 | 68 | 53 | 15 | 40 | 64 |
| M1236 | 25 | 4-M6x12 | 12-M10x20 | 135 | 98 | 76 | 47 | 15 | 38 | 76 |
| M1246 | 30 | 4-M6x12 | 12-M10x20 | 135 | 98 | 76 | 47 | 15 | 50 | 76 |
| M1546 | 30 | 4-M6x12 | 12-M10x20 | 145 | 110 | 86 | 47 | 15 | 50 | 85 |
| M1552 | 30 | 4-M6x12 | 12-M10x20 | 145 | 110 | 86 | 47 | 15 | 55 | 85 |
| M1868 | 35 | 4-M6x12 | 12-M10x20 | 166 | 155 | 101 | 47 | 15 | 70 | 108 |
| M1870 | 35 | 4-M6x12 | 12-M10x20 | 166 | 155 | 101 | 47 | 15 | 75 | 108 |
| M1875 | 35 | 4-M6x12 | 12-M10x20 | 166 | 155 | 101 | 47 | 15 | 80 | 108 |
| M1878 | 35 | 4-M6x12 | 12-M10x20 | 166 | 155 | 101 | 47 | 20 | 82 | 108 |
| M2085 | 35 | 4-M6x12 | 12-M12x24 | 182 | 165 | 110 | 47 | 20 | 89 | 120 |
| M2091 | 35 | 4-M6x12 | 12-M12x24 | 182 | 165 | 110 | 47 | 15 | 95 | 120 |
| M2511 | 45 | 4-M6x12 | 12-M16x32 | 197 | 206 | 129 | 55 | 20 | 123 | 160 |
| DIM Model | O1 | P1 | Q1 | R1 | S1 | T1 | U1 | W1 | X1 | B | C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M0928 | 14 | 4 | 4-M4x7 | 5 | PT 1/4" | 5 | 116 | M34x1.5 | 32 | 85 | 120 |
| M1036 | 14 | 4 | 6-M5x12 | 4 | PT 3/8" | 6 | 136 | M44x1.5 | 42 | 101 | 136 |
| M1038 | 14 | 4 | 6-M5x12 | 4 | PT 3/8" | 6 | 136 | M44x1.5 | 42 | 101 | 136 |
| M1236 | 14 | 4 | 4-M5x12 | 6 | PT 1/2" | 6 | 169 | M52x1.5 | 50 | 99 | 155 |
| M1246 | 14 | 4 | 4-M5x12 | 6 | PT 1/2" | 6 | 169 | M52x1.5 | 50 | 99 | 155 |
| M1546 | 14 | 4 | 4-M6x12 | 7 | PT 1/2" | 6 | 187.5 | M58x1.5 | 56 | 103 | 190 |
| M1552 | 16 | 4 | 4-M6x12 | 7 | PT 1/2" | 6 | 187.5 | M58x1.5 | 56 | 103 | 190 |
| M1868 | 16 | 4 | 4-M6x12 | 7.5 | PT 1/2" | 6 | 220 | M84x2 | 81 | 126 | 215 |
| M1870 | 16 | 4 | 4-M6x12 | 7.5 | PT 1/2" | 6 | 220 | M84x2 | 81 | 126 | 215 |
| M1875 | 16 | 4 | 4-M6x12 | 7.5 | PT 1/2" | 6 | 220 | M84x2 | 81 | 126 | 215 |
| M1878 | 16 | 4 | 4-M6x12 | 7.5 | PT 1/2" | 6 | 220 | M84x2 | 81 | 126 | 215 |
| M2085 | 16 | 4 | 4-M6x12 | 7 | PT 1/2" | 6 | 267 | M99x2 | 96 | 141 | 240 |
| M2091 | 16 | 4 | 4-M6x12 | 7 | PT 1/2" | 6 | 267 | M99x2 | 96 | 141 | 240 |
| M2511 | 18 | 5 | 4-M6x12 | 7 | PT 1/2" | 6 | 294 | – | 134.6 | 186 | 310 |
| DIM Model | D | E | F | G | H | J | K | L | N | P | Q | S | T | U | Vmax. | Vmin. | Wmax. | Wmin. | X | Z | A1 | B1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M0928 | 100 | 80 | 65 | 44 | M38x1.5 | 28 | 25 | 54 | 44 | 59 | 65 | 90 | 105 | 156 | 14 | 4 | 35 | 25 | 3 | 5 | 9 | 108 |
| M1036 | 115 | 100 | 65 | 48 | M42x1.5 | 36 | 32 | 62 | 55 | 73 | 88 | 104 | 115 | 174.5 | 15 | 0 | 39 | 24 | 2.5 | 5 | 11 | 120.5 |
| M1038 | 115 | 100 | 65 | 50 | M44x1.5 | 38 | 32 | 71 | 55 | 73 | 88 | 104 | 115 | 174.5 | 15 | 0 | 39 | 24 | 2.5 | 5 | 11 | 120.5 |
| M1236 | 130 | 100 | 80 | 65 | M42x1.5 | 36 | 36 | 67 | 64 | 85 | 98 | 118 | 114 | 179 | 15 | 0 | 40 | 25 | 4 | 5 | 11 | 126.5 |
| M1246 | 130 | 100 | 80 | 65 | M55x2 | 46 | 36 | 67 | 64 | 85 | 98 | 118 | 114 | 179 | 15 | 0 | 40 | 25 | 4 | 5 | 11 | 126.5 |
| M1546 | 170 | 130 | 85 | 65 | M55x2 | 46 | 36 | 75 | 73 | 96 | 114 | 137 | 130 | 191 | 22 | 0 | 47 | 25 | 4 | 5 | 11 | 136 |
| M1552 | 170 | 130 | 85 | 70 | M60x2 | 52 | 36 | 75 | 73 | 96 | 114 | 137 | 130 | 191 | 22 | 0 | 47 | 25 | 4 | 5 | 11 | 136 |
| M1868 | 190 | 160 | 120 | 85 | M75x2 | 68 | 36 | 84 | 98 | 121 | 140 | 166 | 160 | 225 | 25 | 0 | 50 | 25 | 4 | 5 | 17.5 | 152.5 |
| M1870 | 190 | 160 | 120 | 95 | M78x2 | 70 | 36 | 84 | 98 | 121 | 140 | 166 | 160 | 225 | 25 | 0 | 50 | 25 | 4 | 5 | 17.5 | 152.5 |
| M1875 | 190 | 160 | 120 | 95 | M85x2 | 75 | 36 | 84 | 98 | 121 | 140 | 166 | 160 | 225 | 25 | 0 | 50 | 25 | 4 | 5 | 17.5 | 152.5 |
| M1878 | 190 | 160 | 120 | 95 | M87x2 | 78 | 36 | 84 | 98 | 121 | 140 | 166 | 160 | 225 | 25 | 0 | 50 | 25 | 4 | 5 | 17.5 | 152.5 |
| M2085 | 215 | 180 | 140 | 110 | M93x2 | 85 | 36 | 93 | 108 | 138 | 158 | 182 | 185 | 248 | 30 | 0 | 55 | 25 | 3 | 5 | 21 | 166.5 |
| M2091 | 215 | 180 | 140 | 110 | M100x2 | 91 | 36 | 93 | 108 | 138 | 158 | 182 | 185 | 248 | 30 | 0 | 55 | 25 | 3 | 5 | 21 | 166.5 |
| M2511 | 215 | 230 | 166 | 140 | M130x2 | 117.5 | 36 | 89 | 148 | 178 | 190 | 232 | 215 | 290 | 24 | 1 | 38 | 15 | 3 | 6 | 27 | 184.5 |
