600-275 Pneumatic power chuck

Basic Information
Place of Origin: CHINA
Brand Name: NTH Cooperated Brand
Model Number: 600-275,
Minimum Order Quantity: 1 set
Price:Negotiation
Packaging Details:Good and firm package is suitable for the sea and air shipping
Delivery Time: 3work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name:600-275 Pneumatic power chuck Material: Cast Steel
Function: Feature: High Precision/Stable/High Quality
Usage: Fixture/Gripping Service: ODM/OEM Is Accpetable
Highlight:

auto strong lathe chuck, strong chucks

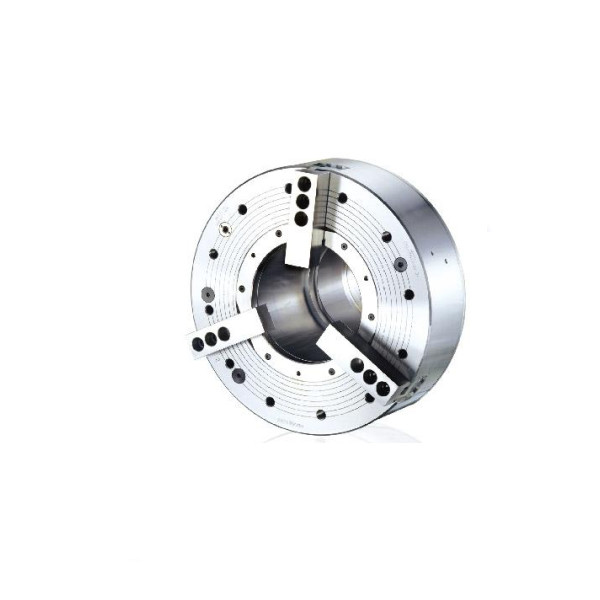

600-275 Pneumatic power chuck

Pneumatic power chuck



Air chuck for external clamping with built-in pneumatic cylinder.
Fast and clamping jaw stroke.
Clamping pressure control.
Clamping stroke control.

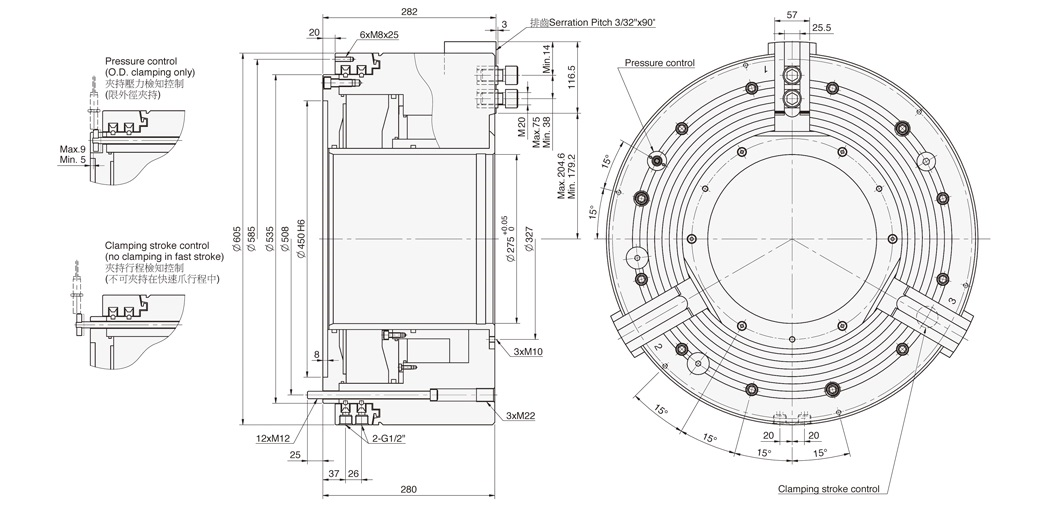

600-275  Pneumatic power chuck 0

UNIT : mm

SPEC
Model

Through-

Hole

(mm)

Total
Stroke/

Jaw
(mm)

Fast
Stroke/

Jaw
(mm)

Clamping
Stroke/

Jaw
(mm)

Piston Area
(cm2)

Operating

Pressure

Min.-Max.

(bar)

Gripping*
Force
(KN.)

Max.

Speed
(r.p.m.)

Weight
(kg)
Moment
Of Inertia
I
(kg‧m2 )
Air*
Consumption
(L)
600-27527525.416.98.59542-10180110036020.639.5

*When operating pressure at 6 bar.
