| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | CR42-140,CR60-170,CR60-220, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | CR Collet chuck for cylindrical center mount | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

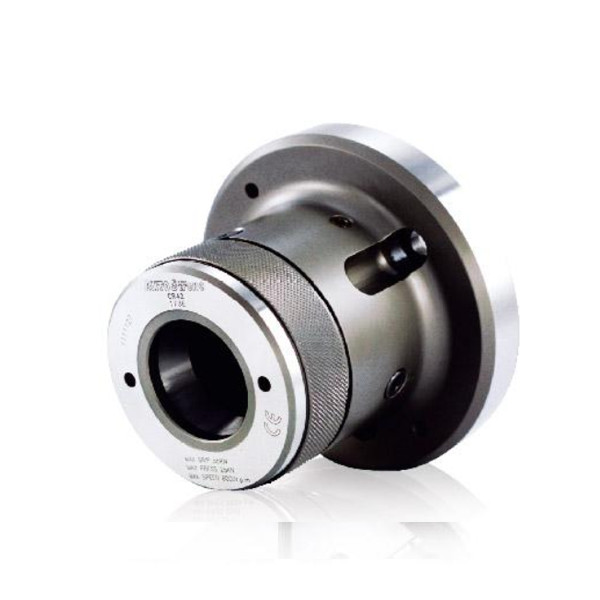

CR Collet chuck for cylindrical center mount
Collet chuck for cylindrical center mount
Collet chucks with bayonet catch are mainly used for chucking bar work on NC / CNC lathes.
The bar can be fed in through the chuck.
Profiles can also be chucked with the appropriate collets.
UNIT : mm
| SPEC Model | Matching Spindle | Bar Capacity (mm) | Sleeve Stroke (mm) | Max.Push Force KN(kgf) | Max.Gripping Force KN(kgf) | Max.Speed (r.p.m.) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CR42-140 | 140 | 42 | 7 | 25 (2549) | 55 (5608) | 6000 | 6.2 |
| CR60-170 | 170 | 60 | 7 | 30 (3059) | 65 (6628) | 5000 | 11.5 |
| CR60-220 | 220 | 60 | 7 | 30 (3059) | 65 (6628) | 5000 | 15.5 |

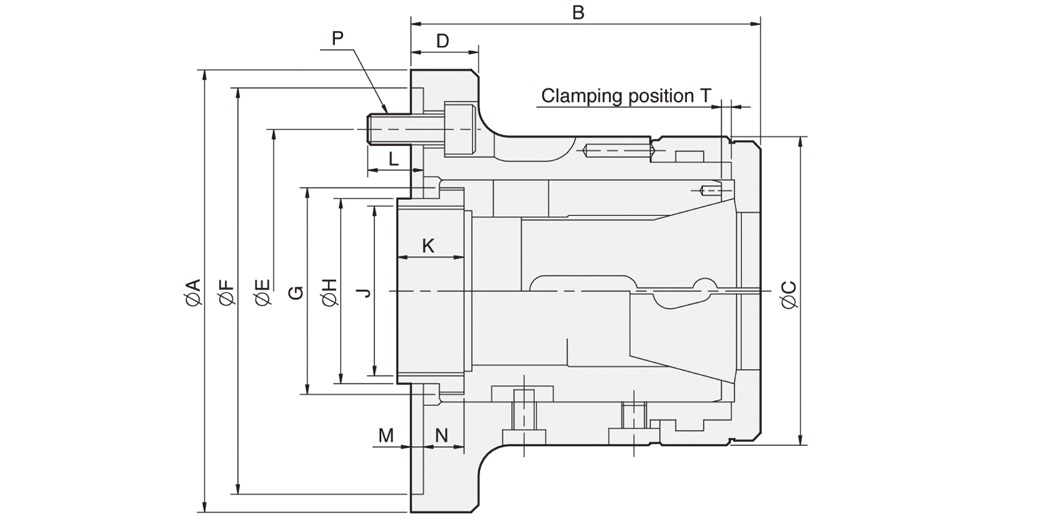

| DIM Model | A(h6) | B | C | D | E | F(h6) | G |
|---|---|---|---|---|---|---|---|
| CR42-140 | 155 | 114 | 100 | 23 | 104.78 | 140 | M66xP1.5 |
| CR60-170 | 185 | 139 | 130 | 30 | 133.35 | 170 | M90xP1.5 |
| CR60-220 | 235 | 141 | 130 | 32 | 171.45 | 220 | M90xP1.5 |
| DIM Model | H | Jmax. | K | L | M | N | P | T |
|---|---|---|---|---|---|---|---|---|
| CR42-140 | 60 | M55xP2.0 | 25 | 18 | 6 | 11.9 | 3-M10 | 3.1 |
| CR60-170 | 80 | M74xP2.0 | 30 | 18 | 6 | 17.9 | 6-M12 | 3.1 |
| CR60-220 | 80 | M74xP2.0 | 30 | 20 | 6 | 19.9 | 6-M16 | 3.1 |
| Capacities Chuck | MULTIBORE | SPRING COLLET |
|---|---|---|
| NO. | Cat.No./round /hex. / Sq. | Cat.No./round /hex. / Sq. |
| CR42 | M-673 / 42 / 36 / 30 | 173E / 4728 / 42 / 36 / 30 |
| CR60 | M-677 / 60 / 52 / 42 | 185E / 4291 / 60 / 52 / 42 |
*Uses the collet to DIN6343 specification.
