| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH Cooperated Brand |
| Model Number: | SC-3,SC-4,SC-5,SC-6,SC-7,SC-8,SC-9,SC-10,SC-12,SC-16, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC 3 jaw scroll chuck plain back solid jaws front and back mounted | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong chucks, strong chucks |
||

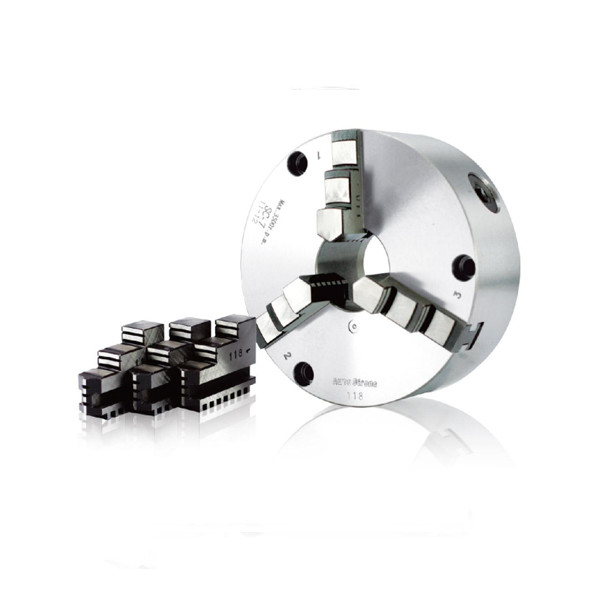

SC 3 jaw scroll chuck plain back solid jaws front and back mounted
3 jaw scroll chuck plain back solid jaws front and back mounted
Interchangable utilization of internal and external hard jaws.
SC types feature economical and durable, suitable for mass production.
Gripping accuracy of 0.03mm (0.0012 inch) T.I.R..
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

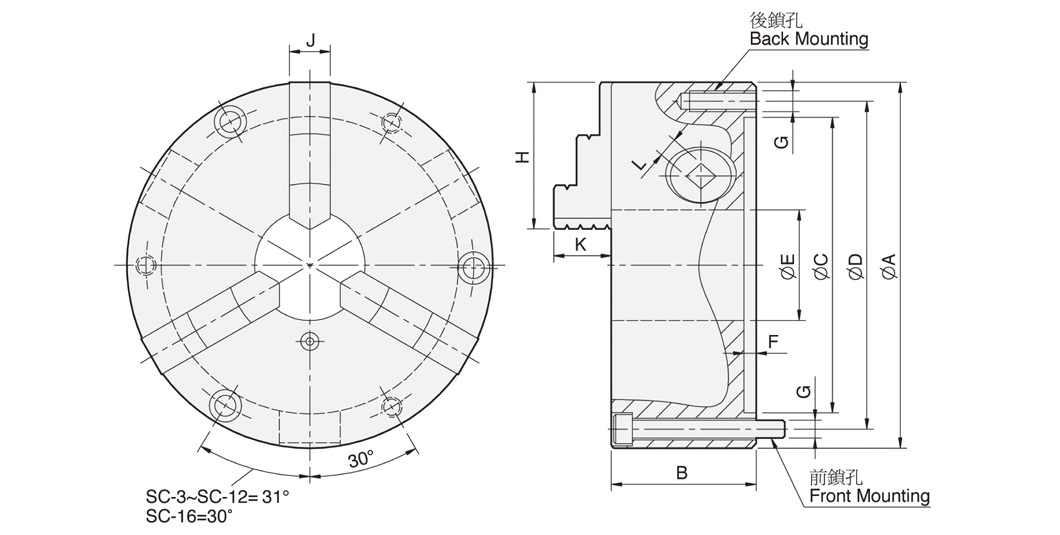

UNIT : mm
| SPEC Model | A | B | C | D | E | F | GBack/Front | H | J |
|---|---|---|---|---|---|---|---|---|---|
| SC-3 | 86 | 46 | 60 | 73 | 16 | 4 | 3-M6 / 3-M6×50 | 36 | 11 |
| SC-4 | 112 | 60 | 80 | 95 | 24 | 4.8 | 3-M8 / 3-M8×70 | 42 | 14 |
| SC-5 | 132 | 60 | 100 | 115 | 32 | 4.8 | 3-M8 / 3-M8×70 | 50 | 16 |
| SC-6 | 167 | 67 | 130 | 147 | 45 | 5.5 | 3-M10 / 3-M10×70 | 63 | 19 |
| SC-7 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 / 3-M10×80 | 77 | 21.5 |
| SC-8 | 200 | 76.5 | 160 | 176 | 58 | 5.5 | 3-M10 / 3-M10×80 | 77 | 21.5 |
| SC-9 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 / 3-M12×90 | 87 | 24 |
| SC-10 | 273 | 87 | 230 | 250 | 89 | 8 | 3-M12 / 3-M12×90 | 98 | 28 |
| SC-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 / 3-M12×110 | 110 | 30 |
| SC-16 | 405 | 122 | 345 | 375 | 160 | 8.7 | — / 6-M14×130 | 146 | 42 |
| SPEC Model | K | L | Allowable Handle Torque (kgf‧m) | Gripping Force (kgf) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2) | Gripping Range O.D. Range I.D. Range |
|---|---|---|---|---|---|---|---|---|
| SC-3 | 15 | 7 | 3 | 900 | 2500 | 1.7 | - | Ø2-Ø70 / Ø24-Ø6 |
| SC-4 | 16.6 | 8 | 4.5 | 1200 | 2500 | 3.7 | - | Ø3-Ø95 / Ø29-Ø84 |
| SC-5 | 20.3 | 8 | 6.5 | 1500 | 2500 | 5.2 | 0.01 | Ø3-Ø110 / Ø33-Ø100 |
| SC-6 | 23.7 | 10 | 9 | 2200 | 2000 | 9.3 | 0.03 | Ø4-Ø160 / Ø48-Ø150 |
| SC-7 | 29.4 | 11 | 11 | 2500 | 2000 | 14.2 | 0.06 | Ø4-Ø180 / Ø56-Ø170 |
| SC-8 | 29.4 | 11 | 11 | 2500 | 2000 | 16 | 0.07 | Ø4-Ø190 / Ø62-Ø180 |
| SC-9 | 35.6 | 12 | 15 | 3000 | 2000 | 22.7 | 0.15 | Ø5-Ø220 / Ø62-Ø210 |
| SC-10 | 39.5 | 12 | 19.5 | 4000 | 1800 | 31.8 | 0.25 | Ø6-Ø260 / Ø70-Ø2 |
| SC-12 | 45.6 | 14 | 21 | 4200 | 1800 | 44.8 | 0.58 | Ø10-Ø300 / Ø86-Ø290 |
| SC-16 | 56.3 | 15 | 25 | 4500 | 1500 | 102 | 1.75 | Ø30-Ø380 / Ø110-Ø360 |
