| Product Name: | SIC 4 jaw scroll chuck plain back solid jaws (front and back mounted) | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong lathe chuck, strong chucks |
||

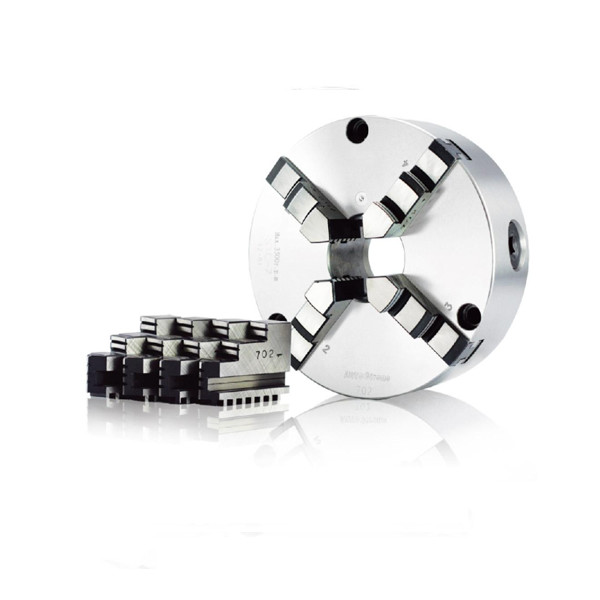

SIC 4 jaw scroll chuck plain back solid jaws (front and back mounted)
4 jaw scroll chuck plain back solid jaws (front and back mounted)
Gripping of square or octagonal workpieces could fit into central line automatically.
SIC have high stability in gripping thin tube work piece.
The specification is the same as SC type.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
UNIT : mm

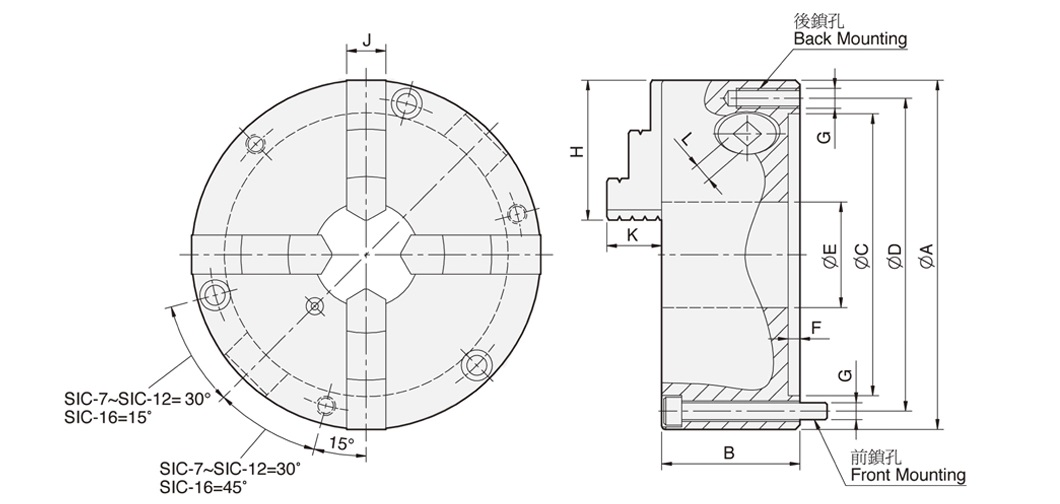

| SPEC Model | A | B | C | D | E | F | GBack/Front | H | J |
|---|---|---|---|---|---|---|---|---|---|
| SIC-7 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 / 3-M10x8 | 77 | 21.5 |
| SIC-9 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 / 3-M12x90 | 87 | 24 |
| SIC-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 / 3-M12x110 | 110 | 30 |
| SIC-16 | 405 | 122 | 345 | 375 | 160 | 8.7 | - / 6-M14x130 | 146 | 42 |
| SPEC Model | K | L | Allowable (kgf‧m) | Gripping Force (kgf) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2) | Gripping Range O.D. Range I.D. Range |
|---|---|---|---|---|---|---|---|---|
| SIC-7 | 29.4 | 11 | 11 | 2500 | 2000 | 14.8 | 0.06 | Ø4-Ø180 / Ø56-Ø170 |
| SIC-9 | 35.6 | 12 | 15 | 3000 | 2000 | 23.2 | 0.16 | Ø5-Ø220 / Ø62-Ø210 |
| SIC-12 | 45.6 | 14 | 21 | 4200 | 1800 | 47 | 0.58 | Ø10-Ø300 / Ø86-Ø290 |
| SIC-16 | 56.3 | 15 | 25 | 4500 | 1500 | 107 | 1.75 | Ø30-Ø380 / Ø110-Ø360 |
