| Product Name: | UNIT : mm SPEC Model Jaw Stroke (mm) Max.Gripping Force (kn) Weight (kg) Matching Soft Jaw HB4-2P 50 39.2 31 HE2486 | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong chucks, strong chucks |
||
UNIT : mm SPEC Model Jaw Stroke (mm) Max.Gripping Force (kn) Weight (kg) Matching Soft Jaw HB4-2P 50 39.2 31 HE2486

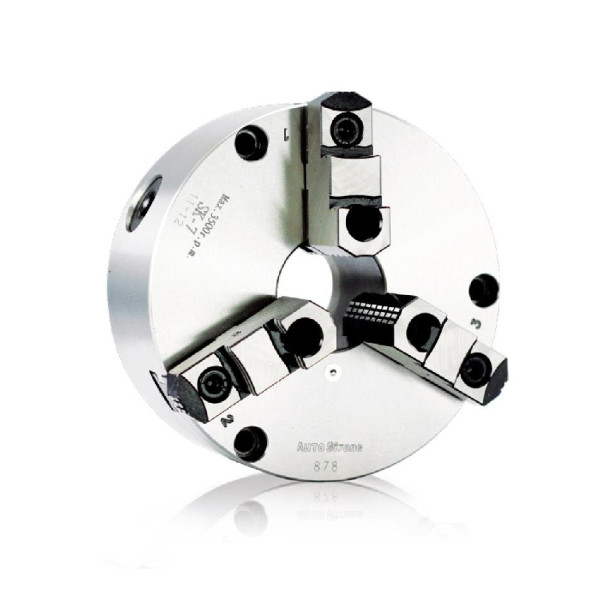

SK types chucks have wider unilization range; hard jaws suitable for heavy cutting; soft jaws suitable for light and precision cutting.
Hard jaws could be used as internal jaws and external jaws.
Gripping accuracy of 0.03mm (0.0012 inch) T.I.R.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

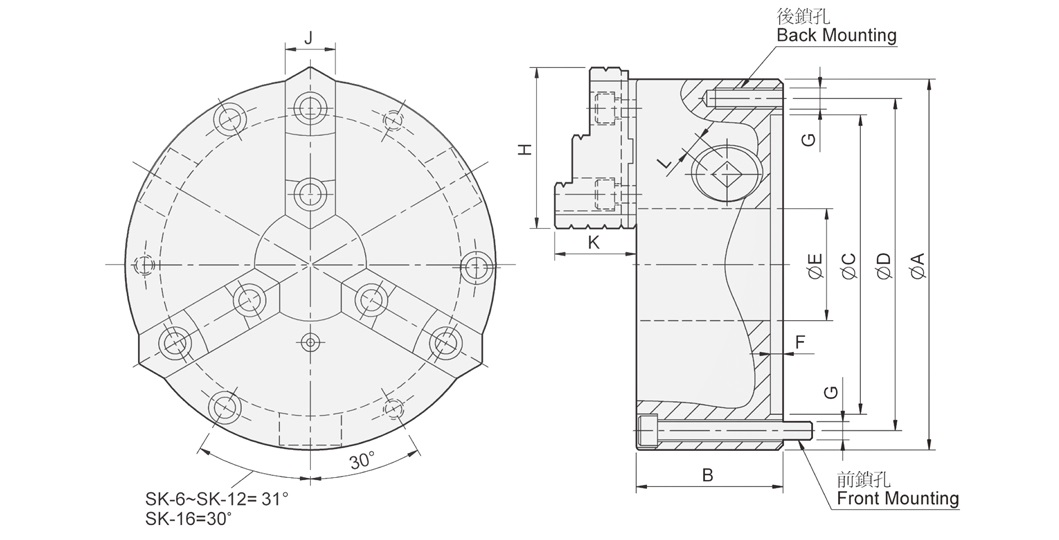

UNIT : mm
| SPEC Model | A | B | C | D | E | F | GBack/Front | H | J |
|---|---|---|---|---|---|---|---|---|---|
| SK-4 | 112 | 58 | 80 | 95 | 32 | 4.8 | — / 3-M8x65 | 47 | 19 |
| SK-6 | 167 | 67 | 130 | 147 | 45 | 5.5 | 3-M10 / 3-M10x70 | 72 | 26 |
| SK-7 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 / 3-M10x80 | 81.2 | 28 |
| SK-8 | 200 | 76.5 | 160 | 176 | 58 | 5.5 | 3-M10 / 3-M10x80 | 82 | 28 |
| SK-9 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 / 3-M12x90 | 90.9 | 32 |
| SK-10 | 273 | 87 | 230 | 250 | 89 | 8 | 3-M12 / 3-M12x90 | 100.5 | 35 |
| SK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 / 3-M12x110 | 114.5 | 40 |
| SK-16 | 405 | 122 | 345 | 375 | 160 | 8.7 | — / 6-M14x130 | 148.6 | 50 |
| SPEC Model | K | L | Allowable Handle Torque (kgf‧m) | Gripping Force (kgf) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2) | Gripping Range O.D. Range I.D. Range |
|---|---|---|---|---|---|---|---|---|
| SK-4 | 31.6 | 8 | 4.5 | 1200 | 2500 | 3.8 | - | Ø3-Ø95 / Ø29-Ø84 |
| SK-6 | 40.2 | 10 | 9 | 2200 | 2000 | 9 | 0.03 | Ø4-Ø160 / Ø55-Ø150 |
| SK-7 | 42 | 11 | 11 | 2500 | 2000 | 13.8 | 0.06 | Ø8-Ø180 / Ø62-Ø170 |
| SK-8 | 42 | 11 | 11 | 2500 | 2000 | 15.5 | 0.07 | Ø8-Ø190 / Ø68-Ø180 |
| SK-9 | 51.2 | 12 | 15 | 3000 | 2000 | 22 | 0.16 | Ø11-Ø220 / Ø70-Ø210 |
| SK-10 | 56.7 | 12 | 19.5 | 4000 | 1800 | 29.7 | 0.26 | Ø12-Ø260 / Ø80-Ø250 |
| SK-12 | 56.8 | 14 | 21 | 4200 | 1800 | 43.5 | 0.58 | Ø15-Ø300 / Ø90-Ø290 |
| SK-16 | 76.1 | 15 | 25 | 4500 | 1500 | 98 | 1.72 | Ø30-Ø380 / Ø110-Ø360 |
