| Product Name: | SIK 4 jaw strong scroll chuck plain back 2 piece jaws (front and back mounted) | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong lathe chuck, strong chucks |
||

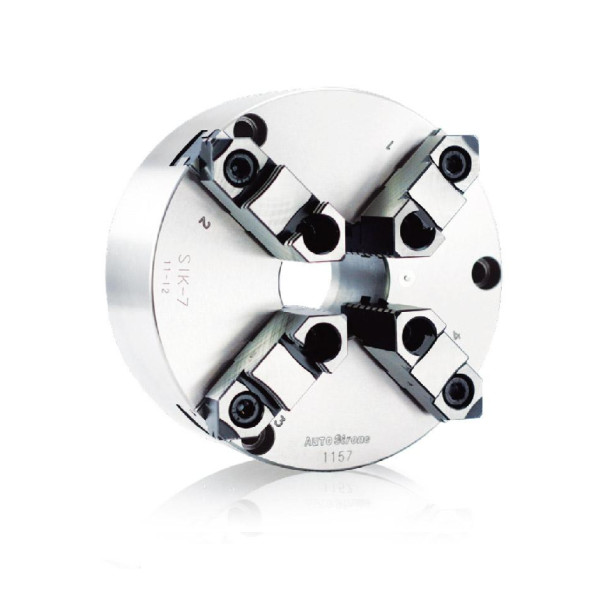

SIK 4 jaw strong scroll chuck plain back 2 piece jaws (front and back mounted)
4 jaw strong scroll chuck plain back 2 piece jaws (front and back mounted)
Hard jaws are adopted for square or octagonal thin tube workpieces machining.
Soft jaws could grip rectangular workpiece after being unisotropic machined.
The specification is the same as SK type.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
UNIT : mm

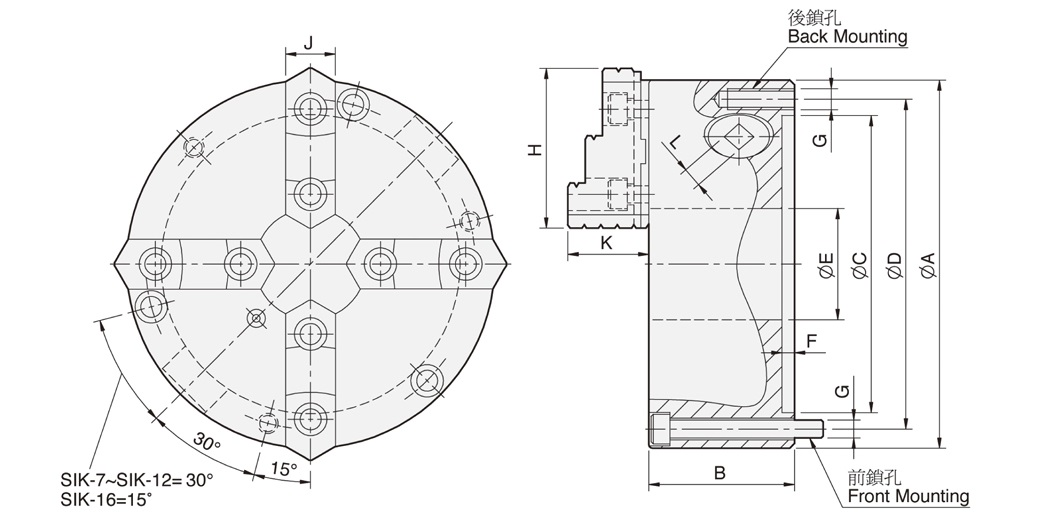

| SPEC Model | A | B | C | D | E | F | GBack/Front | H |
|---|---|---|---|---|---|---|---|---|
| SIK-7 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 / 3-M10x80 | 82 |
| SIK-9 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 / 3-M12x90 | 96 |
| SIK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 / 3-M12x110 | 114.5 |
| SIK-16 | 405 | 122 | 345 | 375 | 160 | 8.7 | — / 6-M14x130 | 148.6 |
| SPEC Model | J | K | L | Allowable Handle Torque (kgf‧m) | Gripping Force (kgf) | Max. Speed (r.p.m.) | Weight (kg) | Moment Of Inertia I (kg‧m2) | Gripping Range O.D. Range I.D. Range |
|---|---|---|---|---|---|---|---|---|---|
| SIK-7 | 28 | 42 | 11 | 11 | 2500 | 2000 | 14.1 | 0.06 | Ø8-Ø180 / Ø62-Ø170 |
| SIK-9 | 32 | 51.2 | 12 | 15 | 3000 | 2000 | 22.2 | 0.16 | Ø11-Ø220 / Ø70-Ø210 |
| SIK-12 | 40 | 56.8 | 14 | 21 | 4200 | 1800 | 45 | 0.58 | Ø15-Ø300 / Ø90-Ø290 |
| SIK-16 | 50 | 76.1 | 15 | 25 | 4500 | 1500 | 108 | 1.72 | Ø30-Ø380 / Ø110-Ø360 |
