| Product Name: | SE 6 Jaw scroll chuck plain back | Material: | Cast Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Fixture/Gripping | Service: | ODM/OEM Is Accpetable |
| Highlight: | auto strong chucks, auto strong lathe chuck |
||

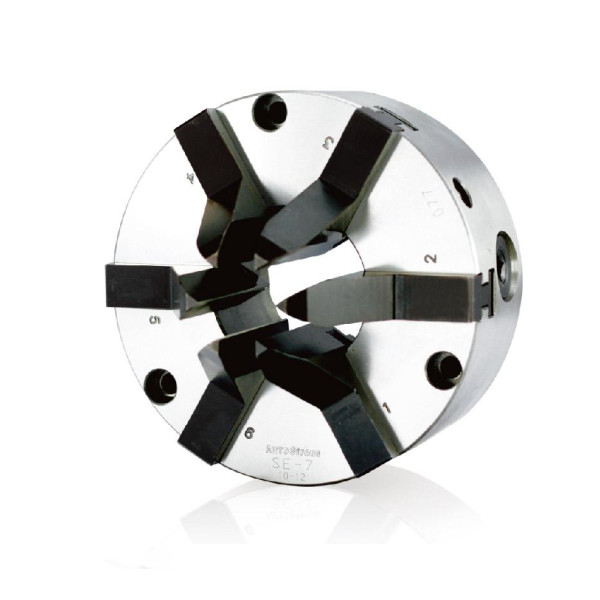

SE 6 Jaw scroll chuck plain back
6 Jaw scroll chuck plain back
SE types are specially meet for drilling*endmilling*tapping or grinding in tool grinders.
Huge bore diameter design for wider application of bar workpieces.
SE type feature gripping for thin tube and high roundness accuracy.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
UNIT : mm

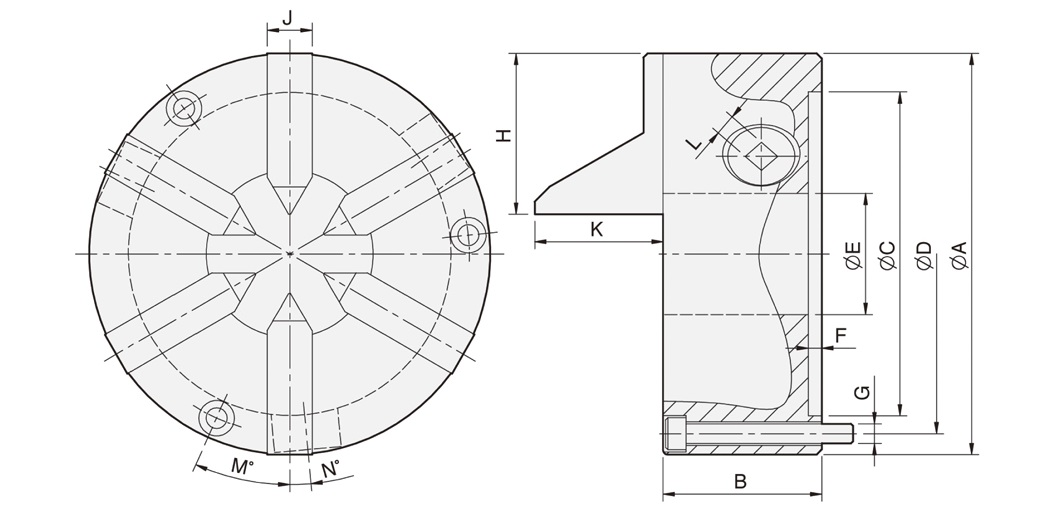

| No. | A | B | C | D | E | F | G | H | J | K | L | M | N |
| Gripping | Max. | N.W. | Moment | Gripping Range O.D. -I.D. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE-4 | 112 | 66 | 80 | 95 | 32 | 4.8 | 3-M8 | 45 | 14 | 39.7 | 8 | 30 | 6.5 | 1.6 | 440 | 1200 | 4 | - | Ø2-Ø32 |
| SE-6 | 165 | 67 | 130 | 147 | 51 | 5.5 | 3-M8 | 66.5 | 19 | 40.7 | 10 | 23.3 | 6.2 | 2.8 | 660 | 1200 | 9 | 0.03 | Ø3-Ø51 |
| SE-7 | 192 | 76.5 | 155 | 172 | 80 | 5.5 | 3-M10 | 77 | 21.5 | 61.5 | 11 | 24 | 5.3 | 3.6 | 850 | 1000 | 14 | 0.06 | Ø3-Ø81 |
