| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | JPQ-5"-110,JPQ-6"-150 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MC SUPER HIGH PRESSURE DOUBLE VICE PNEUMATIC VISE | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| High Light: | pneumatic air vise,pneumatic cylinder vise |
||

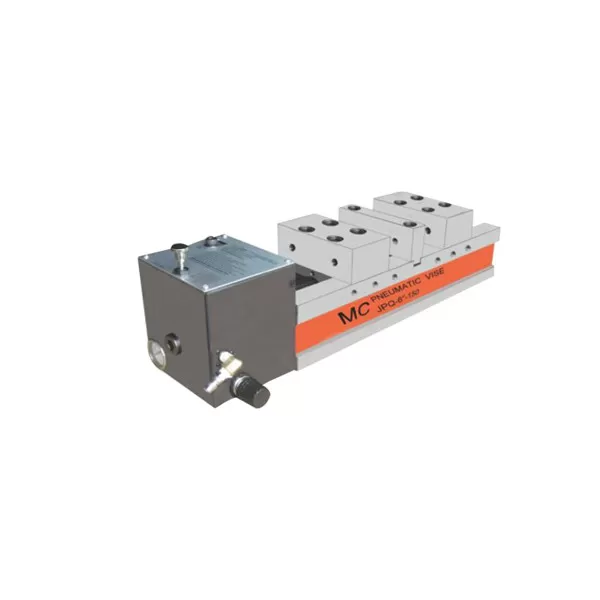

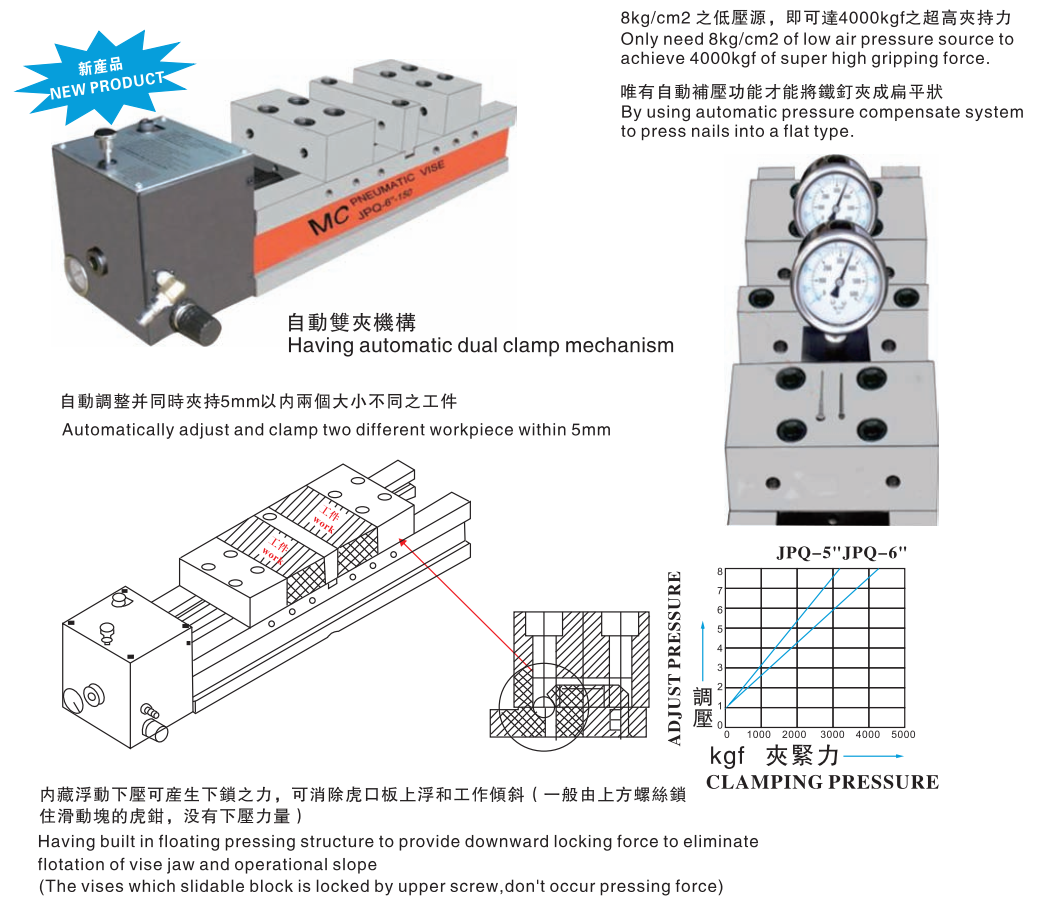

MC SUPER HIGH PRESSURE DOUBLE VICE

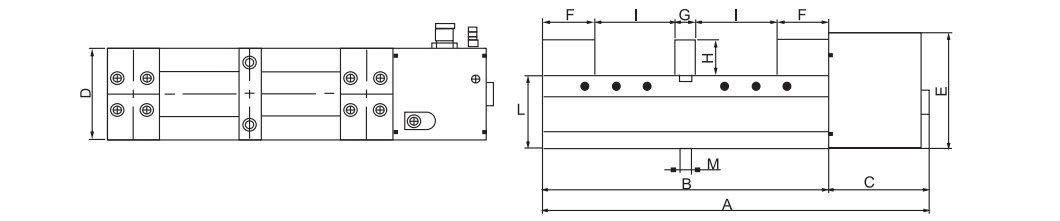

| MODEL | A | B | C | D | E | F | G | H | I | L | M | Gripping Kgf |
N.W. Kg |
G.W. Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JPQ-5"-110 | 556 | 410 | 146 | 130 | 166 | 74 | 30 | 52 | 0-115 | 105 | 18 | 3200 | 42kg | 44kg |
| JPQ-6"-150 | 656 | 510 | 146 | 160 | 168 | 82 | 30 | 55 | 0-155 | 105 | 18 | 4000 | 67kg | 69kg |
