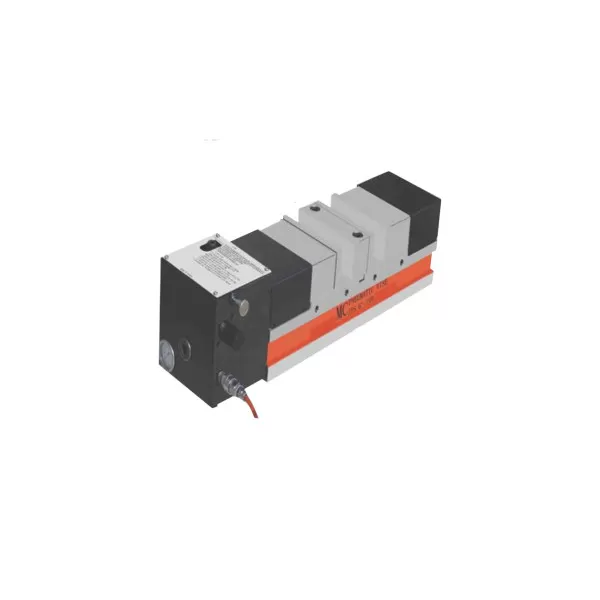

MC PRECISION SUPER HI-PERSSURE RAPID VICE PNEUMATIC VISE

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: JPS-6"-100
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days available
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: MC PRECISION SUPER HI-PERSSURE RAPID VICE PNEUMATIC VISE Material: Nodular Cast Iron
Usage: Gripping Feature: High Precision/Stable/High Quality
Size: Refer To The Specification Precision: Within 0.02mm/100mm
High Light:

pneumatic milling vise

,

pneumatic cylinder vise

MC SUPER HI-PRESSURE DOUBLE VICE PNEUMATIC VISE



Super high gripping force

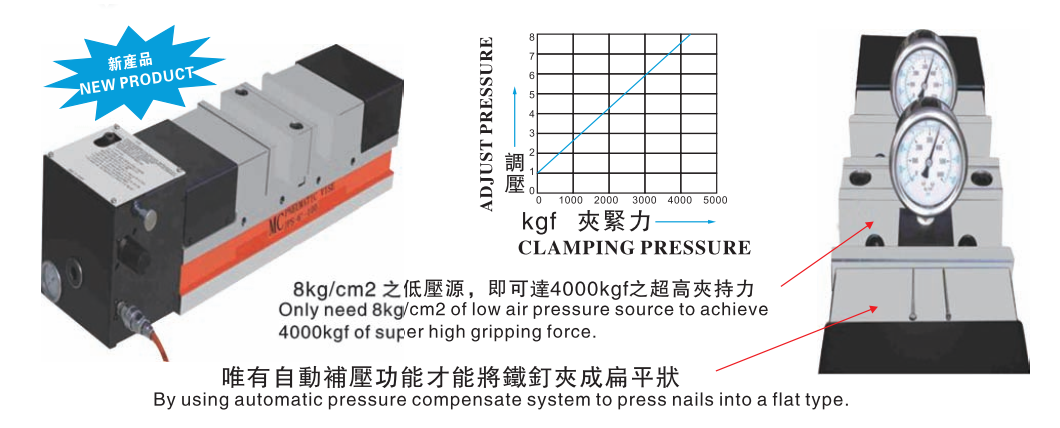

Only need 8kg/cm2 of low air pressure source to achieve 4000kgf of super high gripping force.and this gripping force can be adjusted with in 0-4000kgf by using a pressure regulator.
Find the highest air pressure point automatically
When processing copper,aluminum or heavy machining raw cast iron workpiece,the pressure regulator can be set at a desired pressure without losing pressure,besides,the gripping force can be kept to clamp the workpiece securely by auto compensating and pressure stabilizing functions
The biggest safety clamping range
The shifting speed is only 1.5 second.the double vise mechanism can be adjusted automatically and can simultaneously clamp two different workpieces in less than 5mm of size.
Super rigid material
The body of the vice is integrally made of high tensile graphite casting iron(FCD 60)and is harden by heat treatment(HRC 50)at its two slide way,thereby ensuring high precision,high durability and high tensile.
Submersed angle fixed pressed down structure
Submersed angle pressed structure in a semi-sphere shape to produce an angle lock power,thus preventing the cutting plate from movement.

MC PRECISION SUPER HI-PERSSURE RAPID VICE PNEUMATIC VISE 0

MC PRECISION SUPER HI-PERSSURE RAPID VICE PNEUMATIC VISE 1

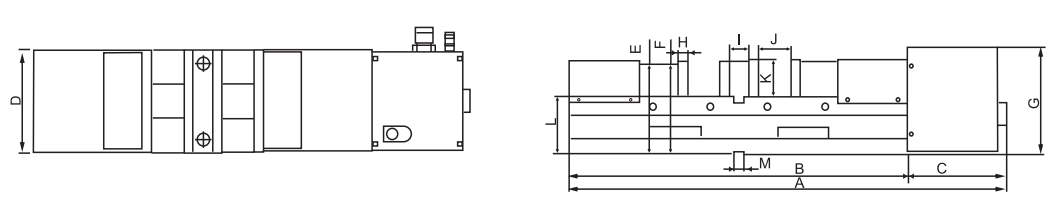

Model A B C D E F G H I J K L M Gripping
Kgf
N.W.
Kg
G.W.
Kg
JPS-6"-100 682 530 152 160 145 148 168 15 30 0-100 58 90 18 400 63 66
