| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | JAL636,JA362,JA562 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000sets/M |
| Product Name: | JAL HIGH SPEED PNEUMATIC AIR CYILNDER CYLINDER FOR MATCHING JAS JHS COLLET CHUCK | Material: | Cast Steel |
|---|---|---|---|
| Function: | Fixture/Gripping | Feature: | High Precision/Stable/High Quality |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Accpetable |
| Highlight: | rotary air cylinder, precision hydraulic cylinders |
||

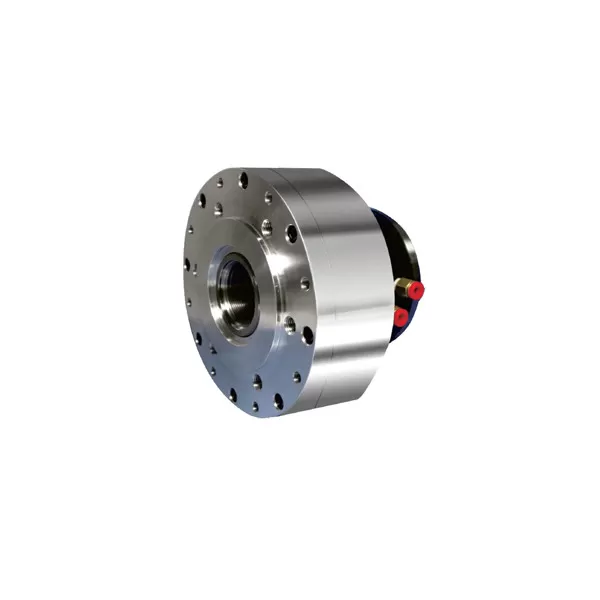

JAL HIGH SPEED PNEUMATIC AIR CYILNDER CYLINDER FOR MATCHING JAS JHS COLLET CHUCK
Brand:NTH
Open center air cylinder, saving cost of hydraulic equipment.
Open center design allows bar parts gripping.
Adavnce bearing design: low temperature rising when operation.
Low air leakage.
Double piston design to offer high pulling force. (JA362 / JA562)

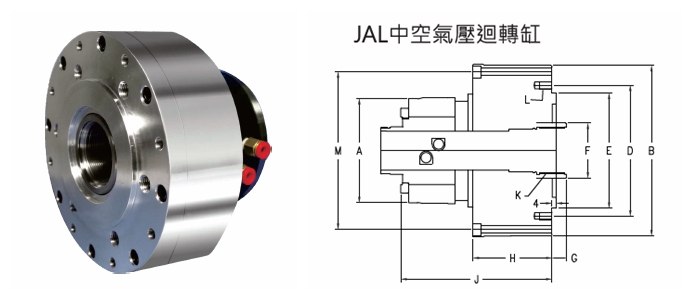

| Model | JAL636 | JA362 | JA562 |
|---|---|---|---|
| Single Piston/Double Pistons | Single Piston | Double Pistons | Double Pistons |
| A | 105(4.13〞) | 107(4.21〞) | 127(5.00〞) |
| B(P.C.D) | 162(6.38〞) | 175(6.89〞) | 200(7.87〞) |
| D(P.C.D) | 115(4.53〞) | 115(4.53〞) | 155(46.10〞) |
| E | 100(3.94〞) | 100(3.94〞) | 130(5.12〞) |
| F | 55(2.17〞) | 50(1.97〞) | 70(2.76〞) |
| G | 0-12(0〞-0.47〞) | -2-10(-0.10〞-0.39〞) | 0-15(0〞-0.59〞) |
| H | 58(2.28〞) | 101(3.98〞) | 108(4.25〞) |
| J | 120(4.72〞) | 165(6.50〞) | 180(7.09〞) |
| K Draw tube thread | M42×P1.5 | M42×P1.5 | M60×P2.0 |
| L | 6-M10 | 6-M10 | 12-M10 |
| M(P.C.D) | 147(5.79〞)8H-M6 | N/A | N/A |
| Through hole Dia | 36mm(1.42〞) | 36mm(1.42〞) | 52mm(2.05〞) |
| Air Pressure | 2-8kg/cm²(29-114psi) | 2-8kg/cm²(29-114psi) | 2-8kg/cm²(29-114psi) |
| Max RPM | 3200 | 3600 | 3200 |
| Piston stroke | 12mm(0.47〞) | 12mm(0.47〞) | 15mm(0.59〞) |
| Piston Area | 123cm²(19.1in²) | 287cm²(44.5in²) | 365cm²(56.6in²) |
| Pull force | 775kgf@7kg/cm² (1705lbf@100psi) | 1810kgf@7kg/cm² (3980lbf@100psi) | 2300kgf@7kg/cm² (5060lbf@100psi) |
| N.W | 7.2kgs(15.8lbs) | 9.2kgs(20.3lbs) | 14.5kgs(31.9lbs) |
Subject to technology changes without prior information
Non-standard requirements can be made
