| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 600-275,850-375 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | PB-ES PNEUMATIC POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

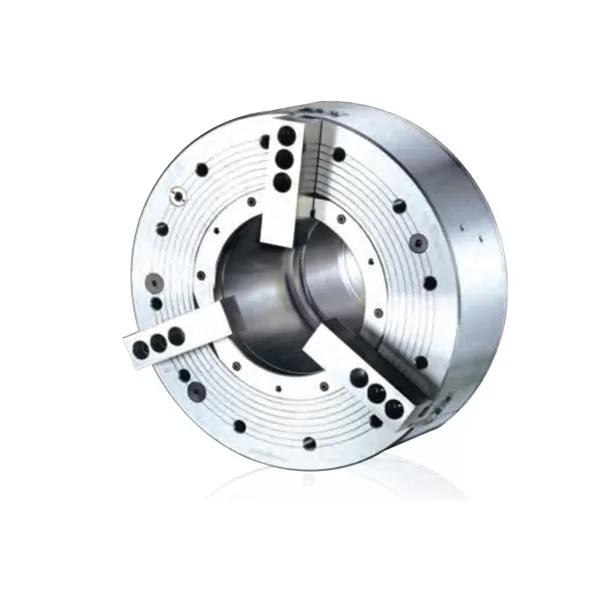

PB-ES PNEUMATIC POWER CHUCK
Brand:NTH
1, Air chuck for external clamping with built-in pneumatic cylinder.
2, Fast clamping with extended jaw stroke.
3, Clamping pressure control.
4, Clamping stroke control.
| Spec Model | Through hole dia. mm | Total jaws stroke mm | Fast jaw stroke mm | Clamping jaw stroke mm | Piston Area cm2 | Operating Pressure Min-Max.(bar) |
|---|---|---|---|---|---|---|
| 600-275 | 275 | 25.4 | 16.9 | 8.5 | 954 | 2-10 |
| 850-375 | 375 | 25.4 | 13.4 | 12 | 1342 | 2-10 |
| Spec Model | Gripping Force KN | Max RPM | Weight Kg | I kg*m2 | Air Consumption L | Gripping range mm |
|---|---|---|---|---|---|---|
| 600-275 | 180 | 1100 | 360 | 20.6 | 39.5 | 135-275 |
| 850-375 | 250 | 750 | 980 | 110 | 68 | 115-375 |
| Spec Model | A | B | B1 | C | D Max./Min. | E | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600-275 | 605 | 280 | 282 | 450 | 79/38 | 20 | 37 | 585 | 508 | 25 | 12-M12 | 275 | 8 |
| 850-375 | 850 | 352 | 354 | 700 | 140/47 | 25 | 44.5 | 830 | 745 | 30 | 12-M16 | 375 | 8 |
| Spec Model | N Max./Min. | O Min. | P | Q | R | S | T | U | V | W | X | X1 | Y | Y1 | a° | b° |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600-275 | 204.6/179.2 | 14 | 26 | 3 | 25.5 | G1/2 | 57 | 116.5 | M20 | 535 | 508 | 35 | 508 | 35 | 15 | 60 |
| 850-375 | 268/242.6 | 16 | 33 | 4 | 30 | G1/2 | 75 | 182 | M24 | 775 | 745 | 35 | 745 | 35 | 15 | 60 |
Remarks: When operation pressure at 6 bar.
Subject to technology changes without prior information
Non-standard requirements can be made
