| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | IAH-225,IAH-250,IAH-275,IAH-315,IAH-350,IAH-400,IAH-500,IAH-670, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | IAH AUTO-INDEXING CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power collet chuck |
||

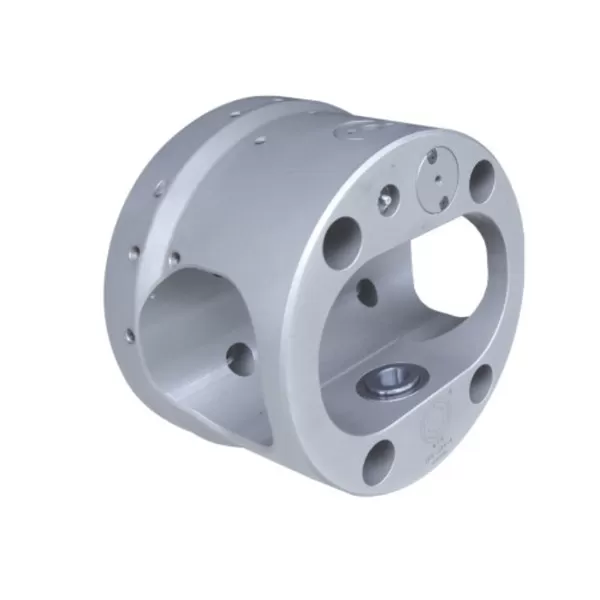

IAH AUTO-INDEXING CHUCK
Brand:NTH
machine multiple surfaces in a single clamping
on-the-fly indexing
accurate,durable indexing system
index positions 4*90° or 8*45°
bracketed dimensions refer to models IAH-400 and larger.

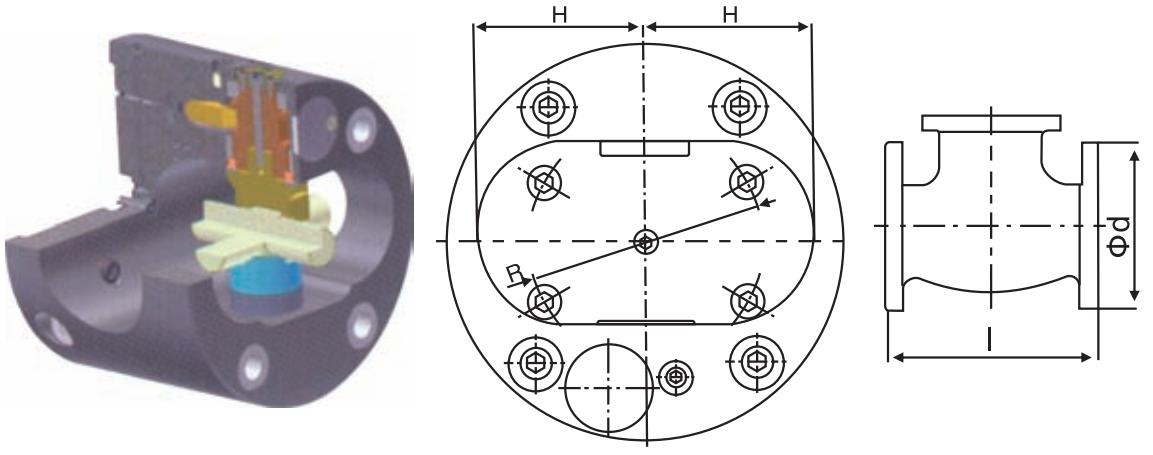

| Model | Max.Workpiece Size Фd mm | Max.Workpiece Size I mm |
|---|---|---|
| IAH-225 | 60 | 100 |
| IAH-250 | 65 | 160 |
| IAH-275 | 80 | 220 |
| IAH-315 | 100 | 230 |
| IAH-350 | 135 | 240 |
| IAH-400 | 170 | 260 |
| IAH-500 | 220 | 310 |
| IAH-670 | 300 | 400 |

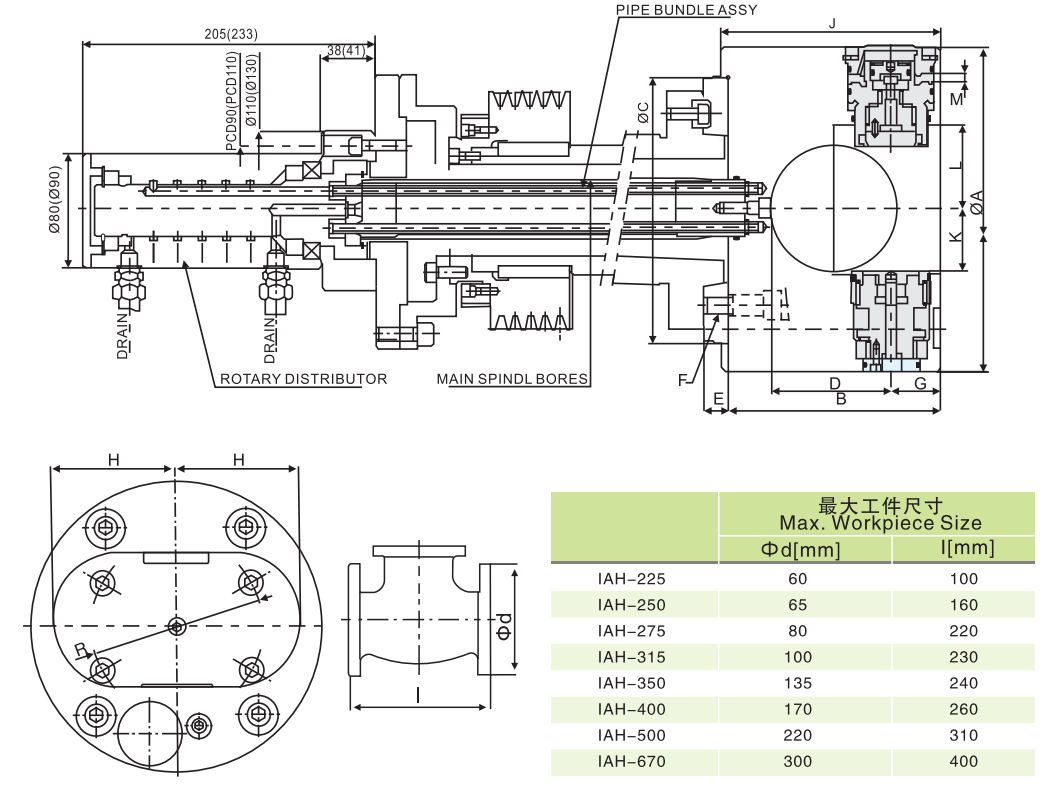

| Spec Model | ØA | B | ØC(h7) | D | E | F | G | H | J | K | L | M | ØR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IAH-225 | 225 | 149 | 185 | 84 | 25 | M12 | 35 | 95 | 154 | 46 | 58 | 11.5 | 133.4 |
| IAH-250 | 250 | 185 | 210 | 113 | 25 | M12 | 40 | 106 | 190 | 46 | 55 | 20 | 133.4 |
| IAH-280 | 280 | 208 | 210 | 125 | 25 | M16 | 48 | 125 | 213 | 57 | 67 | 20.5 | 171.4 |
| IAH-315 | 315 | 227 | 235 | 136 | 25 | M16 | 50 | 136 | 232 | 70 | 85 | 22 | 171.4 |
| IAH-350 | 350 | 235 | 290 | 148 | 30 | M20 | 50 | 145 | 240 | 84 | 102 | 23 | 235 |
| IAH-400 | 400 | 253 | 290 | 160 | 30 | M20 | 60 | 165 | 259 | 100 | 114 | 30 | 235 |
| IAH-500 | 500 | 301 | 380 | 200 | 35 | M20,M24 | 68 | 205 | 308 | 133 | 157 | 35 | 235 |
| IAH-670 | 670 | 465 | 380 | 286 | 40 | M24 | 90 | 275 | 470 | 176 | 214 | 40 | 330.2 |
| Spec Model | Max. Clamping Force kgf | Spindle Bore mm | Max RPM | Weight kg | I kg*m2 | Max.Workpiece Size S mm | Max.Workpiece Size T mm |
|---|---|---|---|---|---|---|---|
| IAH-225 | 1270 | over45 | 2800 | 29 | 0.9 | 60 | 100 |
| IAH-250 | 1730 | over45 | 2400 | 44 | 1.7 | 65 | 160 |
| IAH-280 | 2550 | over45 | 2000 | 56 | 2.8 | 80 | 220 |
| IAH-315 | 2550 | over45 | 1800 | 75 | 5 | 100 | 230 |
| IAH-350 | 2550 | over55 | 1800 | 100 | 8 | 135 | 240 |
| IAH-400 | 3530 | over55 | 1200 | 145 | 15 | 170 | 260 |
| IAH-500 | 4670 | over55 | 900 | 230 | 25.4 | 220 | 310 |
| IAH-670 | 5890 | over55 | 600 | 540 | 32.5 | 300 | 400 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download: IAH Series.pdf
