| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | FQ-08A6,FQ-10A8,FQ-12A8 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |

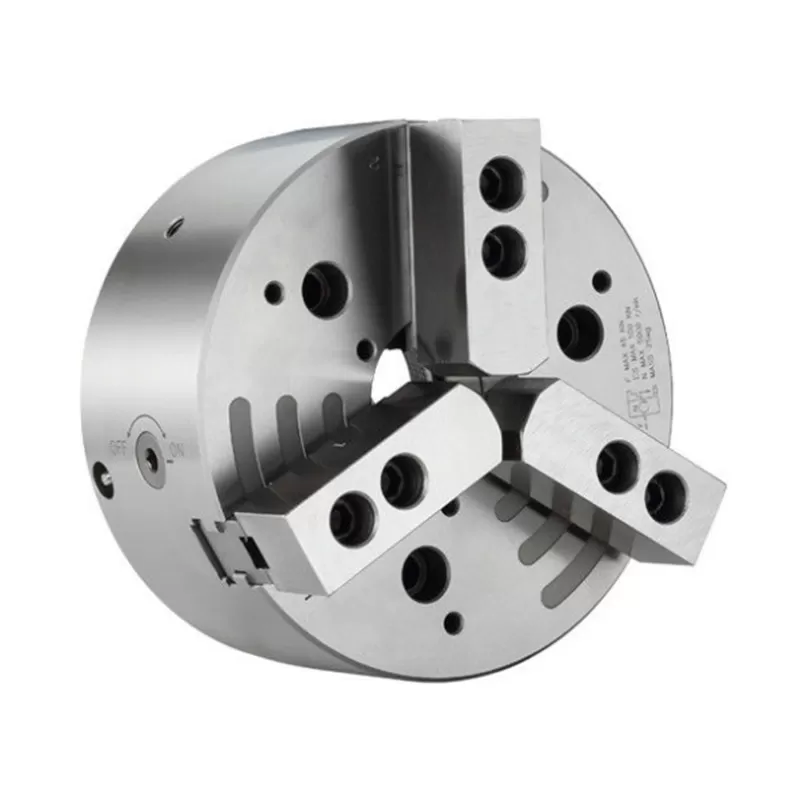

| Product Name: | FQ Quick Jaw Change Chuck | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | lathe jaw chuck,power operated chucks |
||
Brand:NTH
shortest time for changing soft jaw,and high repeatability precision.
The chuck body and all parts are hardened and ground, it can be lubricated directly.
high rigidity construction and high clamping accuracy.
For safety system that master jaw will complete return when base jaw and serration match up properly.
| Spec Model |
Plunger stroke mm |
Jaw stroke Dia. mm |
Max chucking Dia. mm |
Min chucking Dia. mm |
Max.D.B. Pull kgf |
Max clamping force kgf |
|---|---|---|---|---|---|---|
| FQ-08A6 | 16 | 7.5 | 210 | 23 | 45.0(4590) | 100(10200) |
| FQ-10A8 | 19 | 8.8 | 254 | 41 | 60.0(6118) | 135(13765) |
| FQ-12A8 | 23 | 10.6 | 315 | 47 | 81.0(8259) | 180(18354) |
| Spec Model |
Max RPM | I kg*m2 |
Weight kg |
Weight(Ad.) kg |
Matched cylinders |
Max pressure Mpa(kgf/cm2) |
|---|---|---|---|---|---|---|
| FQ-08A6 | 5000 | 0.15 | 24.5 | 26 | H-1778 | 3.1(31) |
| FQ-10A8 | 4500 | 0.41 | 44 | 46 | H-2085 | 2.8(28) |
| FQ-12A8 | 3500 | 0.96 | 73 | 75 | H-2511 | 2.4(25) |
|

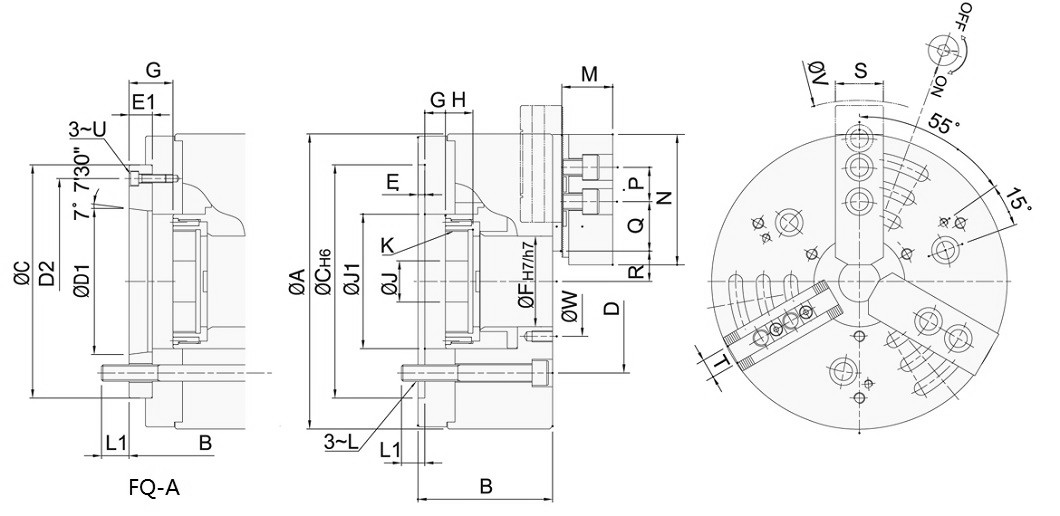

Spec Model |
A | B | B | C | D | D1 | D2 | E | E1 | F | Gmax | Gmax | Gmin | Gmin | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FQ-08A6 | 215 | 98 | 110 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 66 | 14.5 | 32 | -1.5 | 15.5 | 20 | 30 |
| FQ-10A8 | 254 | 119 | 132 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 81 | 8.5 | 26.5 | -10.5 | 7.5 | 39 | 45 |
| FQ-12A8 | 315 | 133 | 145 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 106 | 8.5 | 26.5 | -14.5 | 3.5 | 42 | 50 |
| Spec Model |
J1 | K max | L | L1 | L1 | M | N | P | Q | R max | R min | S | T | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FQ-08A6 | 98 | M75×2 | M12 | 17 | 20 | 37 | 95 | 25 | 36 | 20.8~44.8 | 17.1~41.1 | 35 | 14 | M6 | 264 | 80 |
| FQ-10A8 | 115 | M90×2 | M16 | 23 | 25 | 42 | 110 | 30 | 40.5 | 21.1~52.8 | 16.7~48.2 | 40 | 16 | M8 | 312 | 100 |
| FQ-12A8 | 140 | M115×2 | M16 | 22 | 24 | 50 | 111 | 30 | 57 | 34.1~70.1 | 28.8~64.8 | 50 | 21 | M8 | 360 | 130 |
Subject to technology changes without prior information
Non-standard requirements can be made
