| Product Name: | FW 3 JAW SWING LOCK CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

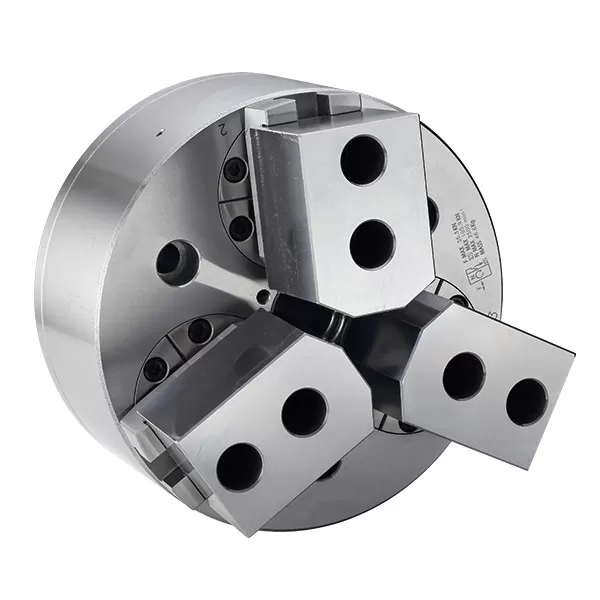

FW 3 JAW SWING LOCK CHUCK
Brand:NTH
Suitable for self centering turning process for casting and forging workpiece
Clamping and drawing back the workpiece, it can clamp the parts with 10 degree taper, and the chuck jaws can swing 5 degree.
The accuracy for repeatibility position can meet 0.03mm
size unit: mm
| Spec Model | Clamping out dia mm | Clamping inner dia mm | Piston stroke mm | Jaw stroke dia mm | Max RPM |
|---|---|---|---|---|---|
| FW-06 | 12.7-120 | 70-152 | 11.4 | 7.9 | 4000 |
| FW-08 | 16-152 | 76-203 | 14.2 | 9.5 | 3500 |
| FW-10 | 50-203 | 85-235 | 17.5 | 12.7 | 3200 |
| FW-12 | 63-241 | 127-305 | 17.5 | 12.7 | 2500 |
| FW-15 | 78-310 | 170-380 | 22.4 | 15.8 | 1800 |
| FW-18 | 90-390 | 245-455 | 22.4 | 15.8 | 1500 |
| FW-21 | 165-470 | 320-530 | 22.4 | 15.8 | 1000 |
Spec Model | Max.D.B.Pull kgf | Max clamping force kgf | Matched cylinders | Weight kg |
|---|---|---|---|---|
| FW-06 | 23 | 70 | S-125R | 14.8 |
| FW-08 | 32 | 96 | S-125R | 23.7 |
| FW-10 | 40 | 123 | S-150R | 39.5 |
| FW-12 | 40 | 123 | S-150R | 58.5 |
| FW-15 | 54 | 165 | S-200R | 95.2 |
| FW-18 | 55 | 166 | S-200R | 145 |
| FW-21 | 56 | 167 | S-200R | 180 |
Spec Model | A | B | C | D | E | F | H | I1 | I2 |
|---|---|---|---|---|---|---|---|---|---|
| FW-06 | 162 | 77 | 140 | 104.8 | 5 | 3-M10 | 14.3 | 73 | 22.2 |
| FW-08 | 200 | 88 | 170 | 133.4 | 5 | 3-M12 | 19.3 | 89 | 25 |
| FW-10 | 254 | 105 | 220 | 171.4 | 5 | 3-M16 | 24.5 | 112.8 | 30.2 |
| FW-12 | 300 | 105 | 220 | 171.4 | 5 | 3-M16 | 24.5 | 133.3 | 50.7 |
| FW-15 | 381 | 120 | 300 | 235 | 6 | 3-M20 | 29 | 171.15 | 69.85 |
| FW-18 | 457 | 126.5 | 380 | 260 | 6 | 3-M24 | 29 | 209.65 | 108.35 |
| FW-21 | 533 | 126.5 | 380 | 330.2 | 6 | 3-M24 | 29 | 248 | 146.7 |
| Spec Model | J | K | L | M | N | P | Q | R | U |
|---|---|---|---|---|---|---|---|---|---|
| FW-06 | 68 | 29.4 | 15 | 44 | 38.1 | 50 | 17.6-29 | 30 | M16 |
| FW-08 | 81 | 34 | 15 | 54 | 44.45 | 55 | 20-34 | 30 | M18 |
| FW-10 | 100 | 44.5 | 19 | 64 | 57 | 70 | 23.5-41 | 35 | M22 |
| FW-12 | 110 | 44.5 | 19 | 64 | 57 | 70 | 20-37.5 | 38 | M22 |
| FW-15 | 140 | 54 | 24 | 74 | 66.7 | 80 | 29.6-52 | 40 | M24 |
| FW-18 | 140 | 54 | 24 | 74 | 66.7 | 80 | 16.4-38.7 | 41 | M30 |
| FW-21 | 170 | 54 | 24 | 74 | 66.7 | 80 | 16.4-38.7 | 41 | M30 |
Subject to technology changes without prior information
Non-standard requirements can be made
