| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | FR-08,FR-10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | FR SWING COMPENSATION TYPE 3 JAW CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

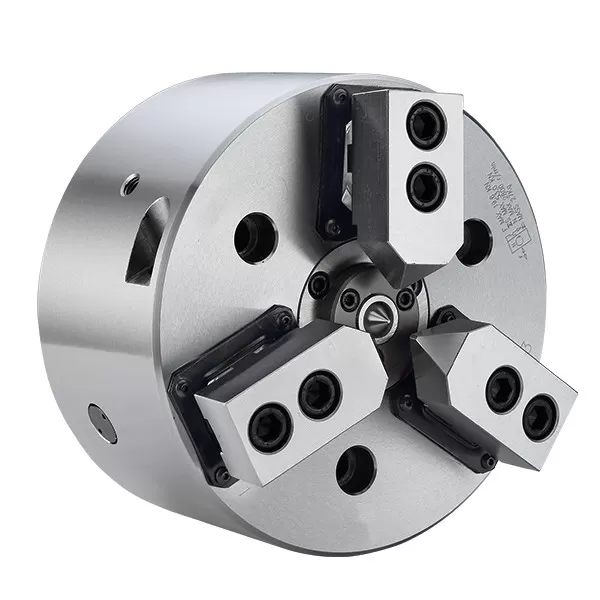

FR SWING COMPENSATION TYPE 3 JAW CHUCK
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| FR-08 | 20 | 8 | 65 | 18 | 19.6(2000) |
| FR-10 | 25 | 10 | 90 | 22 | 29.4(3000) |
| Spec Model | Max clamping force kgf | Max RPM | I kg*m2 | Weight kg | Matched cylinders | Compensation mm |
|---|---|---|---|---|---|---|
| FR-08 | 53.0(5404) | 2800 | 0.15 | 27 | SNK-100 | 2 |
| FR-10 | 67.7(6901) | 2500 | 0.38 | 45 | SNK-125 | 2 |
| Spec Model | A | B | C(H6) | D | E | F | G max | G min | H | H1 | J | K | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FR-08 | 210 | 105 | 170 | 133.4 | 5 | 57 | 26 | 6 | 42.5 | 36 | 10.4 | M20×2.5 | 3~M12 | 20 |
| FR-10 | 254 | 115 | 220 | 171.4 | 5.5 | 64 | 36.5 | 11.5 | 25 | 39 | 15 | M20×2.5 | 3~M16 | 22.5 |
| Spec Model | M | M1 | N | P | Q max | Q min | R | S | T(H7) | U | V | V1 | W | W1 | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FR-08 | 38 | 18 | 82 | 2 | 68 | 64 | 10 | 7.7 | 12 | 26 | 16 | 3 | 35 | 7 | m12 |
| FR-10 | 40 | 19 | 102 | 2.6 | 82 | 78 | 10 | 11.3 | 15 | 32 | 18 | 3 | 40 | 7 | m14 |
Subject to technology changes without prior information
Non-standard requirements can be made
