| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 3J-05,3J-06,3J-08,3J-10,3J-12, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 3J FINGER POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power operated chucks |
||

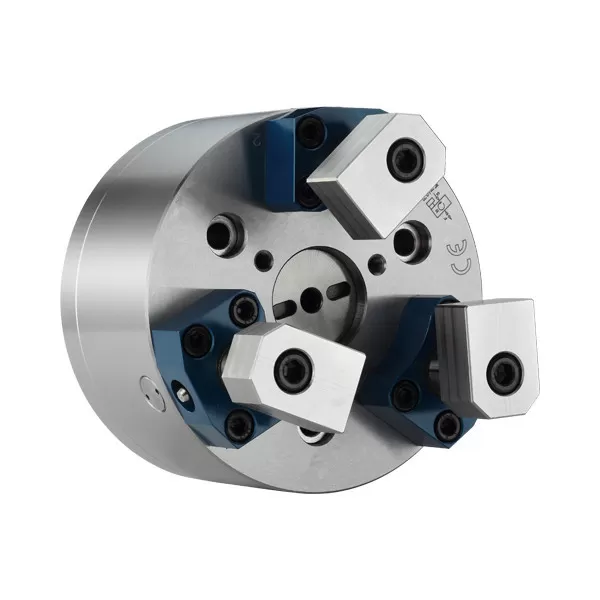

3J FINGER POWER CHUCK
Brand:NTH
Prevent deformation of workpiece for gripping the terminal surface,suitable for thin workpiece process.
The compensating mechanism of gripping that can grasp the workpieces of the irregular surface.
Additional check device able to install in the center of chuck.
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| 3J-05 | 12 | 8 | 53 | 25 | 7.5(765) |
| 3J-06 | 12 | 8 | 79 | 55 | 9.0(918) |
| 3J-08 | 12 | 8 | 106 | 75 | 18.0(1835) |
| 3J-10 | 12 | 8 | 150 | 119 | 18.0(1835) |
| 3J-12 | 12 | 8 | 200 | 169 | 18.0(1835) |
| Spec Model | Max clamping force kgf | Max RPM | I kg*m2 | Weight kg | Matched cylinders | Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 3J-05 | 6.0(612) | 4000 | 0.02 | 11 | S-100R/SNK-100 | 1.0(10) |
| 3J-06 | 7.5(765) | 4000 | 0.04 | 12 | S-100R/SNK-100 | 1.2(12) |
| 3J-08 | 16.5(1680) | 3500 | 0.13 | 23 | S-100R/SNK-100 | 2.5(25) |
| 3J-10 | 16.5(1680) | 3500 | 0.3 | 33 | S-100R/SNK-100 | 2.5(25) |
| 3J-12 | 16.5(1680) | 3000 | 0.56 | 44 | S-100R/SNK-100 | 2.5(25) |

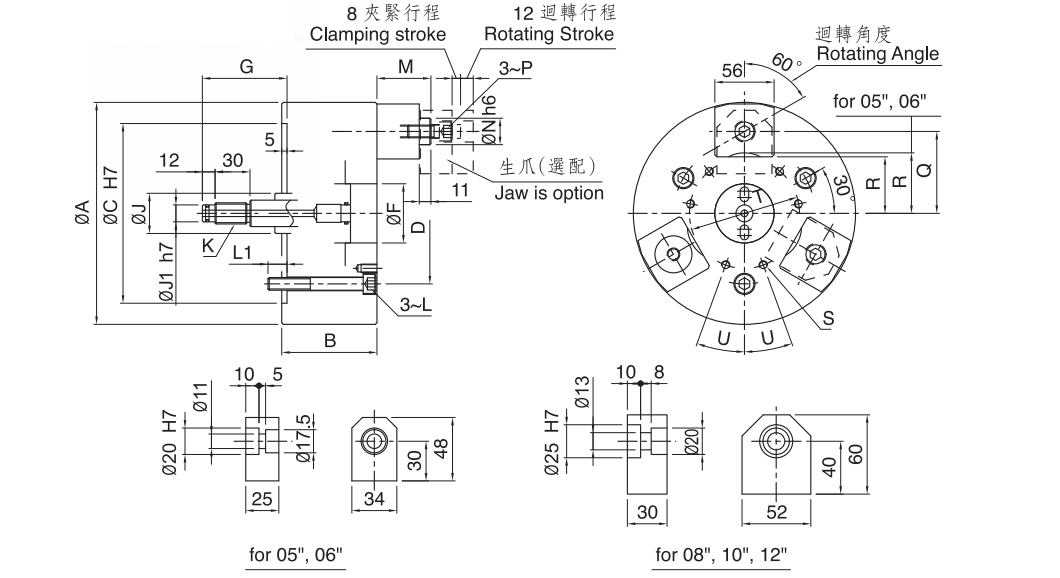

| Spec Model | A | B | C | D | F | G Max | G Min | J | J1 | K |
|---|---|---|---|---|---|---|---|---|---|---|
| 3J-05 | 135 | 86 | 110 | 82.6 | 40 | 75 | 55 | 25 | 10 | M12×1.75 |
| 3J-06 | 165 | 86 | 140 | 104.8 | 45 | 75 | 55 | 28 | 14 | M16×2 |
| 3J-08 | 210 | 90 | 170 | 133.4 | 56 | 80 | 60 | 38 | 16 | M20×2.5 |
| 3J-10 | 254 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20×2.5 |
| 3J-12 | 304 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20×2.5 |
| Spec Model | L | L1 | M Max | M Min | N | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3J-05 | M10 | 15 | 56 | 36 | 20 | M10 | 42.5 | 27 | 3-M6 | 50 | - |
| 3J-06 | M10 | 15 | 56 | 36 | 20 | M10 | 57.5 | 40 | 3-M8 | 64 | 20° |
| 3J-08 | M12 | 18 | 71 | 51 | 25 | M12 | 77.5 | 53.5 | 6-M8 | 104 | 20° |
| 3J-10 | M16 | 24 | 71 | 51 | 25 | M12 | 99.5 | 75.5 | 6-M8 | 140 | 20° |
| 3J-12 | M16 | 24 | 71 | 51 | 25 | M12 | 124.5 | 100.5 | 6-M8 | 190 | 20° |
Subject to technology changes without prior information
Non-standard requirements can be made
