| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 3E-05,3E-06,3E-08 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 3E EXPANSIBLE PULL LOCK POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power collet chuck |
||

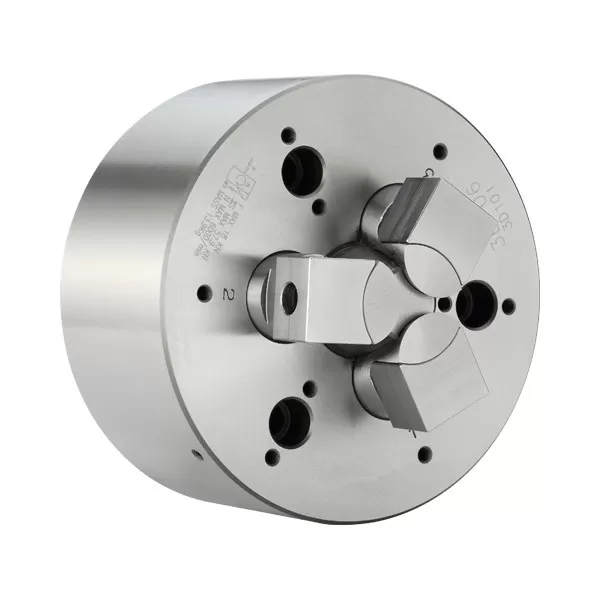

3E EXPANSIBLE PULL LOCK POWER CHUCK
Brand:NTH
Expansible Pull Lock Power Chuck
Suitable for internal gripping
Radial clamp and axial pull down at the same time,keep the workpiece attaching close to the base surface of the chuck.
Almost no workpiece uplifting displacement.
With high precision and stability that chuck suitable for end process.
Air-tight pressure detect function is optional.
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max chucking Dia. mm | Min chucking Dia. mm | Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| 3E-05 | 6 | 3 | 83 | 29 | 13.0(1325) |
| 3E-06 | 10 | 5 | 110 | 44 | 18.0(1835) |
| 3E-08 | 10 | 5 | 150 | 50 | 25.0(2530) |
| Spec Model | Max clamping force kgf | Max RPM | I kg*m2 | Weight kg | Matched cylinders | Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 3E-05 | 42.0(4280) | 7000 | 0.018 | 7.2 | S-100R | 1.8(18.5) |
| 3E-06 | 58.0(5910) | 6000 | 0.042 | 13.6 | S-100R | 2.5(25.6) |
| 3E-08 | 80.0(8150) | 5000 | 0.14 | 26.5 | S-125R | 2.2(22.5) |

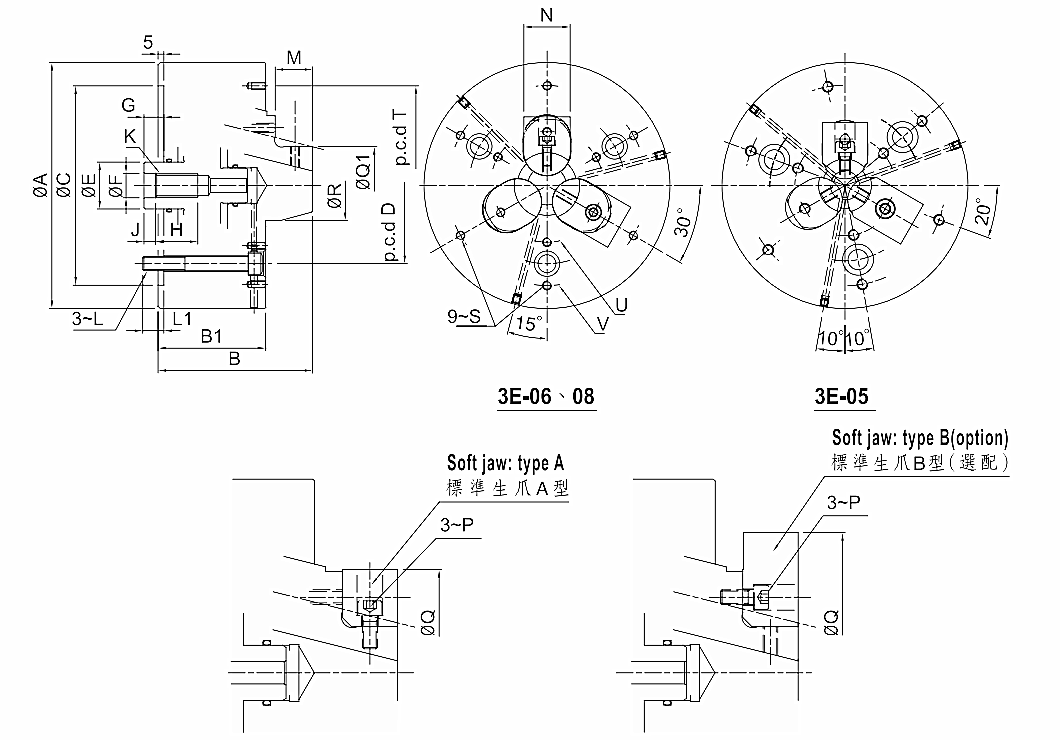

| Spec Model | A | B | B1 | C(H6) | D | E | F(H8) | G max | G min | H | J | K | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3E-05 | 135 | 98 | 72 | 110 | 82.6 | 25 | 18 | 18 | 12 | 25 | 8 | M16 | M10 | 15 |
| 3E-06 | 165 | 112 | 80 | 140 | 104.8 | 35 | 18 | 22 | 12 | 30 | 8 | M16 | M10 | 16 |
| 3E-08 | 210 | 132 | 90 | 170 | 133.4 | 40 | 21 | 22 | 12 | 36 | 10 | M20 | M12 | 18 |
| Spec Model | M | N | P | Type A (Q max) | Type A (Q min) | Type B (Q max) | Type B (Q min) | Q1 (Q max) | Q1 (Q min) | R | S | T | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3E-05 | 20 | 25 | M6 | 68 | 50 | 83 | 67 | 50 | 29 | 25 | M6×12 | 110 | 55 | 110 |
| 3E-06 | 23 | 31 | M6 | 90 | 70 | 110 | 89 | 70 | 44 | 40 | M6×12 | 130 | 76 | 134 |
| 3E-08 | 30 | 31 | M6 | 110 | 90 | 150 | 108 | 90 | 50 | 49 | M6×12 | 170 | 100 | 170 |
Subject to technology changes without prior information
Non-standard requirements can be made
