| Product Name: | 3A-K PULL LOCK POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Usage: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Size: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| High Light: | lathe jaw chuck,power collet chuck |
||

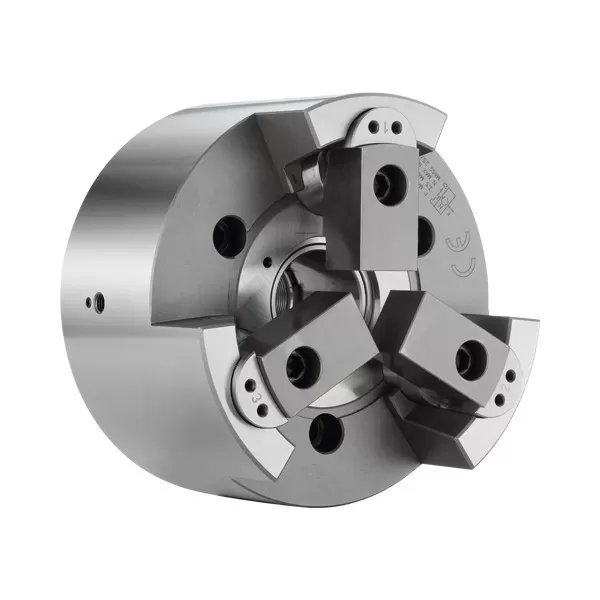

3A-K PULL LOCK POWER CHUCK
Brand:NTH
It‵s a Pin-Arbor Draw Down type 3-jaw thru-hole power chuck.
High radial gripping force and high accuracy.
Suitable for heavy machining.
Size unit: mm
| Spec Model |
Plunger stroke mm |
Jaw stroke Dia. mm |
Max chucking Dia. mm |
Min chucking Dia. mm |
Max.D.B.Pull kgf |
|---|---|---|---|---|---|
| 3A-205K | 6 | 3 | 84 | 15 | 13.9(1420) |
| 3A-206K | 10 | 5 | 105 | 24 | 18.0(1835) |
| 3A-208K | 10 | 5 | 132 | 25 | 25.0(2550) |
| 3A-210K | 10 | 5 | 163 | 34 | 35.0(3570) |
| 3A-212K | 10 | 5 | 210 | 81 | 35.0(3570) |
| Spec Model |
Max clamping force kgf |
Max RPM | I kg*m2 |
Weight kg |
Matched cylinders | Max Pressure Mpa(kgf) |
|---|---|---|---|---|---|---|
| 3A-205K | 39.7(4050) | 8000 | 0.018 | 6.8 | SLN-100 | 2.0(20) |
| 3A-206K | 58.0(5910) | 7000 | 0.055 | 14.9 | SLAN-100 | 2.5(25) |
| 3A-208K | 80.0(8150) | 6000 | 0.14 | 25.8 | SLAN-125 | 2.2(22) |
| 3A-210K | 100.0(10100) | 4500 | 0.36 | 44 | SLAN-125 | 3.1(31) |
| 3A-212K | 100.0(10100) | 3600 | 0.68 | 63.8 | SLAN-125 | 3.1(31) |
|

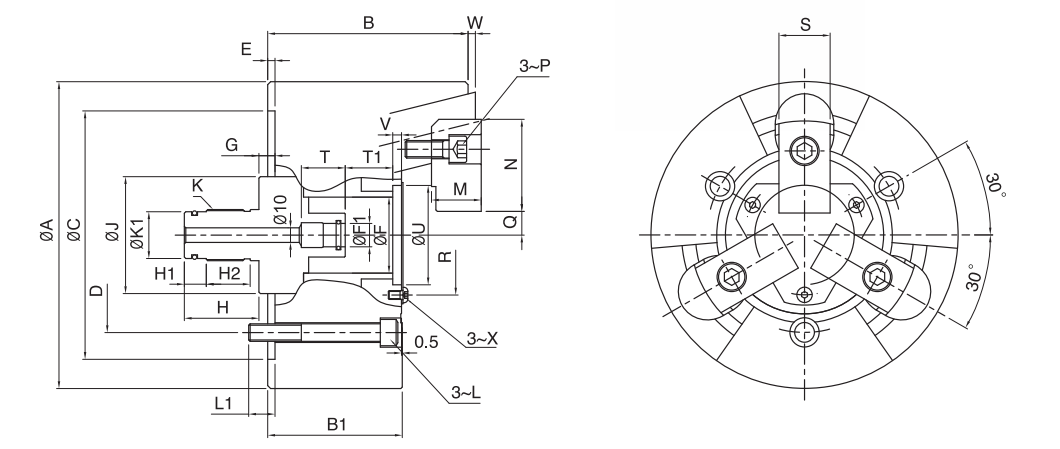

Spec
Model |
A | B | B1 | C(H6) | D | E | F | F1(h8) | G max | G min | H | H1 | H2 | J | K | K1 | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3A-205K | 135 | 84.5 | 63 | 110 | 82.6 | 4 | 35 | 14 | 16 | 10 | 42 | 12 | - | 50 | M25×1.5 | 22 | M10 |
| 3A-206K | 168 | 118 | 80 | 140 | 104.8 | 5 | 45 | 16 | 20 | 10 | 48 | 12 | 30 | 60 | M28×1.5 | 26 | M10 |
| 3A-208K | 210 | 137 | 92 | 170 | 133.4 | 5 | 52 | 16 | 21 | 11 | 51 | 15 | 30 | 80 | M35×1.5 | 32 | M12 |
| 3A-210K | 254 | 152 | 102 | 220 | 171.4 | 5 | 75 | 16 | 25 | 15 | 51 | 15 | 30 | 105 | M38×1.5 | 35 | M16 |
| 3A-212K | 304 | 157 | 102 | 220 | 171.4 | 5 | 100 | 16 | 25 | 15 | 51 | 15 | 30 | 135 | M45×2 | 42 | M16 |
|
Spec
Model |
L1 | M | N | P | Q max | Q min | R | S | T | T1 | U(H6) | V | W max | W min | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3A-205K | 15 | 20 | 41.5 | M8 | 13.25 | 11.75 | 55 | 24 | 25 | 15.5 | 45 | 5 | 3 | -3 | M5 |
| 3A-206K | 16.5 | 30 | 50 | M10 | 15.75 | 13.25 | 72 | 30 | 30 | 26.5 | 58 | 6 | 5 | -5 | M5 |
| 3A-208K | 18 | 34 | 63 | M12 | 16.25 | 13.75 | 82 | 35 | 30 | 32.5 | 68 | 6 | 5 | -5 | M6 |
| 3A-210K | 23 | 39 | 74 | M14 | 20.75 | 18.25 | 107 | 40 | 30 | 36.5 | 93 | 6 | 5 | -5 | M8 |
| 3A-212K | 26 | 44 | 74 | M14 | 44.25 | 41.75 | 130 | 40 | 30 | 36.5 | 114 | 6 | 5 | -5 | M10 |
Subject to technology changes without prior information
Non-standard requirements can be made
