| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 3AT SERIES |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 3AT 3 JAW PULL LOCK POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power operated chucks |
||

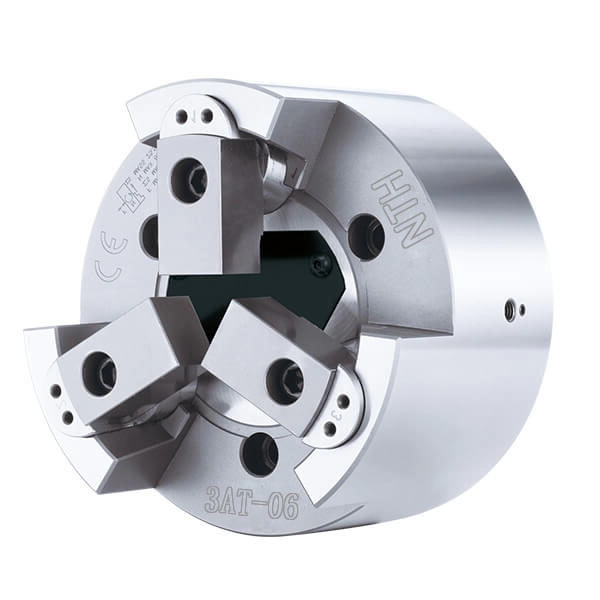

3AT 3 JAW PULL LOCK POWER CHUCK
It‵s a pin-arbor draw down type 3 jaw close center power chuck.
Suitable for heavy duty machining.
High accuracy and high rotary speed and Strong gripping force.
Production Catalogue Download:3AT SERIES.pdf
(Size unit: mm)
| Spec/Model | Plunger stroke (mm) | Jaw stroke (Dia) (mm) | Max clamping dia (mm) | Min clamping dia (mm) | Max.D.B.Pull KN(kgf) |
| 3AT-06A5 | 15 | 7.8 | 100 | 25 | 18.0(1835) |
| 3AT-08A5 | 20 | 10.3 | 130 | 25 | 25.0(2550) |
| 3AT-08A6 | 20 | 10.3 | 130 | 25 | 25.0(2550) |
| 3AT-10A6 | 20 | 10.3 | 160 | 35 | 35.0(3570) |
| 3AT-10A8 | 20 | 10.3 | 160 | 35 | 35.0(3570) |
| Spec/ Model | Max clamping force KN(kgf) | Max RPM | Inertia moment kg*m2 | Weight kg | Matched cylinders | Max.pressure Mpa(kgf/cm2) |
| 3AT-06A5 | 58.0(5910) | 6000 | 0.05 | 17 | SLN-100/SLAN-100 | 2.0(20) |
| 3AT-08A5 | 80.0(8150) | 5000 | 0.14 | 29 | SLN-125/SLAN-125 | 2.5(25) |
| 3AT-08A6 | 80.0(8150) | 5000 | 0.14 | 27.5 | SLN-125/SLAN-125 | 2.2(22) |
| 3AT-10A6 | 100.0(10100) | 4000 | 0.36 | 53.5 | SLN-125/SLAN-125 | 3.1(31) |
| 3AT-10A8 | 100.0(10100) | 4000 | 0.36 | 51.5 | SLN-125/SLAN-125 | 3.1(31) |

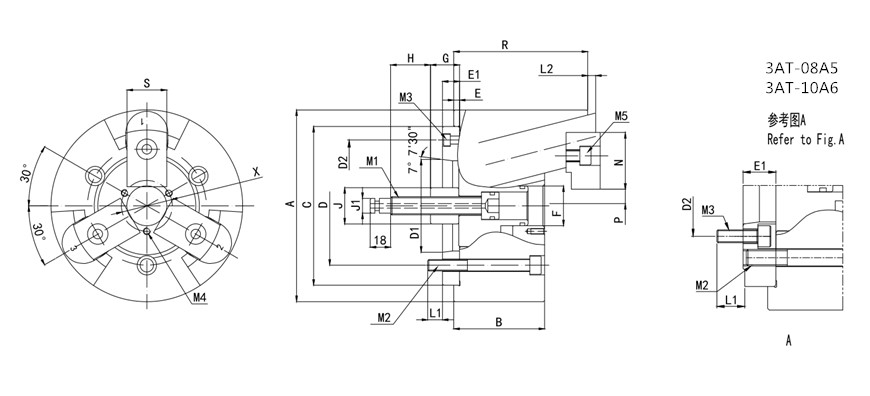

| Spec/Model | A | B | B1 | C(H6) | D | D1 | D2 | E | E1 | F | G max | G min | H |
| 3AT-06A5 | 168 | 88 | 128 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 35 | 30 | 15 | 35 |
| 3AT-08A5 | 210 | 100 | 145 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 45 | 27 | 7 | 38 |
| 3AT-08A6 | 210 | 100 | 145 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 45 | 27 | 7 | 38 |
| 3AT-10A6 | 254 | 110 | 160 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 55 | 31 | 11 | 41 |
| 3AT-10A8 | 254 | 110 | 160 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 55 | 31 | 11 | 41 |
| Spec/ Model | J | J1 | L1 | L2 min | M1 | M2 | M3(Ad.) | M4 | M5 | N | P min | S | X |
| 3AT-06A5 | 32 | 13 | 13 | 8 | M16 | 3-M10 | 3-M6 | 3-M5 | 3-M10 | 50 | 12.5 | 30 | 50 |
| 3AT-08A5 | 37 | 16 | 17 | 9 | M20 | 3-M12 | 6-M10 | 3-M6 | 3-M12 | 63 | 12.5 | 35 | 60 |
| 3AT-08A6 | 37 | 16 | 17 | 9 | M20 | 3-M12 | 3-M6 | 3-M6 | 3-M12 | 63 | 12.5 | 35 | 60 |
| 3AT-10A6 | 48 | 20 | 19 | 9 | M24 | 3-M16 | 6-M12 | 3-M6 | 3-M14 | 74 | 17.5 | 40 | 70 |
| 3AT-10A8 | 48 | 20 | 19 | 9 | M24 | 3-M16 | 3-M8 | 3-M6 | 3-M14 | 74 | 17.5 | 40 | 70 |
Note:Subject to technology changes without prior information
Non-standard requirements can be made
