| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | 2SL-05 A4,2SL-06 A5,2SL-08 A5,2SL-08 A6, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 2SL JAW PULL LOCK POWER CHUCK | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | power operated chucks, power collet chuck |
||

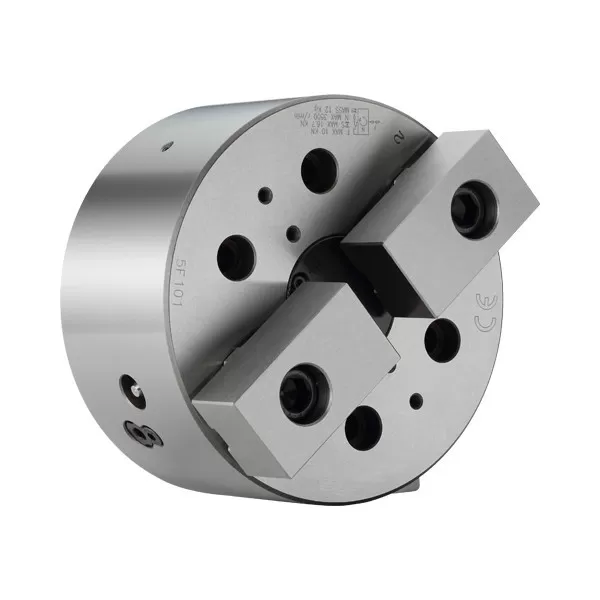

2SL JAW PULL LOCK POWER CHUCK
Brand:NTH
It‵s adopted the structure of slanting post with pulling back type.high precision,strong clamping force.
The slanting post of the chuck pull the workpiece back to position place,and then clamping it,therefore,the chuck can ensure the accuracy of radial size and axial size.
This chuck is applicable for clamping the special shape workpiece.especially,itˊs applicable for the workpiece which need high precision requirements on squareness and parallelism.
Re:This chuck is only for clamping out diameter,the soft jaws need chanqing when the clamping size is changed.
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max.D.B.Pull kgf | Max clamping force kgf |
|---|---|---|---|---|
| 2SL-05 A4 | 12 | 6.2 | 7.9(800) | 13.4(1400) |
| 2SL-06 A5 | 20 | 10.3 | 11.8(1200) | 20.6(2100) |
| 2SL-08 A5 | 20 | 10.3 | 17.6(1800) | 31.4(3200) |
| 2SL-08 A6 | 20 | 10.3 | 17.6(1800) | 31.4(3200) |
| Spec Model | Max RPM | Gripping range mm | I kg*m2 | Weight Kg |
|---|---|---|---|---|
| 2SL-05 A4 | 4000 | 6-80 | 0.06 | 7 |
| 2SL-06 A5 | 3500 | 15-100 | 0.19 | 13.5 |
| 2SL-08 A5 | 3000 | 40-160 | 0.57 | 24.5 |
| 2SL-08 A6 | 3000 | 40-160 | 0.57 | 25.5 |

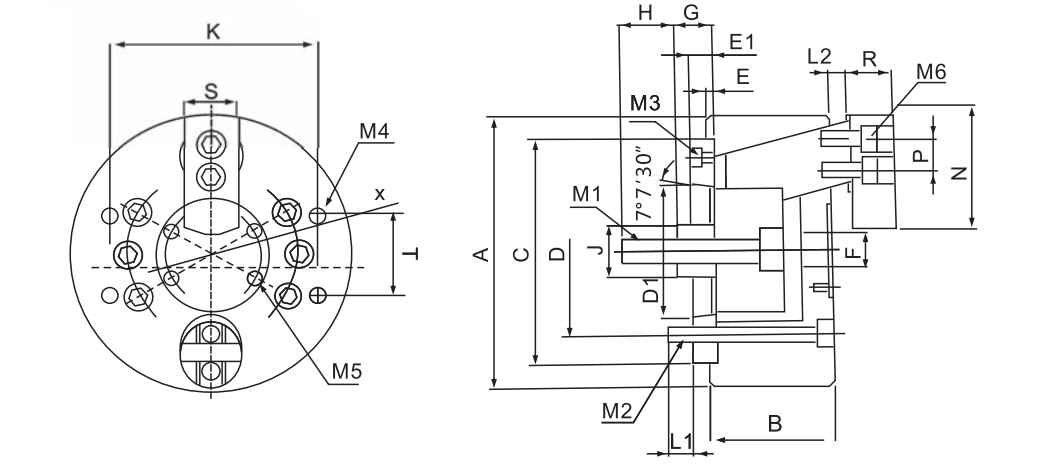

| Spec Model | A | B | C(H6) | D | D1 | E | E1 | F | G max | G min | H | J | K | L1 | L2 Min |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2SL-05 A4 | 130 | 70 | 110 | 82.6 | 63.51 | 5 | 15 | 20 | 20 | 8 | 30 | 28 | 100 | 12 | 7 |
| 2SL-06 A5 | 165 | 80 | 140 | 104.8 | 82.56 | 5 | 15 | 30 | 30 | 10 | 35 | 32 | 132 | 13 | 8 |
| 2SL-08 A5 | 210 | 85 | 170 | 133.4 | 82.56 | 5 | 17 | 40 | 30 | 10 | 40 | 37 | 160 | 17 | 9 |
| 2SL-08 A6 | 210 | 85 | 170 | 133.4 | 106.38 | 5 | 23 | 40 | 30 | 10 | 40 | 37 | 160 | 17 | 9 |
| Spec Model | M1 | M2 | M3 | M4 | M5 | M6 | N | P | R | S | T | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2SL-05 A4 | M12 | 4-M10 | 4-M16 | 4-M10 | 4-M4 | 4-M8 | 60 | 16 | 30 | 30 | 40 | 35 |
| 2SL-06 A5 | M16 | 6-M10 | 4-M16 | 4-M10 | 4-M5 | 4-M10 | 73 | 23 | 35 | 35 | 48 | 45 |
| 2SL-08 A5 | M20 | 6-M12 | 4-M16 | 4-M10 | 4-M6 | 4-M12 | 82 | 26 | 40 | 40 | 60 | 55 |
| 2SL-08 A6 | M20 | 6-M12 | 4-M16 | 4-M10 | 4-M6 | 4-M12 | 82 | 26 | 40 | 40 | 60 | 55 |
Subject to technology changes without prior information
Non-standard requirements can be made
