| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TL-204,TL-205,TL-206,TL-208,TL-210,TL-212, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TL 2-JAW SOLID POWER CHUCKS | Material: | Forged Steel |
|---|---|---|---|
| Function: | Gripping/Fixture | Feature: | High Precision/High Quality |
| Usage: | Refer To The Specification | Service: | OEM/ODM Is Acceptable |
| Highlight: | lathe jaw chuck, power operated chucks |
||

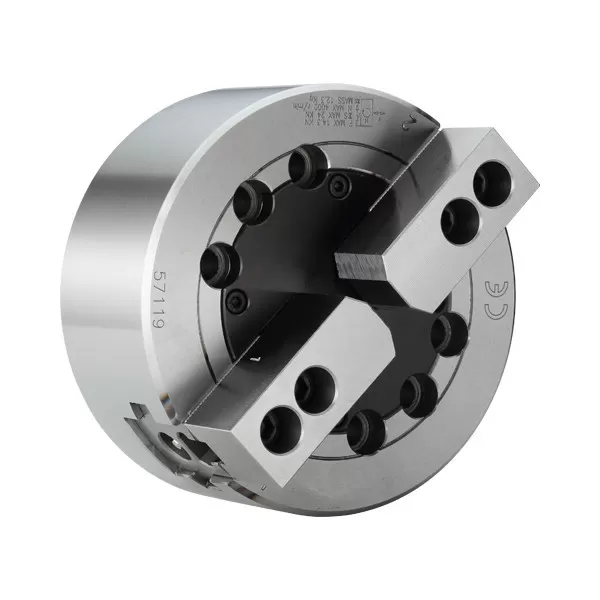

TL 2-JAW SOLID POWER CHUCKS
Brand:NTH
Size unit: mm
| Spec Model | Plunger stroke mm | Jaw stroke Dia. mm | Max RPM | Max.pull force kgf(KN) | Max gripping force KN |
|---|---|---|---|---|---|
| TL-204 | 15 | 6.4 | 6000 | 540(5.3) | 1500(14.7) |
| TL-205 | 15 | 6.4 | 5500 | 540(5.3) | 1700(16.7) |
| TL-206 | 20 | 8.5 | 5000 | 1220(12) | 3460(34) |
| TL-208 | 21 | 8.8 | 4000 | 1630(16) | 4990(49) |
| TL-210 | 25 | 8.8 | 3500 | 1930(19) | 7140(70) |
| TL-212 | 30 | 10.5 | 3000 | 2750(27) | 10300(101) |
| Spec Model | Max.Oil pressure kgf/cm2(Mpa) | Weight Kg | Matching cylinder | Gripping range mm |
|---|---|---|---|---|
| TL-204 | 15(1.5) | 3.8 | S-65 | Ø5-Ø110 |
| TL-205 | 15(1.5) | 5.8 | S-80 | Ø14-Ø135 |
| TL-206 | 17(1.7) | 11.1 | S-100 | Ø9-Ø165 |
| TL-208 | 16(1.9) | 21.3 | S-125 | Ø12-Ø210 |
| TL-210 | 19(1.9) | 32.6 | S-125 | Ø15-Ø254 |
| TL-212 | 20(2.0) | 57 | S-150 | Ø20-Ø304 |

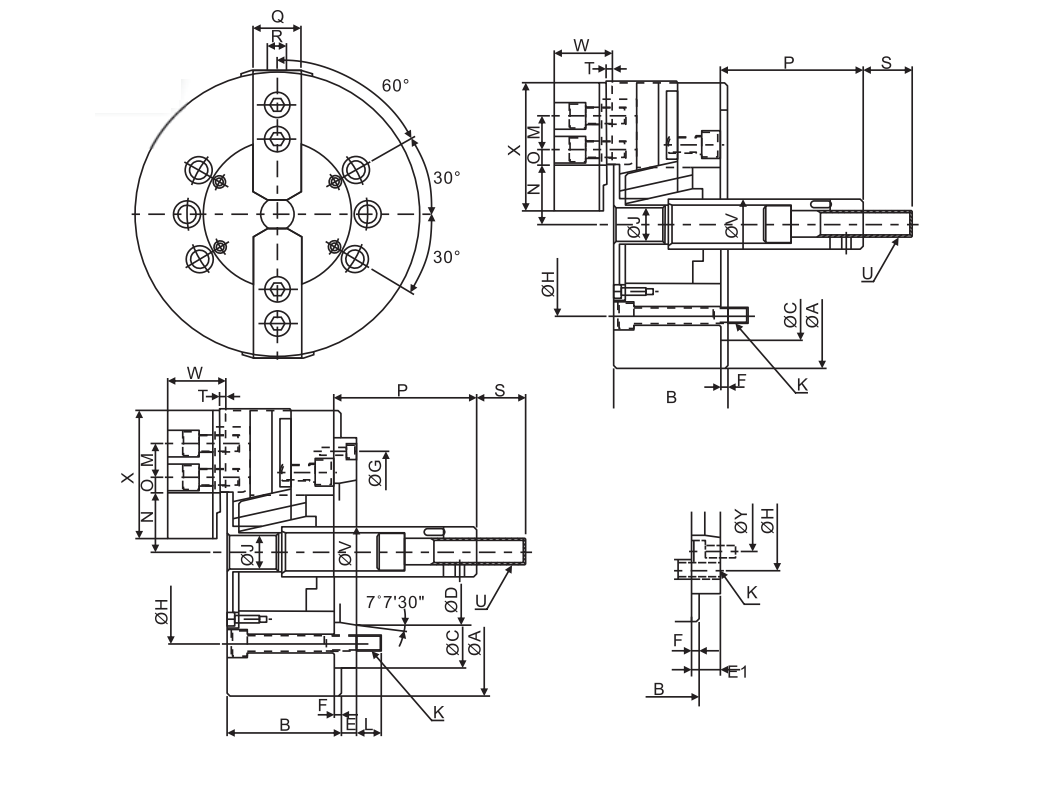

| Spec Model | Spindle Nose | A | B | C(h6) | D | E | E1 | F | G | H | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-204 | - | 110 | 52 | 60 | - | - | - | - | - | 80 | - | 4-M8×1.25P | 12 | 14 |
| TL-205 | A4 | 135 | 55 | 80 | 63.513 | - | - | 7 | - | 100 | - | 4-M8×1.25P | 14 | 14 |
| TL-206 | A5 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | 21 | 6-M10×1.5P | 14 | 20 |
| TL-208 | A6(A5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | 25 | 6-M12×1.75P | 18 | 25 |
| TL-210 | A8(A6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 |
| TL-212 | A8 | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 | 34 | 6-M16×2P | 25 | 30 |
| Spec Model | Nmax | Nmin | Omax | Omin | Pmax | Pmin | Q | R | S | T | U | V | W | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-204 | 23.3 | 20.1 | 11.3 | 8.3 | 18 | 18 | 23 | 10 | 25 | 4 | M10×1.5 | 26 | 24 | 52 | - |
| TL-205 | 30.4 | 27.2 | 13.5 | 6 | 9 | -6 | 25 | 10 | 35 | 4 | M12×1.75 | 28 | 31 | 62 | - |
| TL-206 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 | 4 | M16×2P | 34 | 39 | 73 | 116 |
| TL-208 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 | 5 | M20×2.5P | 38 | 42 | 95 | 104.8 |
| TL-210 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 | 5 | M20×2.5P | 45 | 46 | 110 | 133.4 |
| TL-212 | 60.7 | 55.45 | 48.6 | 12.6 | 163 | 133 | 50 | 18 | 36 | 5 | M20×2.5P | 50 | 54 | 129 | 190 |
Subject to technology changes without prior information
Non-standard requirements can be made
Production Catalogue Download:
