Place of Origin:	CHINA
Brand Name:	NTH
Model Number:	T-204,T-205 A4,T-206 A5,T-208 A5,T-208 A6,T-210 A6,T-210 A8,T-212 A8,T-215 A11,

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Good and firm package is suitable for sea and air shipping
Delivery Time:	3 work days available
Payment Terms:	T/T, Western Union
Supply Ability:	1000 sets/M

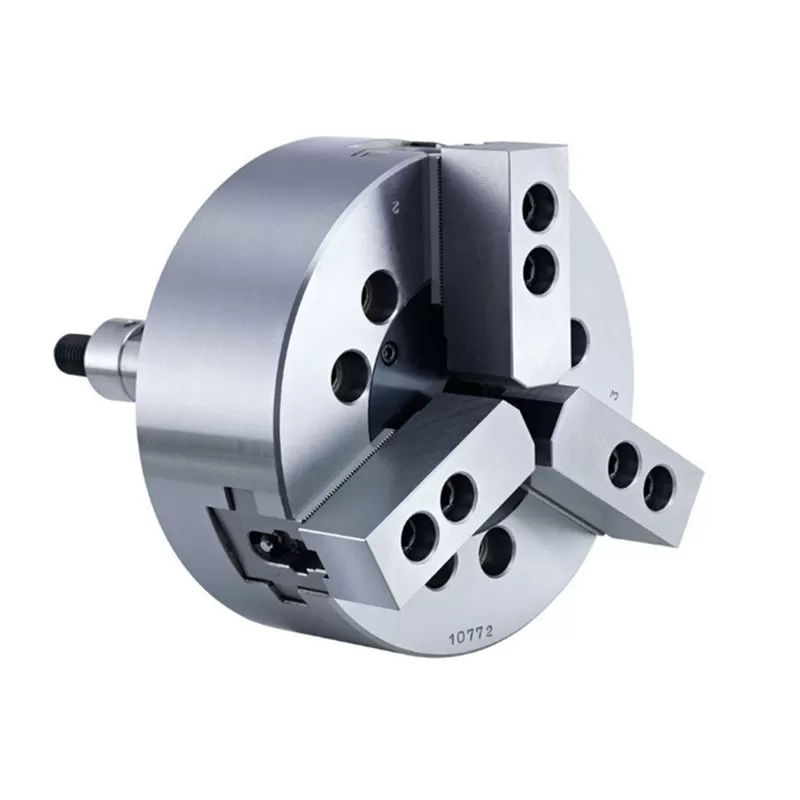

Product Name:	T 3-JAW NON THRU POWER CHUCK	Material:	Forged Steel
Usage:	Gripping/Fixture	Feature:	High Precision/High Quality
Size:	Refer To The Specification	Service:	OEM/ODM Is Acceptable
High Light:	power operated chucks , power collet chuck

Spec Model	Plunger stroke mm	Jaw stroke Dia. mm	Max chucking Dia. mm	Min chucking Dia. mm	Max.D.B.Pull kgf
T-204	15	6.4	110	7	940
T-205	15	6.4	135	12	1190
T-206 A5	20	8.5	169	15	1470
T-208 A5	21	8.8	210	13	2360
T-208 A6	21	8.8	210	13	2360
T-210 A6	25	8.8	254	31	2900
T-210 A8	25	8.8	254	31	2900
T-212 A8	30	10.5	304	34	3740
T-215 A11	35	16	381	50	4790

Spec Model	Max clamping force kgf	Max RPM	I kg*m2	Weight kg	Weight(Ad.) kg	Matched cylinders
T-204	1930	8000	0.01	3.8	-	S-65
T-205	2440	7000	0.02	6.5	-	S-80
T-206 A5	3870	6000	0.06	11.5	13.3	S-100
T-208 A5	5840	5000	0.17	21.3	24.2	S-125
T-208 A6	5840	5000	0.17	21.3	22.4	S-125
T-210 A6	7540	4200	0.31	33.5	40.5	S-125
T-210 A8	7540	4200	0.31	33.5	39	S-125
T-212 A8	9780	3300	0.7	59.7	52.7	S-150
T-215 A11	12200	2500	2.23	115	122	S-200

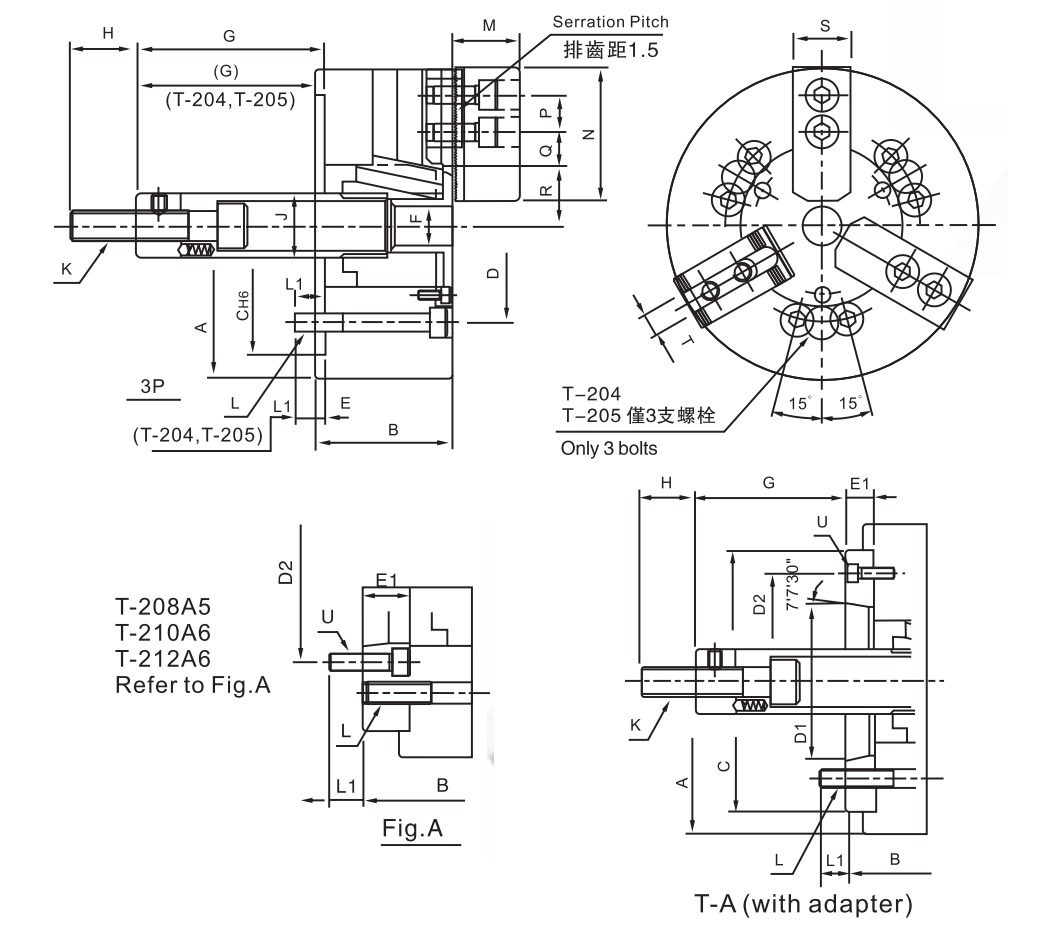

Spec Model	K max	L	L1	L1(Ad.)	M	N	P	Q max	Q min	R max	R min	S	T	U
T-204	M10×1.5	3-M8	12	-	24	52	14	11.3	8.3	23.3	20.1	23	10	-
T-205	M12×1.75	3-M8	14	-	31	62	14	13.5	6	30.4	27.2	25	10	3-M6
T-206 A5	M16×2	6-M10	14	14	37	73	20	18	7.5	37.8	33.5	31	12	3-M6
T-208 A5	M20×2.5	6-M12	20	18	38	95	25	22.3	11.8	46.3	41.9	35	14	6-M10
T-208 A6	M20×2.5	6-M12	20	18	38	95	25	22.3	11.8	46.3	41.9	35	14	3-M6
T-210 A6	M20×2.5	6-M16	18	18	43	110	30	30.8	11.3	51.1	46.7	40	16	6-M12
T-210 A8	M20×2.5	6-M16	18	25	43	110	30	30.8	11.3	51.1	46.7	40	16	3-M8
T-212 A8	M20×2.5	6-M16	18	25	51	130	30	48.8	12.3	61	55.8	50	18	3-M8
T-215 A11	M30×2.5	6-M20	30	33	66	165	43	48.8	23.3	77.5	69.5	62	25.5	4-M10

Spec Model	A	B	B (Ad.)	C(H6)	D	D1	D2	E	E1	F	Gmax	Gmax(Ad.)	Gmin	Gmin(Ad.)	H	J
T-204	110	52	-	60	80	-	-	6	-	26	18	-	3	-	25	26
T-205	135	55	-	80	100	-	-	7	15	33	9	-	-6	-	35	28
T-206 A5	169	74	84	140	104.8	82.56		5	15	45	101.5	86.5	81.5	66.6	36	34
T-208 A5	210	85	103	170	133.4	82.56	104.8	5	23	52	127	104	106	83	36	38
T-208 A6	210	85	97	170	133.4	106.38	150	5	17	52	127	110	106	89	36	38
T-210 A6	254	89	109	220	171.5	106.38	133.4	5	25	75	158	133	133	108	36	45
T-210 A8	254	89	102	220	171.5	139.72	133.4	5		75	158	140	133	115	36	45
T-212 A8	304	106	118	220	171.5	139.72		5		91	163	145	133	115	36	50
T-215 A11	381	114	130	300	235	196.87	260	6	22	117.5	104	82	69	47	55	60

	Omatei Mechanical And Electrical Equipment Co., Ltd
	Address: Bldg 20, No.511 Huangpujiang North Rd., Kunshan China,215300
	86-512-36868656
	omatei@aliyun.com

NTH BRAND 3 JAWS NON THRU POWER CHUCK WITH ADAPTER

power operated chucks
